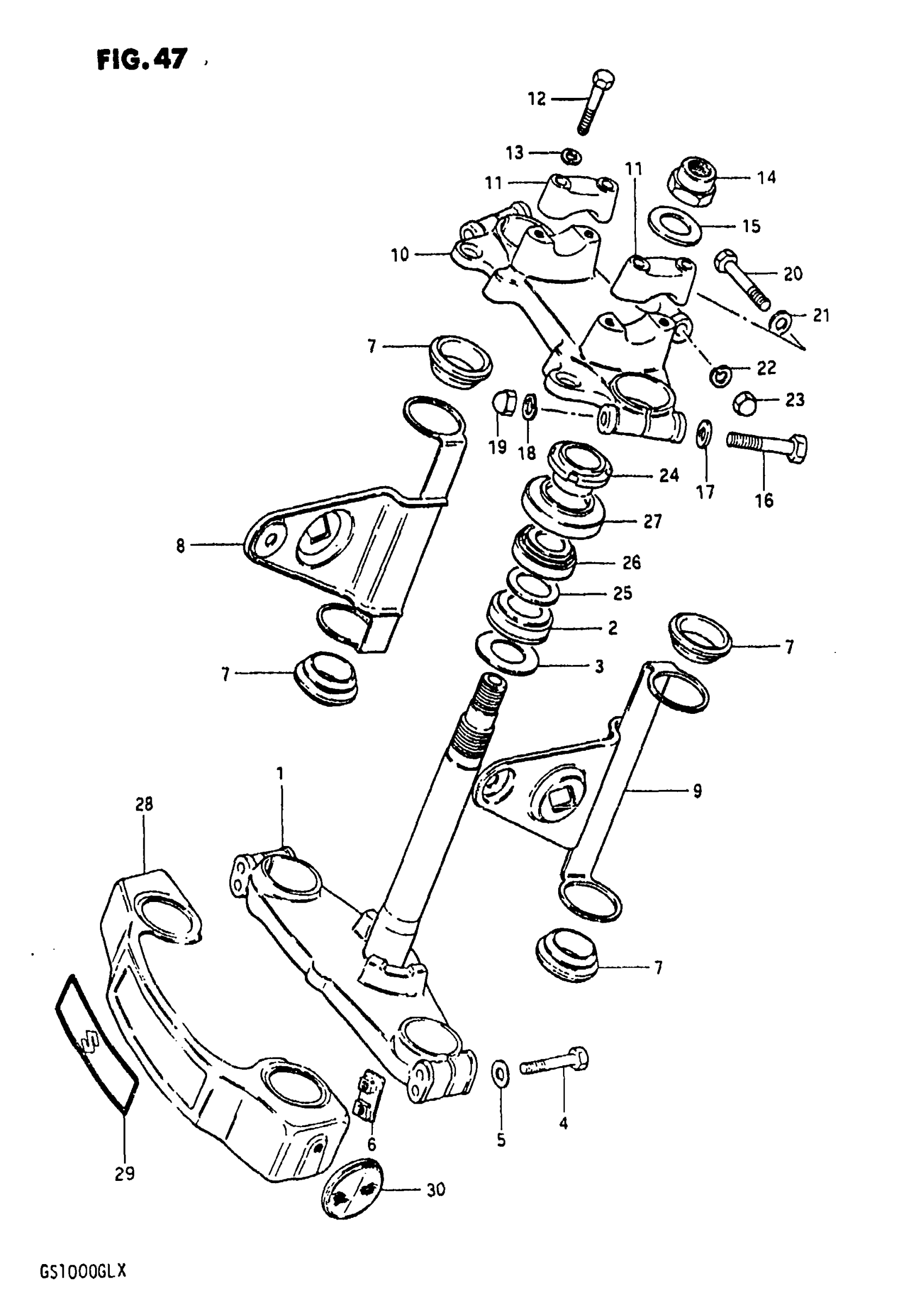

Suzuki GS1000GL (1981) STEERING STEM (MODEL X) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | BLACK; Includes Item(s) 2 - 3 This part replaces 51410-49270-291.

51410-49280

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

3

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

4

BOLT This part replaces 01107-08558.

01500-08557

$3.16

5

WASHER This part replaces 08322-21088.

08322-01087

$2.13

6

NUT

51458-49000

Unavailable

7

CUSHION, BRACKET This part replaces 51553-49000.

51553-34300

$4.52

8

BRACKET, HEAD LAMP RH

51530-49270

Unavailable

9

BRACKET, HEAD LAMP LH

51540-49270

Unavailable

10

STEM HEAD, STEERING | BLACK

51311-49270-291

Unavailable

11

CLAMP, HANDLE BAR UPPER | BLACK

56211-29320-291

$15.51

12

BOLT

01204-08357

$2.09

13

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

14

NUT

51353-45000

$9.69

15

WASHER

51356-31700

Unavailable

16

BOLT This part replaces 01107-10558.

01500-1055A

$3.55

17

WASHER This part replaces 08322-21108.

08322-01107

$2.15

18

LOCK WASHER This part replaces 08321-31108.

08321-01107

$1.84

19

NUT This part replaces 08313-11108.

08313-10107

$2.50

20

BOLT This part replaces 01107-08508.

01500-08507

$3.05

21

WASHER This part replaces 08322-21088.

08322-01087

$2.13

22

.LOCK WASHER This part replaces 08321-31088.

08321-01087

$2.13

23

NUT This part replaces 08313-11088.

08313-10087

$2.28

24

NUT, STEERING STEM

51631-34200

Unavailable

25

WASHER

09160-18002

$2.38

26

BEARING, UPPER

09265-25008

Unavailable

27

SEAL,DUST This part replaces 51643-40500.

51643-40503

$6.15

28

COVER, FRONT FORK This part replaces 51871-45300.

51871-45301

Unavailable

29

EMBLEM, FRONT FORK COVER

68211-45300

Unavailable

30

REFLEX REFLECTOR, FRONT

35950-49080

$17.24
