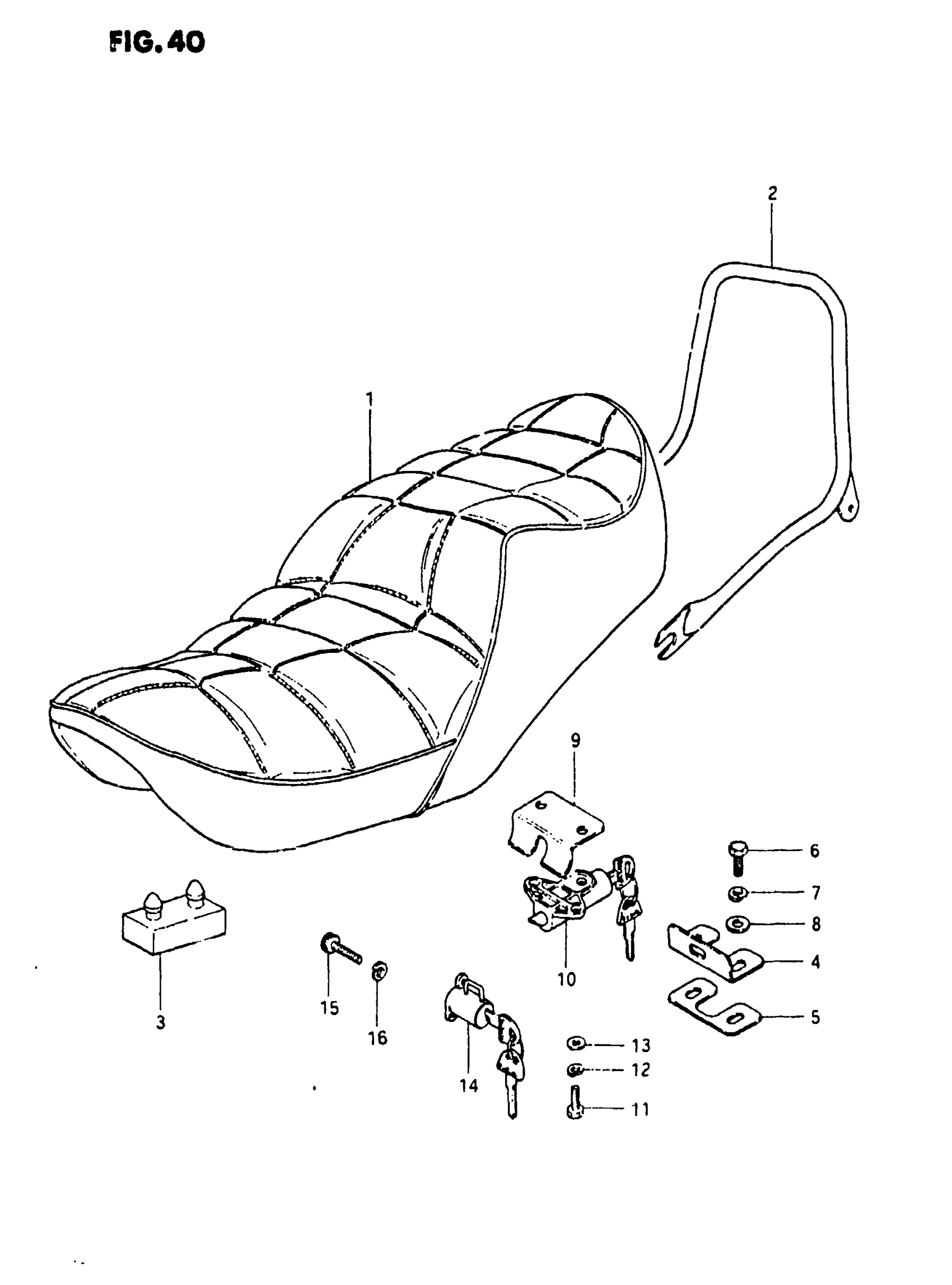

Suzuki GS1000GL (1981) SEAT (MODEL T) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 45100-45300-40N.

45100-45310-43U

Unavailable

2

HANDLE, PILLION RIDER

46210-45300

Unavailable

3

CUSHION

09321-08006

$2.90

4

STRIKER, SEAT LOCK

45213-47200

Unavailable

5

WASHER (8.5X18X1) This part replaces 45217-47200.

09160-08043

$1.83

6

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

7

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

8

WASHER This part replaces 08322-21068.

08322-01067

$2.13

9

GUIDE PLATE

45214-49105

Unavailable

10

LOCK SET, SEAT This part replaces 95700-47810.

95700-47820

Unavailable

11

BOLT This part replaces 01107-06208.

01500-06207

$2.28

12

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

13

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

14

LOCK SET, HELME This part replaces 95700-35821.

95700-49850

Unavailable

15

BOLT This part replaces 09106-06005.

07130-06307

$4.32

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13
