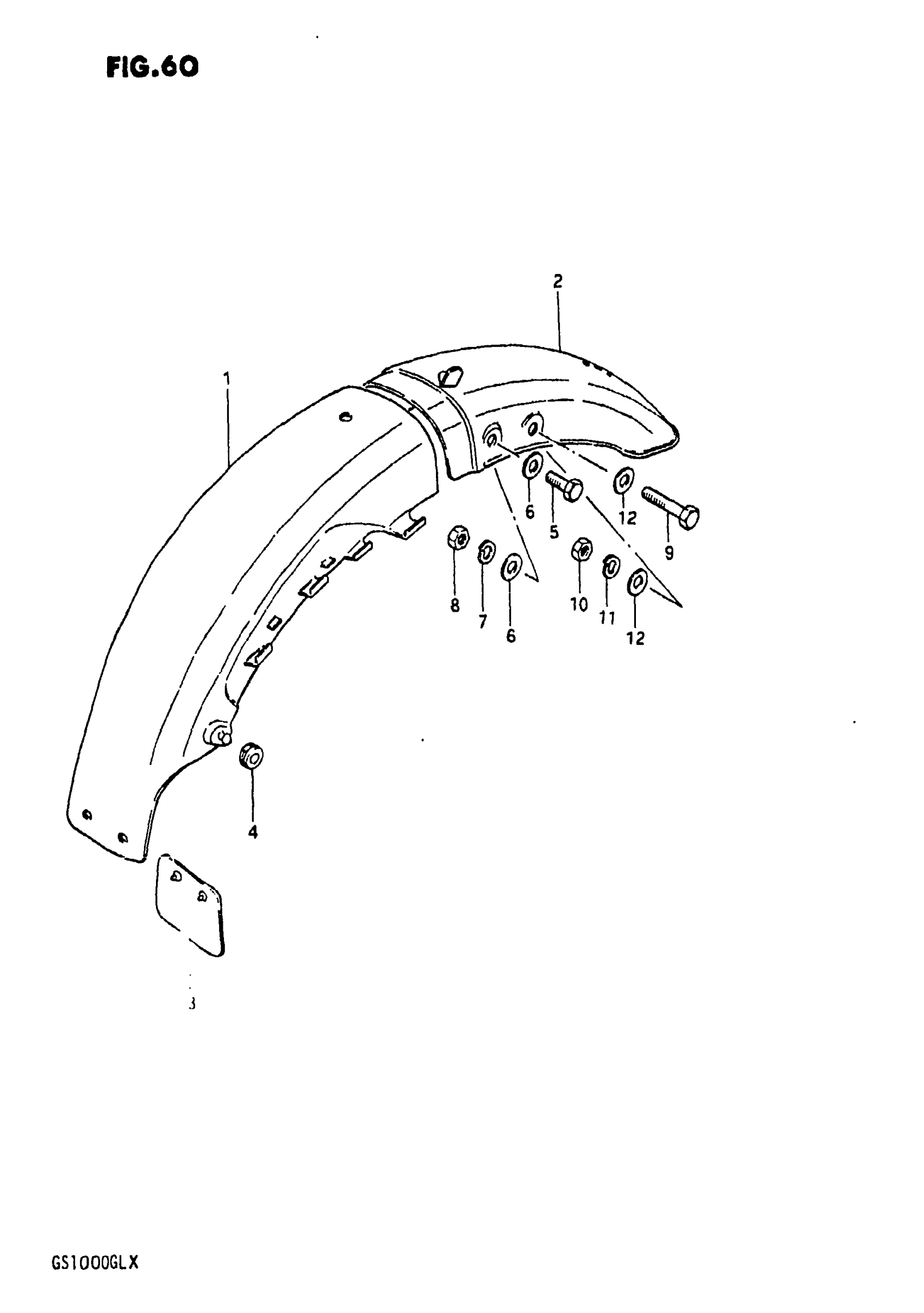

Suzuki GS1000GL (1981) REAR FENDER Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL T This part replaces 63112-49100.

63112-49101

Unavailable

1

BODY,RR FENDER | MODEL X This part replaces 63112-49110.

63112-49004

Unavailable

2

FENDER, REAR | MODEL T

63110-45301

Unavailable

2

FENDER, REAR | MODEL X

63110-45310

Unavailable

3

MUD GUARD, REAR FENDER

63411-31900

Unavailable

4

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

5

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

6

WASHER This part replaces 08322-11088.

08322-01087

$2.13

7

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

8

NUT This part replaces 08310-12088.

08310-00087

$2.13

9

BOLT | MODEL T

01204-08407

$2.12

9

BOLT | MODEL X

01204-08257

$1.96

10

NUT This part replaces 08310-22088.

08310-00087

$2.13

11

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

12

WASHER This part replaces 08322-21088.

08322-01087

$2.13
