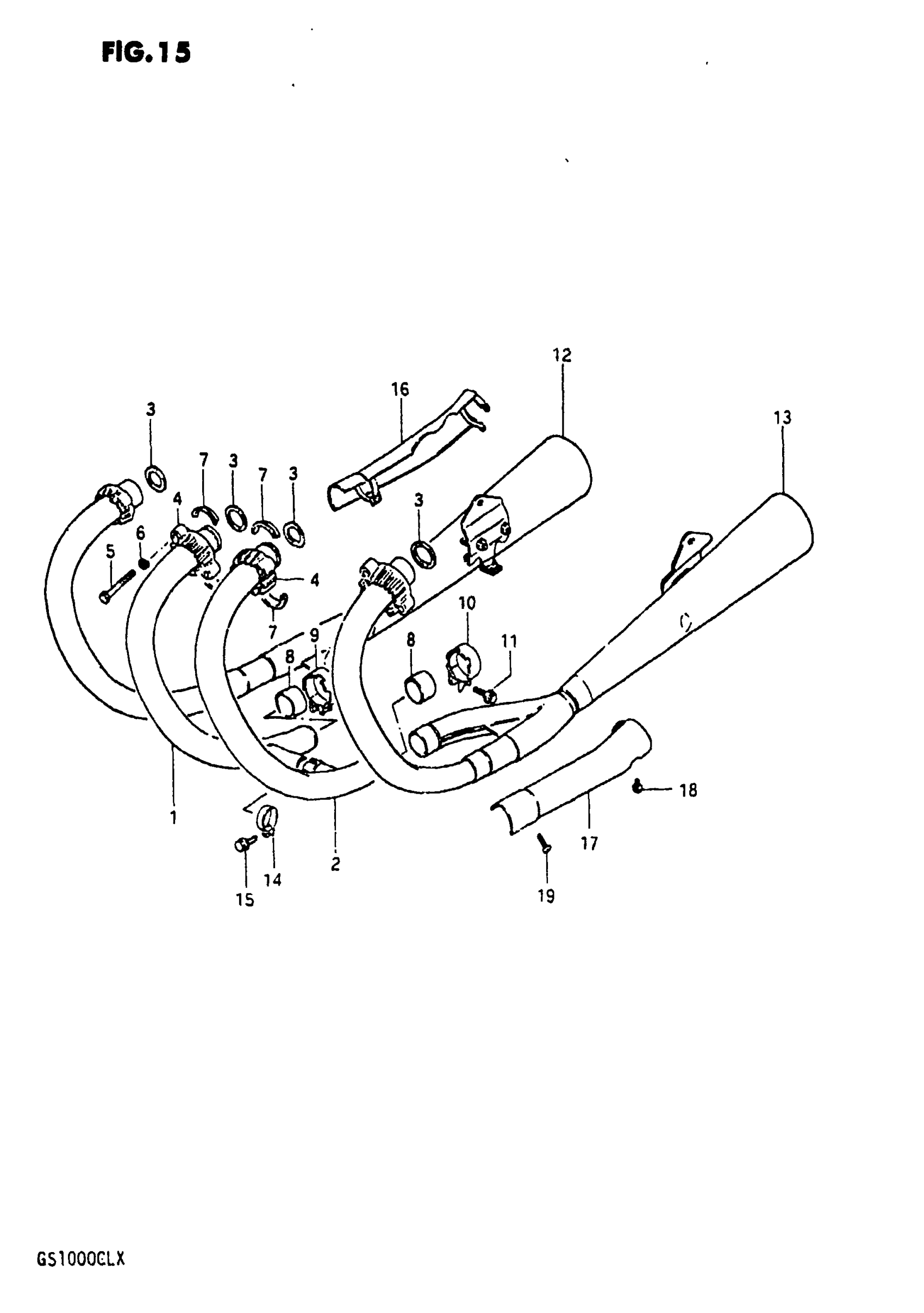

Suzuki GS1000GL (1981) MUFFLER (MODEL X) Diagram

#

Description
Price

1

PIPE, EXHAUST CENTER RH This part replaces 14170-49010.

14170-49400-H01

Unavailable

2

PIPE, EXHAUST CENTER LH This part replaces 14180-49010.

14180-49400-H01

Unavailable

3

GASKET, EXHAUST PIPE This part replaces 14181-11010.

14181-01D00

$7.11

4

CLAMP, EXHAUST PIPE FRONT This part replaces 14182-49010.

14182-49011

Unavailable

5

BOLT This part replaces 01107-08458.

01500-08453

$2.50

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

PLATE, EXHAUST PIPE

14155-49000

$5.02

8

CONNECTOR,MUFFL This part replaces 14771-49001.

14771-49010

$27.48

9

CLAMP, CONNECTOR RH

14459-49000

Unavailable

10

CLAMP, CONNECTOR LH

14469-49000

Unavailable

11

BOLT This part replaces 01517-08258.

01550-08257

$2.81

12

NO DESCRIPTION AVAILABLE This part replaces 14301-49141.

14301-49141-H01

Unavailable

13

NO DESCRIPTION AVAILABLE This part replaces 14302-49141.

14302-49141-H01

Unavailable

14

CLAMP, EXHAUST COUPLLER

09402-37601

Unavailable

15

BOLT This part replaces 01517-06258.

01550-06257

$2.30

16

COVER, MUFFLER RH

14780-49010

Unavailable

17

NO DESCRIPTION AVAILABLE This part replaces 14790-49010.

14790-49011

Unavailable

18

SCREW This part replaces 02112-05068.

09125-05122

$2.06

19

SCREW This part replaces 02112-05168.

02112-05167

$1.97
