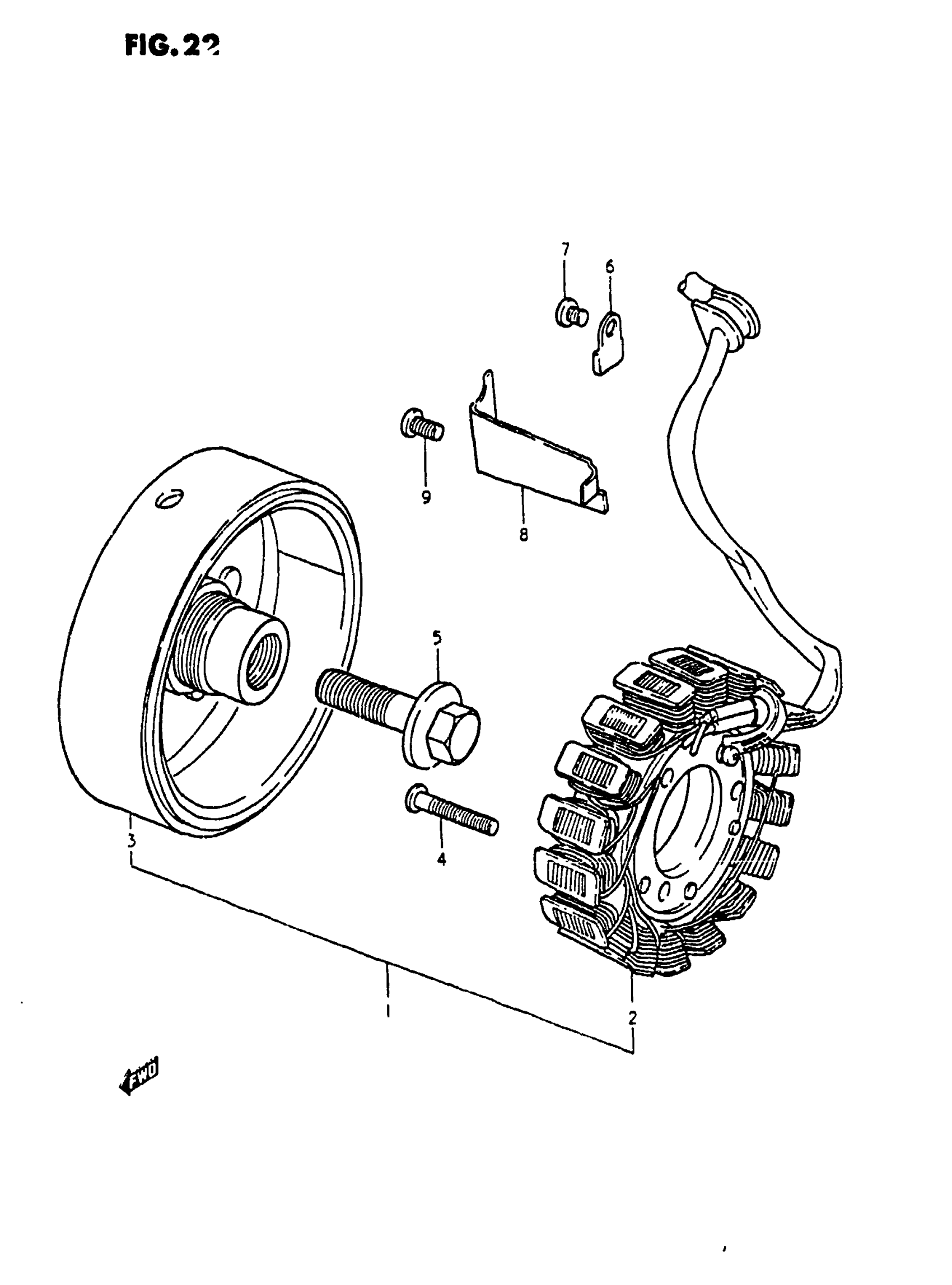

Suzuki GS1000GL (1981) GENERATOR Diagram

#

Description
Price

1

STATOR | MODEL T This part replaces 31400-49011.

31401-49010

Unavailable

1

STATOR | MODEL X; Includes Item(s) 2 - 3 This part replaces 31400-49110.

31401-49310

Unavailable

2

STATOR | MODEL T This part replaces 31401-49011.

31401-49010

Unavailable

2

STATOR | MODEL X This part replaces 31401-49110.

31401-49310

Unavailable

3

ROTOR | MODEL T

31402-49011

Unavailable

3

ROTOR | MODEL X

31402-49110

Unavailable

4

SCREW This part replaces 02112-06308.

02112-06307

$1.97

5

BOLT

09103-12003

Unavailable

6

CLAMP

31497-45000

$1.92

7

SCREW This part replaces 02112-05068.

09125-05122

$2.06

8

CLAMP

31498-45000

$2.15

9

SCREW This part replaces 02112-06108.

02112-06107

$1.49
