1981 Suzuki GS1000GL Fuel Tank Diagram

← All diagrams

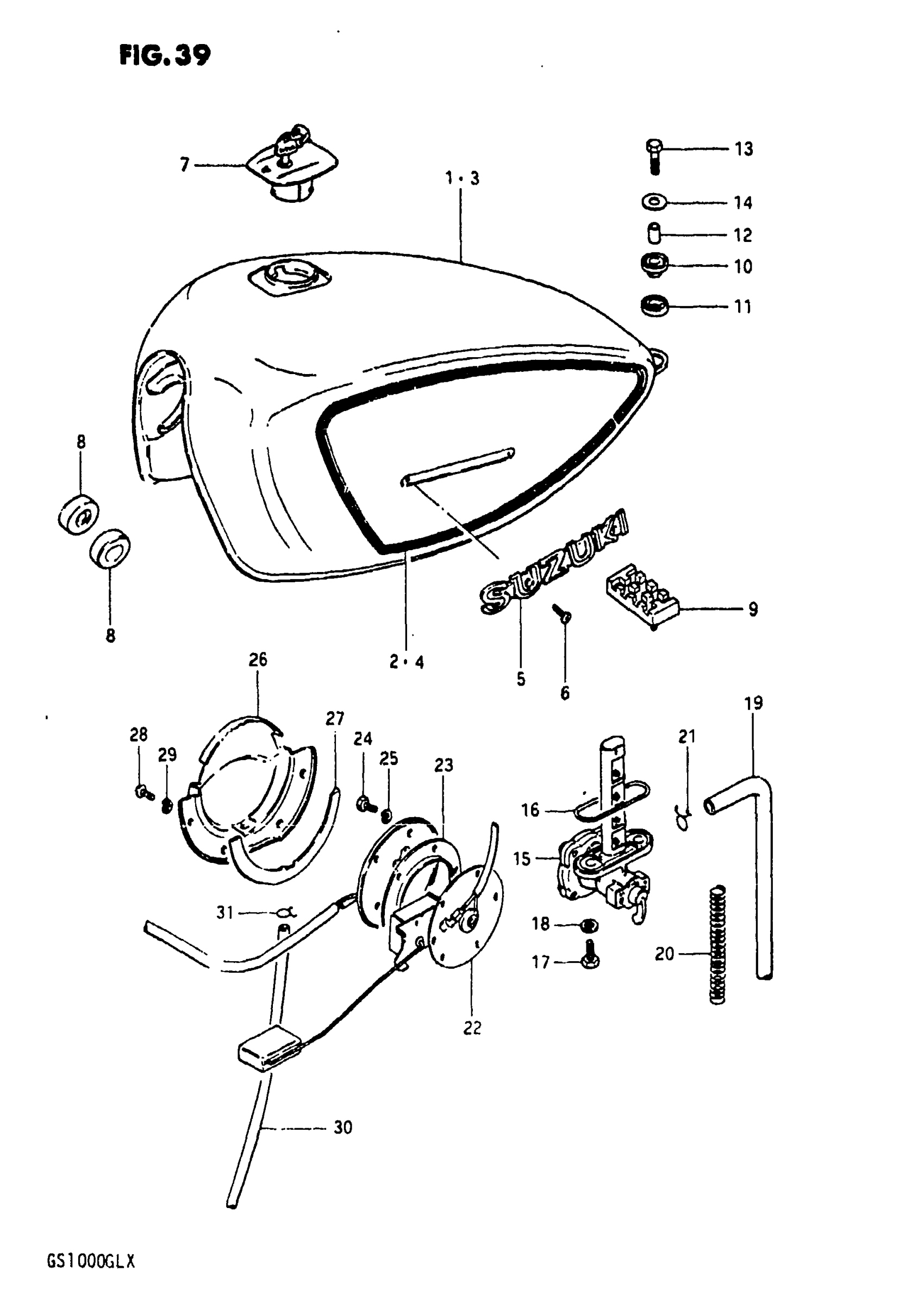

Find the part on the Fuel Tank diagram for your 1981 Suzuki GS1000GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1981 Suzuki GS1000GL Fuel Tank Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 44100-45310-78R.

44110-45303-13L

1
Out of stock

2

TAPE SET

68110-45310-78U

1
Out of stock

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 This part replaces 44100-45310-78S.

44110-45303-13L

1
Out of stock

4

TAPE SET

68110-45310-78V

1
Out of stock

5

EMBLEM

68111-11400

2
Out of stock

6

SCREW This part replaces 02132-03065.

02122-0306B

4
Out of stock

7

CAP SET,FUEL TA This part replaces 44200-49702.

44200-49811

1
Out of stock

8

CUSHION This part replaces 09329-10007.

09329-10026

2
Out of stock

9

CUSHION,FUEL TA This part replaces 44541-34500.

44541-34501

1
Out of stock

10

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

2
Out of stock

11

CUSHION, LOWER

09320-14013

2
Out of stock

12

SPACER This part replaces 09180-06072.

09180-06271

2
Out of stock

13

BOLT, REAR This part replaces 01107-06308.

01500-06307

2
Out of stock

14

WASHER, FRONT This part replaces 09160-06004.

09160-06134

2
Out of stock

15

COCK ASSY,FUEL | Includes Item(s) 16 This part replaces 44300-45370.

44300-45373

1
Out of stock

16

O RING This part replaces 44348-49170.

44348-49171

1
Out of stock

17

BOLT This part replaces 09128-06006.

09128-06057

2
Out of stock

18

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

2
Out of stock

19

HOSE(7X10.2X200 This part replaces 09343-07026.

09352-70104-00B

1
Out of stock

20

SPRING This part replaces 09440-13017.

09440-13043

1
Out of stock

21

CLIP

09401-10403

2
Out of stock

22

GAUGE ASSY, FUEL LEVEL | Includes Item(s) 23

34810-45310

1
Out of stock

23

GASKET

34825-45100

1
Out of stock

24

BOLT This part replaces 01104-05108.

01500-0510B

5
Out of stock

25

LOCK WASHER This part replaces 08321-21058.

08321-0105A

5
Out of stock

26

PLATE, FUEL DRAIN This part replaces 34885-45302.

34885-34500

1
Out of stock

27

GASKET,FUEL DRA This part replaces 34888-49000.

34888-49001

1
Out of stock

28

4

$1.55

In stock

29

LOCK WASHER This part replaces 08321-21058.

08321-0105A

4
Out of stock

30

HOSE This part replaces 09343-05151.

09352-50005-00B

1
Out of stock

31

CLIP

09401-08402

1
Out of stock
