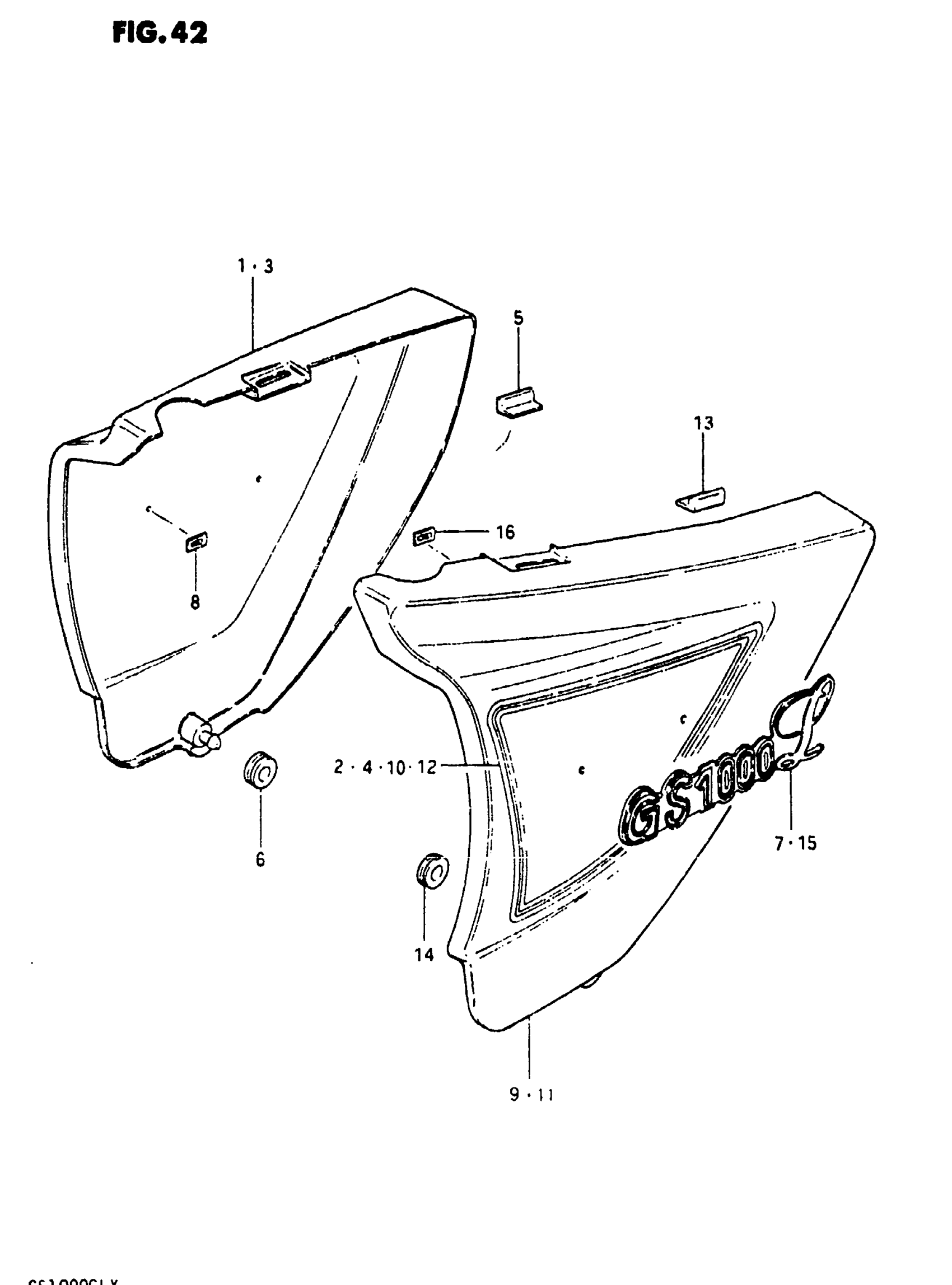

Suzuki GS1000GL (1981) FRAME COVER (MODEL T) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 This part replaces 47100-45810-00J.

47111-45300

Unavailable

2

TAPE SET, RH

68130-45300-71P

Unavailable

3

NO DESCRIPTION AVAILABLE | Includes Item(s) 4 This part replaces 47100-45810-08E.

47111-45300

Unavailable

4

TAPE SET, RH

68130-45300-67M

Unavailable

5

CUSHION

47117-45000

$2.14

6

CUSHION, LOWER

09320-08018

$3.04

7

EMBLEM

68131-49100

Unavailable

8

NUT

09148-03002

$2.15

9

NO DESCRIPTION AVAILABLE | Includes Item(s) 10 This part replaces 47200-45810-00J.

47211-45300

Unavailable

10

TAPE SET, LH

68140-45300-71P

Unavailable

11

NO DESCRIPTION AVAILABLE | Includes Item(s) 12 This part replaces 47200-45810-08E.

47211-45300

Unavailable

12

TAPE SET, LH

68140-45300-67M

Unavailable

13

CUSHION

47117-45000

$2.14

14

CUSHION, LOWER

09320-08018

$3.04

15

EMBLEM

68131-49100

Unavailable

16

NUT

09148-03002

$2.15
