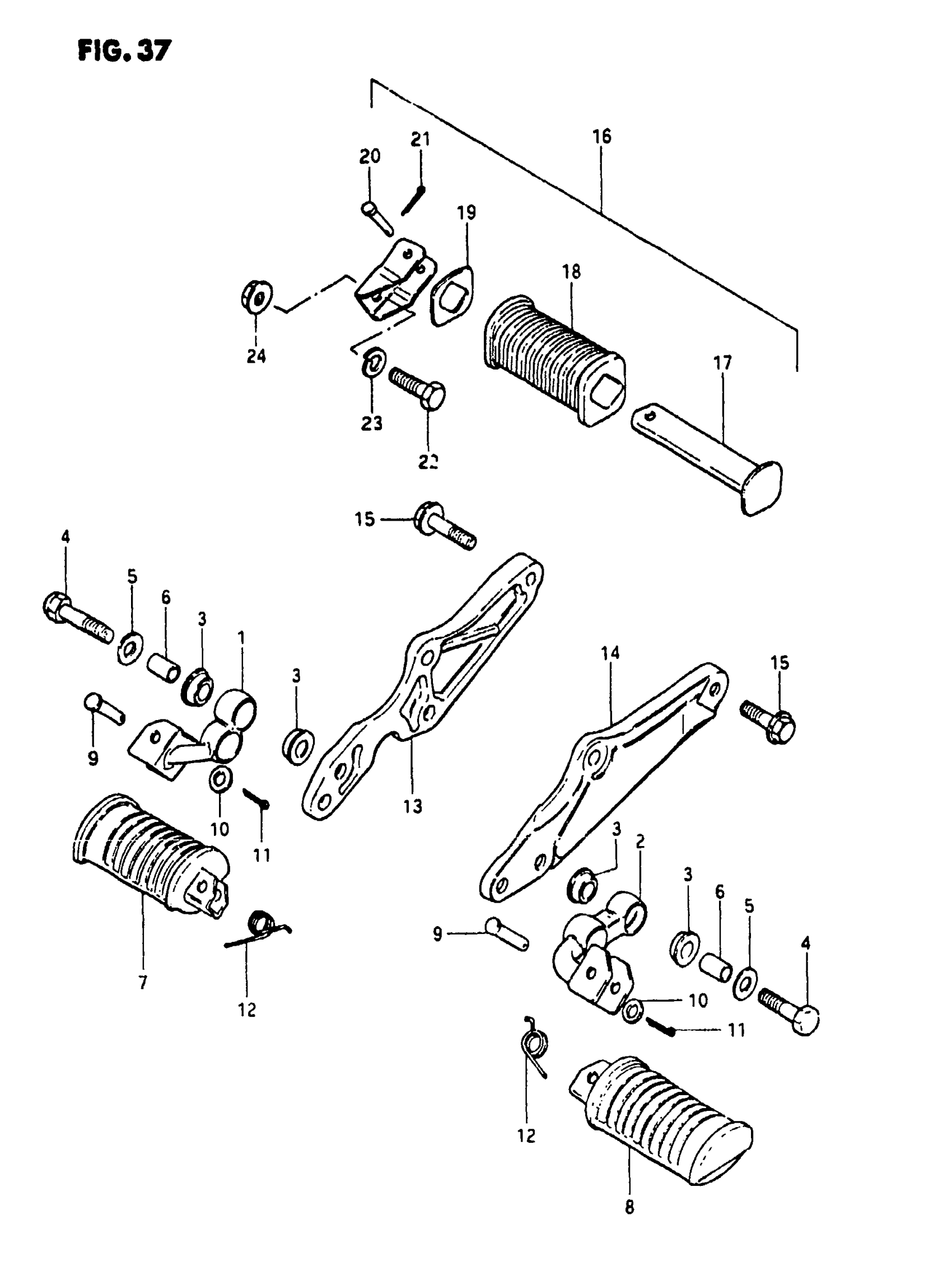

Suzuki GS1000GL (1981) FOOTREST (MODEL X) Diagram

#

Description
Price

1

BAR, FOOTREST RH

43510-45350

Unavailable

2

BAR, FOOTREST LH

43520-45350

Unavailable

3

CUSHION

09305-14004

Unavailable

4

BOLT

09104-10009

Unavailable

5

WASHER

09160-10035

$1.78

6

SPACER

09180-10066

Unavailable

7

RUBBER,PILLION This part replaces 43550-49002.

43550-37310

$25.47

8

FOOTREST LH This part replaces 43560-49002.

43560-37310

$32.98

9

PIN

09200-08002

$2.05

10

WASHER This part replaces 08322-11088.

08322-01087

$2.13

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

12

SPRING

09448-14012

$3.04

13

BRACKET, MUFFIER RH

43811-45350

Unavailable

14

BRACKET, MUFFIER LH

43821-45350

Unavailable

15

BOLT (10X20) This part replaces 01527-10257.

01550-1025A

$3.05

16

FOOTREST, PILLION RH

43600-45350

Unavailable

16

FOOTREST, PILLION LH | Includes Item(s) 17 - 21

43700-45350

Unavailable

17

BAR, RH

43610-49201

Unavailable

17

BAR, LH

43620-49201

Unavailable

18

RUBBER

43612-49201

Unavailable

19

WASHER This part replaces 43631-49201.

43631-45001

Unavailable

20

PIN

09200-06010

$1.72

21

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

22

BOLT, HANDLE HOLDER This part replaces 01107-10358.

01500-1035B

$3.72

23

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

24

NUT, WHEEL SET This part replaces 08316-16108.

08316-10107

$2.39
