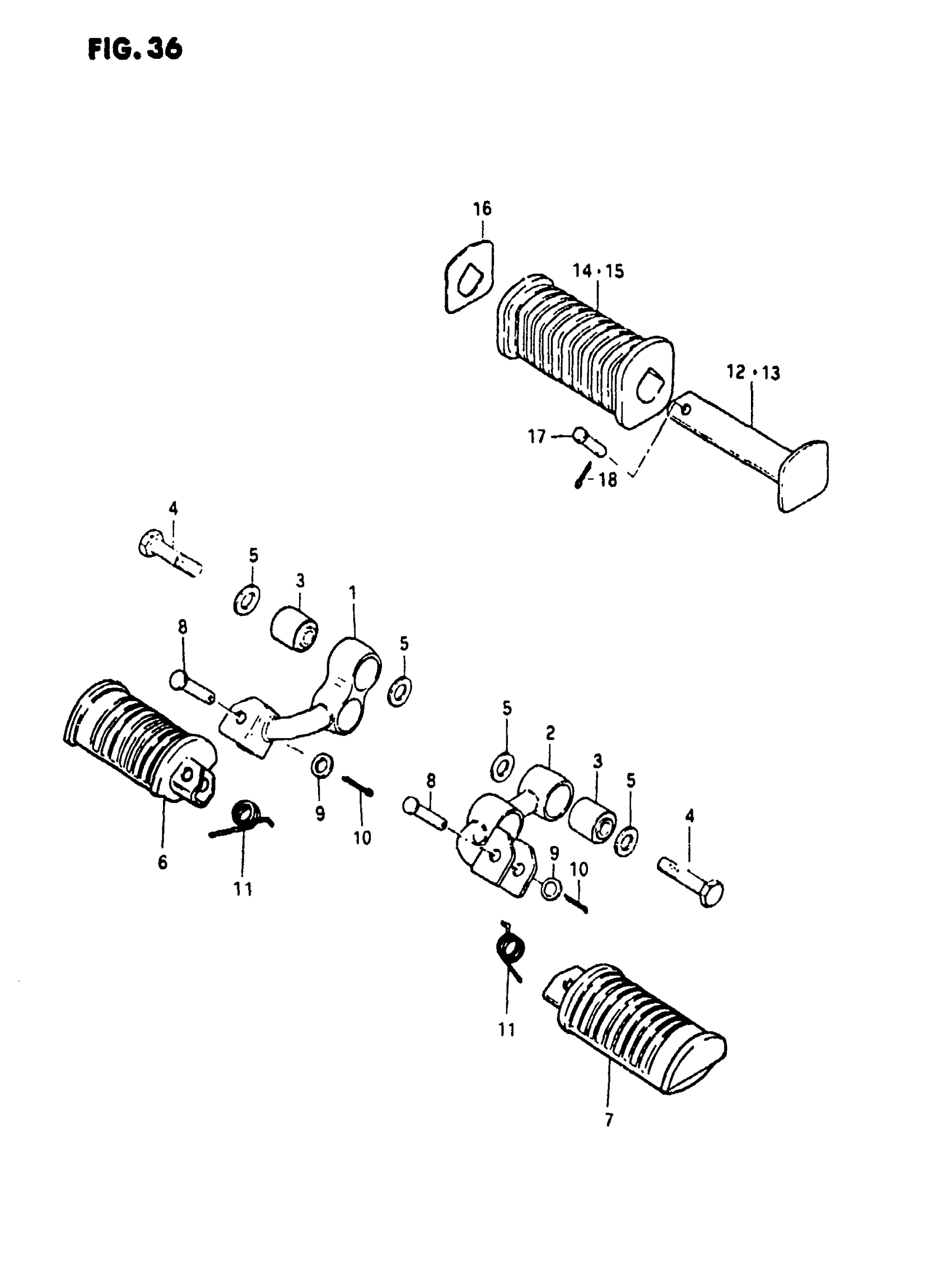

Suzuki GS1000GL (1981) FOOTREST (MODEL T) Diagram

#

Description
Price

1

BAR, FOOTREST RH (BLACK)

43510-45110-019

Unavailable

2

BAR, FOOTREST LH (BLACK)

43520-45110-019

Unavailable

3

BUSHING

09319-10008

$7.40

4

BOLT (10X38) This part replaces 09104-10007.

09104-10029

$3.55

5

WASHER This part replaces 09160-10013.

09160-10123

$2.12

6

RUBBER,PILLION This part replaces 43550-49002.

43550-37310

$25.47

7

FOOTREST LH This part replaces 43560-49002.

43560-37310

$32.98

8

PIN

09200-08002

$2.05

9

WASHER This part replaces 08322-11088.

08322-01087

$2.13

10

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

11

SPRING This part replaces 09448-14013.

09448-14012

$3.04

12

BAR, PILLION RH This part replaces 43610-45000.

43610-45001

Unavailable

13

BAR, PILLION LH This part replaces 43620-45000.

43620-45001

Unavailable

14

RUBBER This part replaces 43612-45000.

43612-45001

Unavailable

15

RUBBER This part replaces 43622-45000.

43612-45001

Unavailable

16

WASHER This part replaces 43631-45000.

43631-45001

Unavailable

17

PIN

09200-06010

$1.72

18

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49
