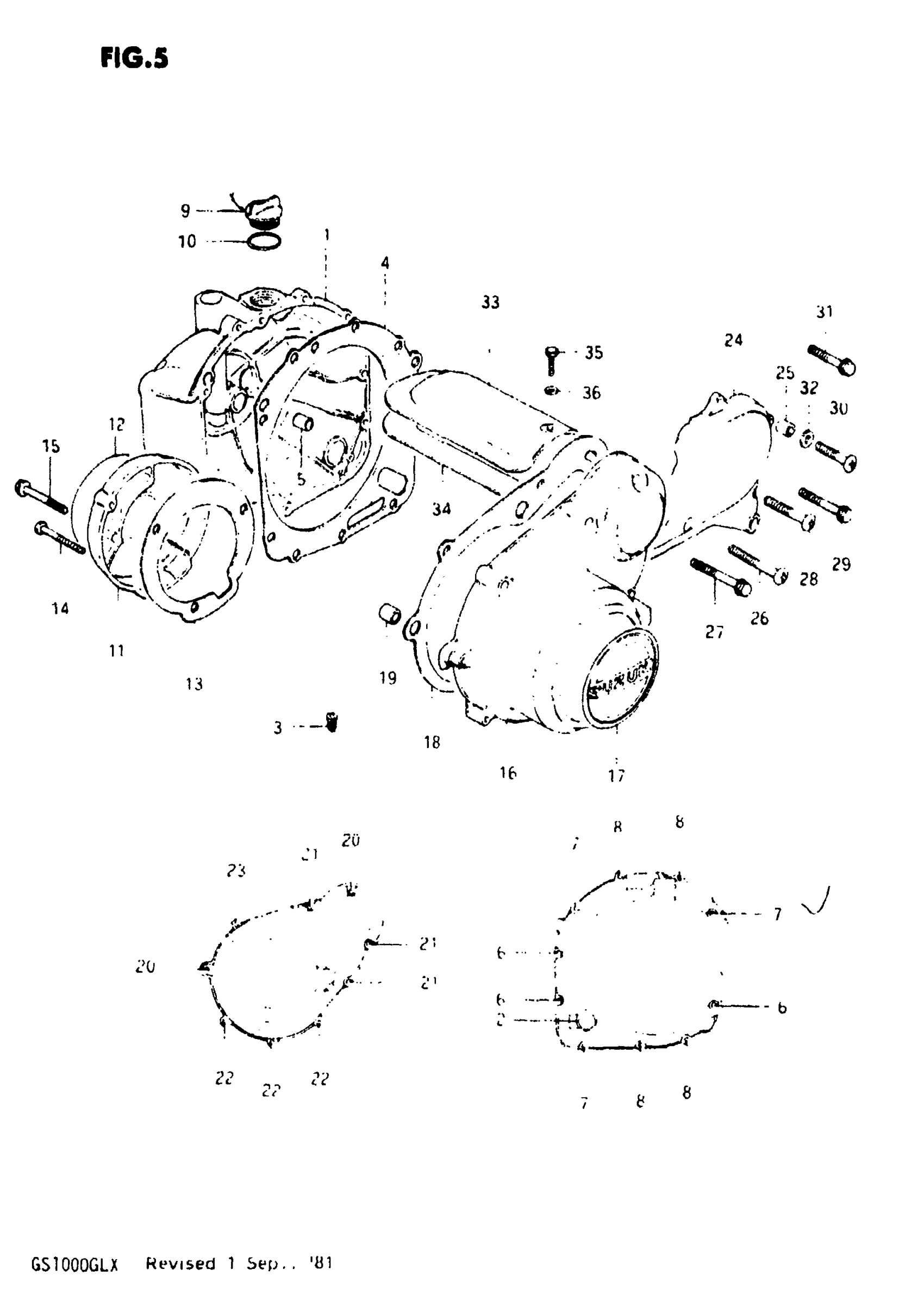

Suzuki GS1000GL (1981) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH | ~E.NO. 117767 This part replaces 11340-49100.

11340-49101

Unavailable

1

COVER, CLUTCH | E.NO. 117768~; Includes Item(s) 2

11340-49101

Unavailable

2

.LENS, OIL LEVEL CHECK

11971-45010

$16.76

3

JET, OIL GALLERY

09493-22009

Unavailable

4

GASKET,CLUTCH C This part replaces 11482-49100.

11482-49100-H17

Unavailable

5

PIN

09202-09004

Unavailable

6

SCREW This part replaces 02112-06358.

02112-06357

$1.78

6

BOLT This part replaces 01547-06358.

01547-06357

$2.03

7

SCREW This part replaces 02112-06308.

02112-06307

$1.97

7

BOLT This part replaces 01547-06308.

01547-06307

$2.03

8

SCREW This part replaces 02112-06258.

02112-06257

$1.78

8

BOLT This part replaces 01547-06258.

01547-06257

$2.03

9

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

10

O RING

09280-32005

$1.99

11

COVER, CONTACT BREAKER | ~E.NO. 117767 This part replaces 11381-49001.

11381-49002

Unavailable

11

COVER, CONTACT BREAKER | E.NO. 117768~

11381-49002

Unavailable

12

EMBLEM

68235-45200

Unavailable

13

GASKET

11491-45000

Unavailable

14

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

15

BOLT This part replaces 01544-05308.

01547-05307

$2.30

16

COVER, GENERATOR | ~E.NO. 117767 This part replaces 11351-49001.

11351-49002

Unavailable

16

COVER, GENERATOR | E.NO. 117768~

11351-49002

Unavailable

17

EMBLEM

68233-45200

$18.50

18

GASKET,MAG COVE This part replaces 11483-45000.

11483-45000-H17

$11.75

19

PIN This part replaces 09206-13001.

04211-13189

$2.19

20

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

20

BOLT This part replaces 01547-06458.

01547-06457

$2.32

21

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

21

BOLT This part replaces 01547-06408.

01547-06407

$2.32

22

SCREW This part replaces 02112-06358.

02112-06357

$1.78

22

BOLT This part replaces 01547-06358.

01547-06357

$2.03

23

SCREW This part replaces 02112-06308.

02112-06307

$1.97

23

BOLT This part replaces 01547-06308.

01547-06307

$2.03

24

COVER, SECONDARY DRIVE UNIT | ~E.NO.117767 This part replaces 11360-49100.

11360-49101

Unavailable

24

COVER, SECONDARY DRIVE UNIT | E.NO.117768~

11360-49101

Unavailable

25

PIN

04211-09129

$1.65

26

SCREW This part replaces 02112-06308.

02112-06307

$1.97

27

BOLT This part replaces 01547-06308.

01547-06307

$2.03

28

SCREW This part replaces 02112-06258.

02112-06257

$1.78

29

BOLT This part replaces 01547-06258.

01547-06257

$2.03

30

SCREW This part replaces 02112-06208.

02112-06207

$1.78

31

BOLT This part replaces 01547-06208.

01547-06207

$2.01

32

WASHER This part replaces 08322-21068.

08322-01067

$2.13

33

COVER, STARTER MOTOR

11382-49002

$46.38

34

GASKET MOTOR CO | MODEL X This part replaces 11493-45001.

11493-45002

Unavailable

35

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

36

WASHER This part replaces 08322-21058.

08322-01057

$2.13
