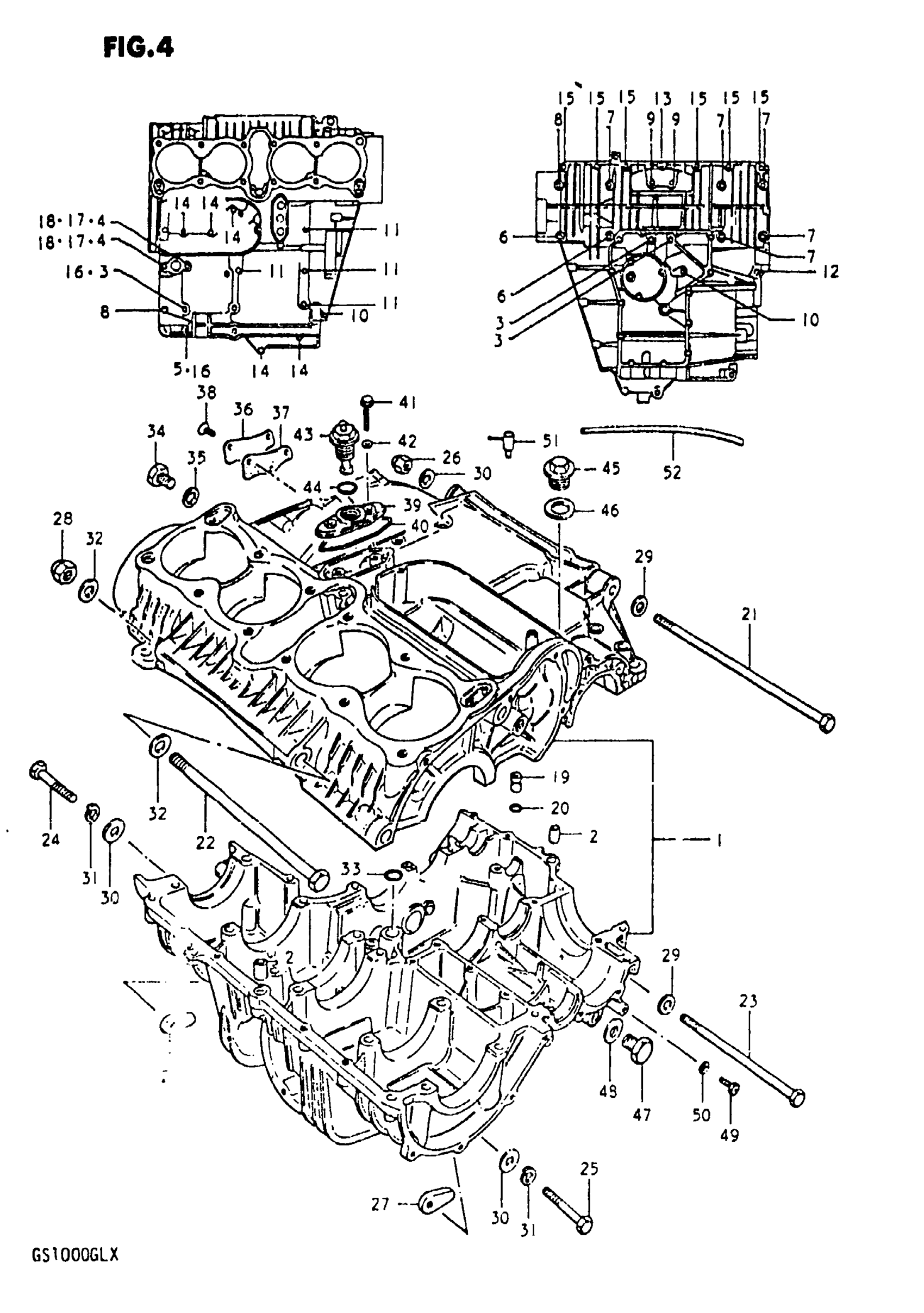

Suzuki GS1000GL (1981) CRANKCASE Diagram

#

Description
Price

1

CRANKCASE SET | MODEL T

11300-49830

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL X; Includes Item(s) 2 - 20 This part replaces 11300-49840.

11300-49843

Unavailable

2

PIN This part replaces 09206-13001.

04211-13189

$2.19

3

BOLT (8X125) This part replaces 09103-08020.

09103-08106

Unavailable

4

BOLT (8X110)

09103-08046

Unavailable

5

BOLT (8X105) This part replaces 09103-08023.

09103-08097

$3.44

6

BOLT (8X100) This part replaces 09103-08009.

09103-08070

$5.57

7

BOLT This part replaces 01517-08908.

01550-08907

$5.18

8

BOLT This part replaces 01517-08658.

01550-08657

$4.68

9

BOLT This part replaces 01517-08608.

01550-08607

$3.76

10

BOLT This part replaces 01517-06908.

01550-06907

$4.60

11

BOLT 6X75 This part replaces 01517-06758.

01550-06757

$3.68

12

BOLT This part replaces 01517-06558.

01550-06557

$3.30

13

BOLT (6X50) This part replaces 01517-06508.

01550-06507

$3.40

14

BOLT (CHROME) This part replaces 01517-06458.

01550-06457

$2.69

15

BOLT This part replaces 01517-06358.

01550-06357

$2.77

16

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

17

NUT This part replaces 08313-11088.

08313-10087

$2.28

18

GASKET (8.2X14X1) This part replaces 09168-08008.

09168-08016

$1.65

19

NOZZLE, OIL GALLERY

09364-05005

$3.73

20

O RING, NOZZLE | MODEL T This part replaces 09280-03001.

09280-03003

$1.91

20

O RING | MODEL X

09280-03003

$1.91

21

NO DESCRIPTION AVAILABLE This part replaces 09100-10074.

09100-10074-XC0

Unavailable

22

SHAFT,RR SWNG P This part replaces 61211-39000.

61211-39002

$25.52

23

BOLT (10x165)

09100-10078

$12.70

24

BOLT This part replaces 01107-10608.

01500-1060A

$4.41

25

BOLT This part replaces 01107-10508.

01500-1050A

$3.78

26

NUT

09159-10011

$3.23

27

NUT

09159-10020

$5.18

28

NUT This part replaces 08319-21128.

08319-2112A

$3.76

29

WASHER

09160-10005

$1.87

30

WASHER This part replaces 08322-11108.

08322-01107

$2.15

31

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

32

WASHER This part replaces 08322-11128.

08322-01127

$1.84

33

O RING, OIL GALLERY

09280-13001

$2.72

34

PLUG This part replaces 09247-14012.

09247-14026

$3.76

35

GASKET

09168-14004

$1.83

36

CAP, OIL GALLERY

11394-45000

Unavailable

37

GASKET,OIL GALL This part replaces 11497-45000.

11497-45000-H17

Unavailable

38

SCREW This part replaces 02122-06168.

02122-06167

$1.49

39

HOUSING, SWITCH

16445-45000

Unavailable

40

O RING

16448-45000

$8.89

41

BOLT This part replaces 01517-06258.

01550-06257

$2.30

42

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

43

SWITCH ASSY,OIL This part replaces 37820-45050.

37820-45061

$31.65

44

O RING

09280-19001

$1.49

45

PLUG This part replaces 09247-20002.

09248-20003

$5.80

46

GASKET 20.1X27X This part replaces 09168-20004.

09168-20003

$2.97

47

PLUG, OIL DRAIN This part replaces 09247-14014.

09247-14036

$6.17

48

GASKET

09168-14004

$1.83

49

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

50

GASKET (5.8X13X1.2) This part replaces 09168-06009.

09168-06023

$2.35

51

PLUG, BREATHER

24821-45100

$9.00

52

HOSE(2X5X600) | L:270 This part replaces 09343-02016.

09352-20504-600

$6.70
