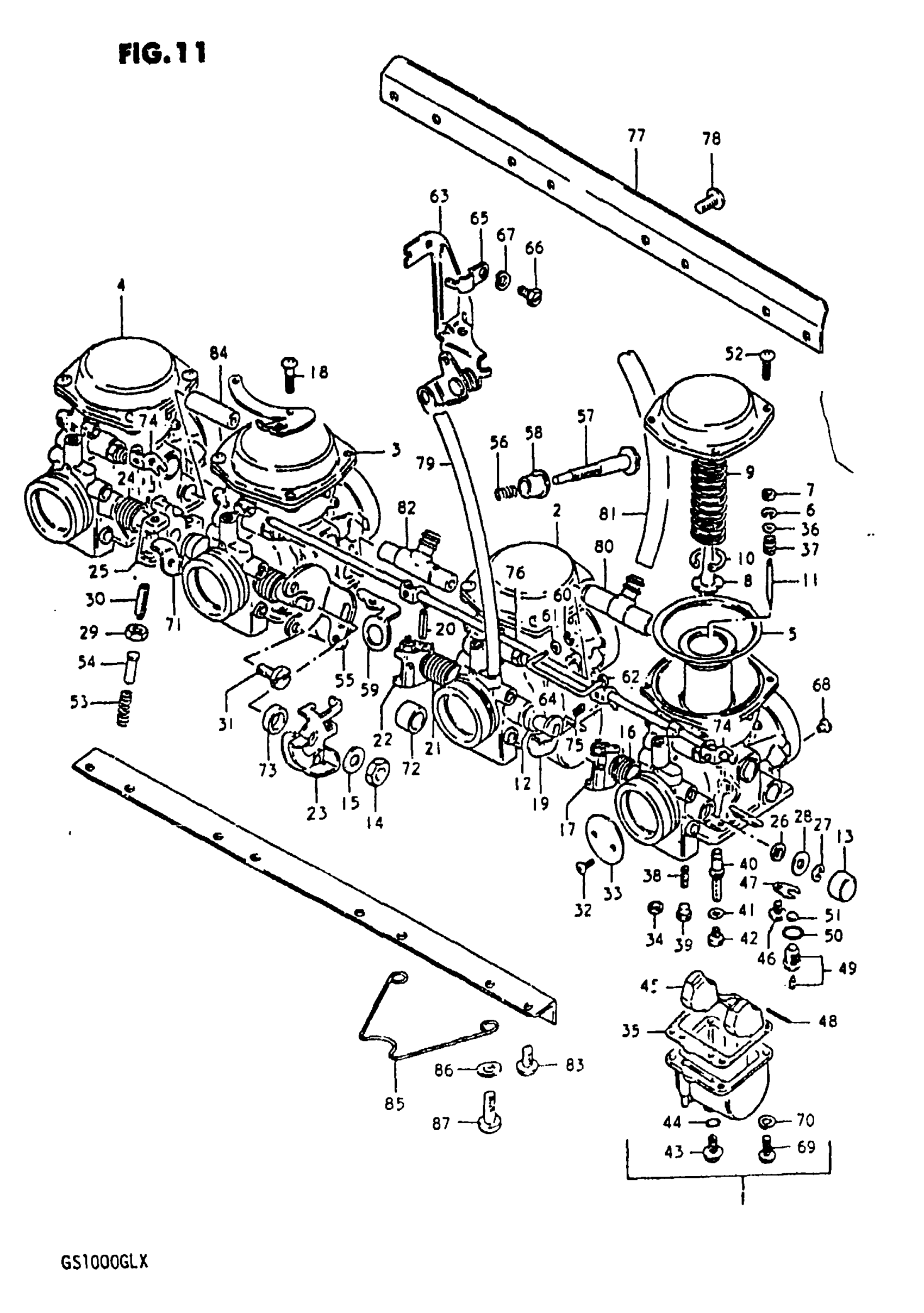

Suzuki GS1000GL (1981) CARBURETOR Diagram

#

Description
Price

0

CARBURETOR ASSY | Includes Item(s) 1 - 87

13200-49150

Unavailable

1

CARBURETOR, NO.1 | LH

13201-49150

Unavailable

2

CARBURETOR, NO.2 | ML

13202-49150

Unavailable

3

CARBURETOR, NO.3 | MR

13203-49150

Unavailable

4

CARBURETOR, NO.4 | RH

13204-49150

Unavailable

5

DIAPHRAGM ASSY This part replaces 13500-49200.

13500-38310

Unavailable

6

E RING

13394-31210

$4.64

7

RING

13387-44030

$5.83

8

GUIDE HOLDER

13389-44030

Unavailable

9

SPRING

13503-44080

Unavailable

10

CLIP

13581-44030

$6.78

11

NEEDLE, JET (5D50)

13383-45110

Unavailable

12

GASKET | ML, MR

13557-49200

Unavailable

13

CAP | RH, LH

13578-47070

$4.52

14

NUT | MR This part replaces 08310-12088.

08310-00087

$2.13

15

WASHER | MR

13606-47070

Unavailable

16

SPRING | LH

13573-47070

Unavailable

17

SHAFT | LH

13550-49200

Unavailable

18

SCREW | ML:1, MR:2 This part replaces 02111-05158.

02112-05167

$1.97

19

SHAFT | ML

13550-49210

Unavailable

20

PIN | LH, ML, RH

13563-47070

Unavailable

21

SPRING | ML

13573-45110

Unavailable

22

LEVER | ML

13553-47070

Unavailable

23

LEVER | MR

13555-47070

Unavailable

24

SPRING | MR, RH

13573-47080

Unavailable

25

SHAFT | RH

13550-49220

Unavailable

26

SEAL This part replaces 13651-51010.

13651-51011

$2.20

27

E RING | LH, RH

13617-44080

$2.90

28

GASKET | LH, RH

13557-47070

$3.59

29

NUT | LH, ML, RH

13607-47070

$3.13

30

SCREW | LH, ML, RH

13605-47080

$7.77

31

SCREW | MR

13605-45110

Unavailable

32

SCREW

13604-44080

$2.92

33

VALVE, THROTTLE (140)

13551-49150

Unavailable

34

GASKET

13258-44080

Unavailable

35

GASKET,FLOAT CH This part replaces 13251-44080.

13251-44081-H17

$8.68

36

WASHER

13382-44030

$3.71

37

SPRING

13388-44030

$8.12

38

JET, PILOT (40)

09492-40007

Unavailable

39

PLUG

13357-44080

$5.10

40

JET, NEEDLE (X-6)

09494-00275

Unavailable

41

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

42

JET, MAIN (115)

09491-23011

$9.63

43

SCREW

13247-44080

$7.97

44

O RING

13246-44080

$2.80

45

FLOAT

13250-44080

$28.49

46

SCREW This part replaces 02111-04067.

02112-0406B

$1.55

47

PLATE

13373-39110

$6.64

48

PIN

13254-92311

$2.07

49

VALVE ASSY, NEEDLE (2.0) This part replaces 13370-44080.

13370-44500

$50.98

50

O RING This part replaces 66263-99050.

13374-35C00

$5.99

51

FILTER This part replaces 13376-44080.

13376-19F00

$10.28

52

SCREW | LH, RH:4, ML:3, MR:2 This part replaces 02112-05128.

02112-05127

$1.97

53

SPRING | LH, ML, RH

13268-44010

Unavailable

54

PIN | LH, ML, RH

13575-47070

Unavailable

55

BRACKET | MR

13627-45110

Unavailable

56

SPRING | MR

13271-93011

$5.32

57

ADJUSTER | MR

13267-47070

Unavailable

58

BUSH | MR

13276-31210

Unavailable

59

BRACKET | MR

13627-44090

Unavailable

60

CLIP, NEEDLE | ML This part replaces 13415-47070.

13394-10010

$5.45

61

WASHER | ML

13523-98010

Unavailable

62

LEVER | ML

13422-47070

Unavailable

63

BRACKET | ML

13624-49160

Unavailable

64

ROD | ML

13425-45110

Unavailable

65

PLATE | ML

13421-47070

Unavailable

66

BOLT | ML This part replaces 01104-05108.

01500-0510B

$1.80

67

LOCK WASHER | ML This part replaces 08321-21058.

08321-0105A

$1.84

68

JET, PILOT AIR (200)

09493-40001

Unavailable

69

SCREW This part replaces 02112-05168.

02112-05167

$1.97

70

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

71

SHAFT | MR

13550-49230

Unavailable

72

RING | ML

13574-49200

Unavailable

73

RING | MR

13574-45120

Unavailable

74

LEVER

13422-44080

Unavailable

75

SCREW

13605-47070

Unavailable

76

SHAFT

13410-49200

Unavailable

77

PLATE

13628-49200

Unavailable

78

SCREW This part replaces 13605-47090.

02142-05127

$1.97

79

HOSE(4.5X8.5X60 This part replaces 13683-45110.

09355-45001-600

$9.48

80

NIPPLE

13685-47070

$28.65

81

HOSE(6X10X600) This part replaces 13683-47070.

09352-60104-600

$8.99

82

NIPPLE

13685-49200

Unavailable

83

SCREW This part replaces 02112-06128.

02112-06127

$1.84

84

NIPPLE

13685-49210

$17.09

85

CLIP

13619-49200

Unavailable

86

WASHER

13615-49200

Unavailable

87

SCREW This part replaces 02112-06168.

02112-06167

$1.49
