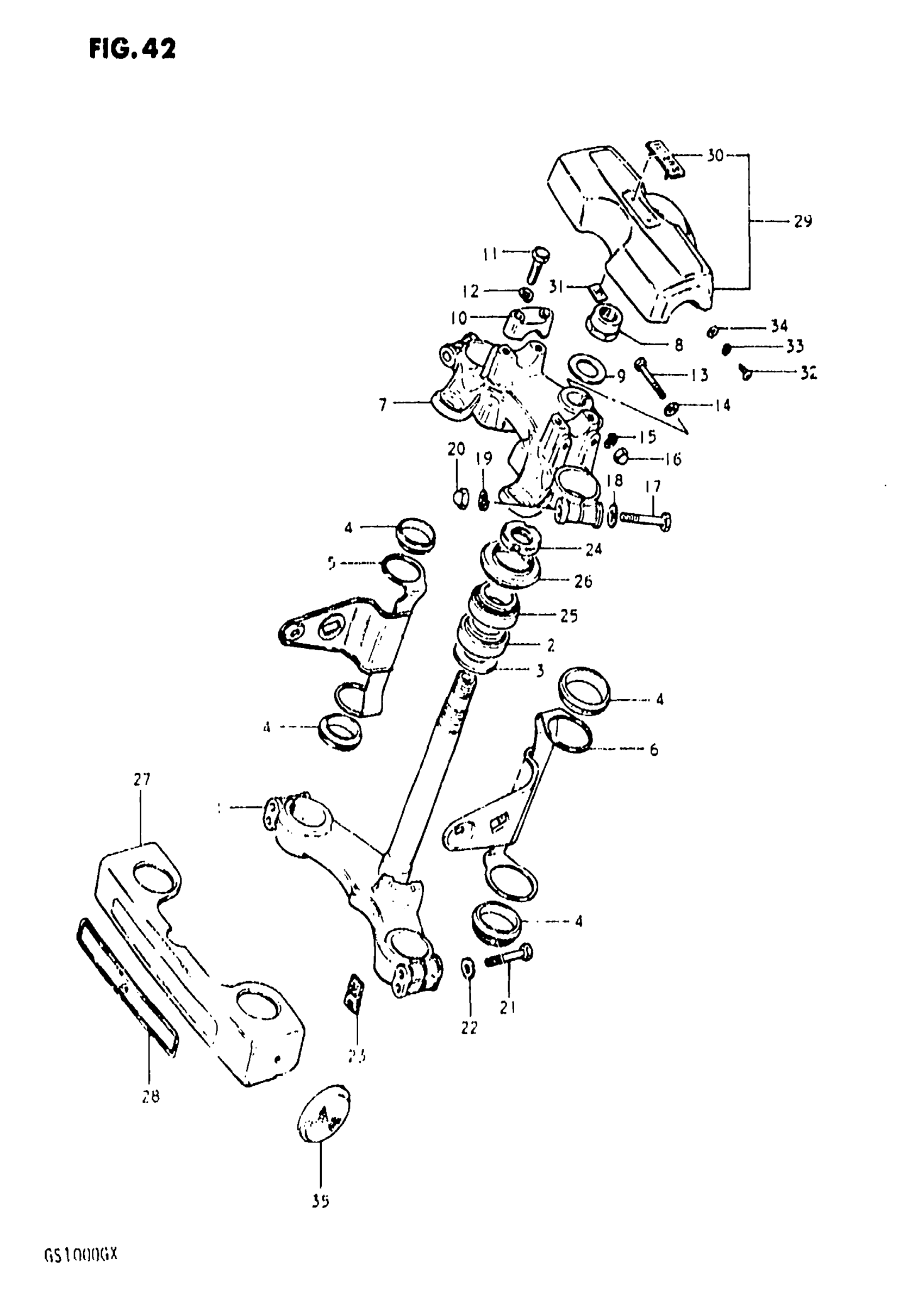

Suzuki GS1000G (1981) STEERING STEM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 51410-49071.

51410-49772-291

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30005.

09265-30034

$57.05

3

SHIM, 30X40X1.5 This part replaces 08211-30402.

09181-30184

$3.07

4

CUSHION, BRACKET This part replaces 51553-49000.

51553-34300

$4.52

5

NO DESCRIPTION AVAILABLE | BLACK This part replaces 51530-45100-291.

51500-45810-291

Unavailable

6

BRACKET, HEAD LAMP, LH | BLACK

51540-45100-291

Unavailable

7

STEM HEAD, STEERING | BLACK

51311-49000-291

Unavailable

8

NUT

51353-45000

$9.69

9

WASHER

51356-31700

Unavailable

10

HOLDER, HANDLE | BLACK

56211-29320-291

$15.51

11

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

BOLT This part replaces 01107-08508.

01500-08507

$3.05

14

WASHER This part replaces 08322-21088.

08322-01087

$2.13

15

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

16

NUT This part replaces 08313-11088.

08313-10087

$2.28

17

BOLT This part replaces 01107-10558.

01500-1055A

$3.55

18

WASHER This part replaces 08322-21108.

08322-01107

$2.15

19

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84

20

NUT This part replaces 08313-11108.

08313-10107

$2.50

21

BOLT This part replaces 01107-08558.

01500-08557

$3.16

22

WASHER This part replaces 08322-21088.

08322-01087

$2.13

23

NUT

51458-49000

Unavailable

24

NUT

51631-28000

$17.37

25

BEARING

09265-25008

Unavailable

26

SEAL, STEERING DUST This part replaces 51643-49001.

51643-49002

$12.32

27

COVER FRONT FOR This part replaces 51871-45100.

51871-45101

Unavailable

28

EMBLEM

68211-45100

Unavailable

29

PAD, HANDLEBAR | Includes Item(s) 30 - 31

56170-45100

Unavailable

30

EMBLEM

68281-45100

$16.87

31

NUT

09148-03002

$2.15

32

SCREW This part replaces 02112-05108.

02112-05107

$1.49

33

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

34

WASHER This part replaces 08322-21058.

08322-01057

$2.13

35

REFLEX REFLECTOR

35950-49080

$17.24
