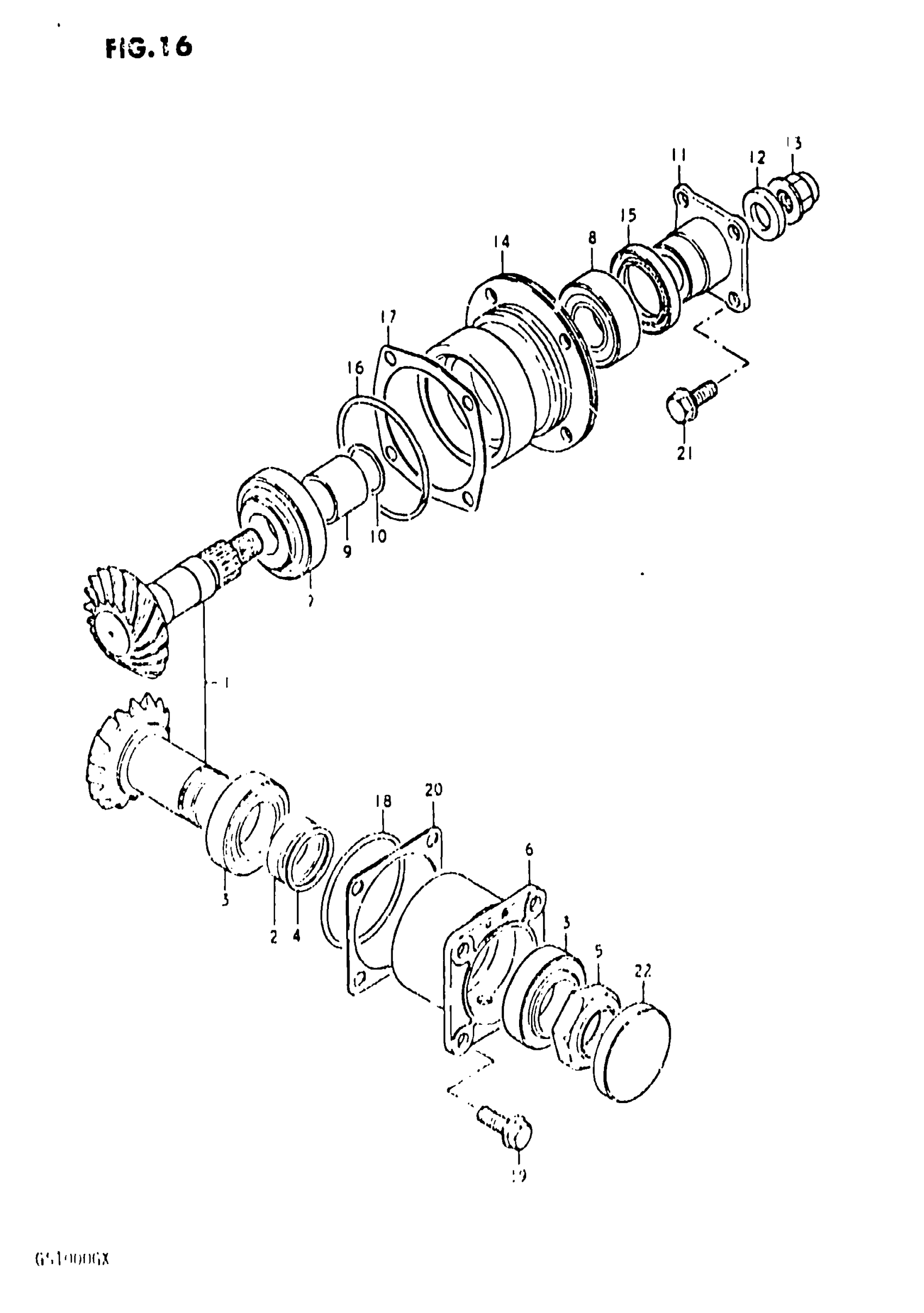

Suzuki GS1000G (1981) SECONDARY DRIVE GEAR Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | Includes Item(s) 1 - 15 This part replaces 24900-49820.

24901-49000

Unavailable

1

GEAR,2NDRY DRIV | NT:16/17 This part replaces 24900-49811.

24911-49001

Unavailable

2

SPACER

09180-32003

Unavailable

3

BEARING

09265-32001

Unavailable

4

SHIM (T:1.60) | (0~3)

09181-32001

Unavailable

4

SHIM (T:1.62) | (0~3)

09181-32002

Unavailable

4

SHIM (T:1.64) | (0~3)

09181-32003

Unavailable

4

SHIM (T:1.66) | (0~3)

09181-32004

Unavailable

4

SHIM (T:1.68) | (0~3)

09181-32005

Unavailable

4

SHIM (T:1.70) | (0~3)

09181-32006

Unavailable

4

SHIM (T:1.80) | (0~3)

09181-32007

Unavailable

4

SHIM (T:1.90) | (0~3)

09181-32008

Unavailable

4

SHIM (T:2.00) | (0~3)

09181-32009

Unavailable

5

NUT

09159-32001

Unavailable

6

HOUSING, DRIVE BEVEL GEAR

24931-49001

Unavailable

7

BEARING, FRONT

09265-25012

Unavailable

8

BEARING, REAR This part replaces 09265-25011.

09265-25024

$60.80

9

SPACER

09180-25056

Unavailable

10

SHIM (T:1.60) | (0~3)

09181-25006

Unavailable

10

SHIM (T:1.62) | (0~3)

09181-25007

Unavailable

10

SHIM (T:1.64) | (0~3)

09181-25008

Unavailable

10

SHIM (T:1.66) | (0~3)

09181-25009

Unavailable

10

SHIM (T:1.68) | (0~3)

09181-25010

Unavailable

10

SHIM (T:1.70) | (0~3)

09181-25011

Unavailable

10

SHIM (T:1.80) | (0~3)

09181-25012

Unavailable

10

SHIM (T:1.90) | (0~3)

09181-25013

Unavailable

10

SHIM (T:2.00) | (0~3)

09181-25014

Unavailable

11

FLANGE, UNIVERSAL JOINT

24951-49100

Unavailable

12

WASHER

09160-14021

$6.63

13

NUT

09159-14010

$14.12

14

HOUSING, DRIVEN BEVEL GEAR

24941-45101

Unavailable

15

OIL SEAL

09283-35018

Unavailable

16

O RING

09280-70005

$6.23

17

SHIM (T:0.30) | (0~2)

24945-45101

Unavailable

17

SHIM (T:0.35) | (0~2)

24945-45100

Unavailable

17

SHIM (T:0.40) | (0~2)

24945-45102

Unavailable

17

SHIM (T:0.50) | (0~2)

24945-45103

Unavailable

17

SHIM (T:0.60) | (0~2)

24945-45104

Unavailable

18

O RING

09280-63004

$4.75

19

BOLT, REAR LH This part replaces 01517-08208.

01550-08207

$2.69

20

SHIM (T:0.30) | (0~2)

24935-45101

Unavailable

20

SHIM (T:0.35) | (0~2)

24935-45100

Unavailable

20

SHIM (T:0.40) | (0~2)

24935-45102

Unavailable

20

SHIM (T:0.50) | (0~2)

24935-45103

Unavailable

20

SHIM (T:0.60) | (0~2)

24935-45104

Unavailable

21

BOLT This part replaces 01517-08258.

01550-08257

$2.81

22

PLUG

09241-58001

Unavailable
