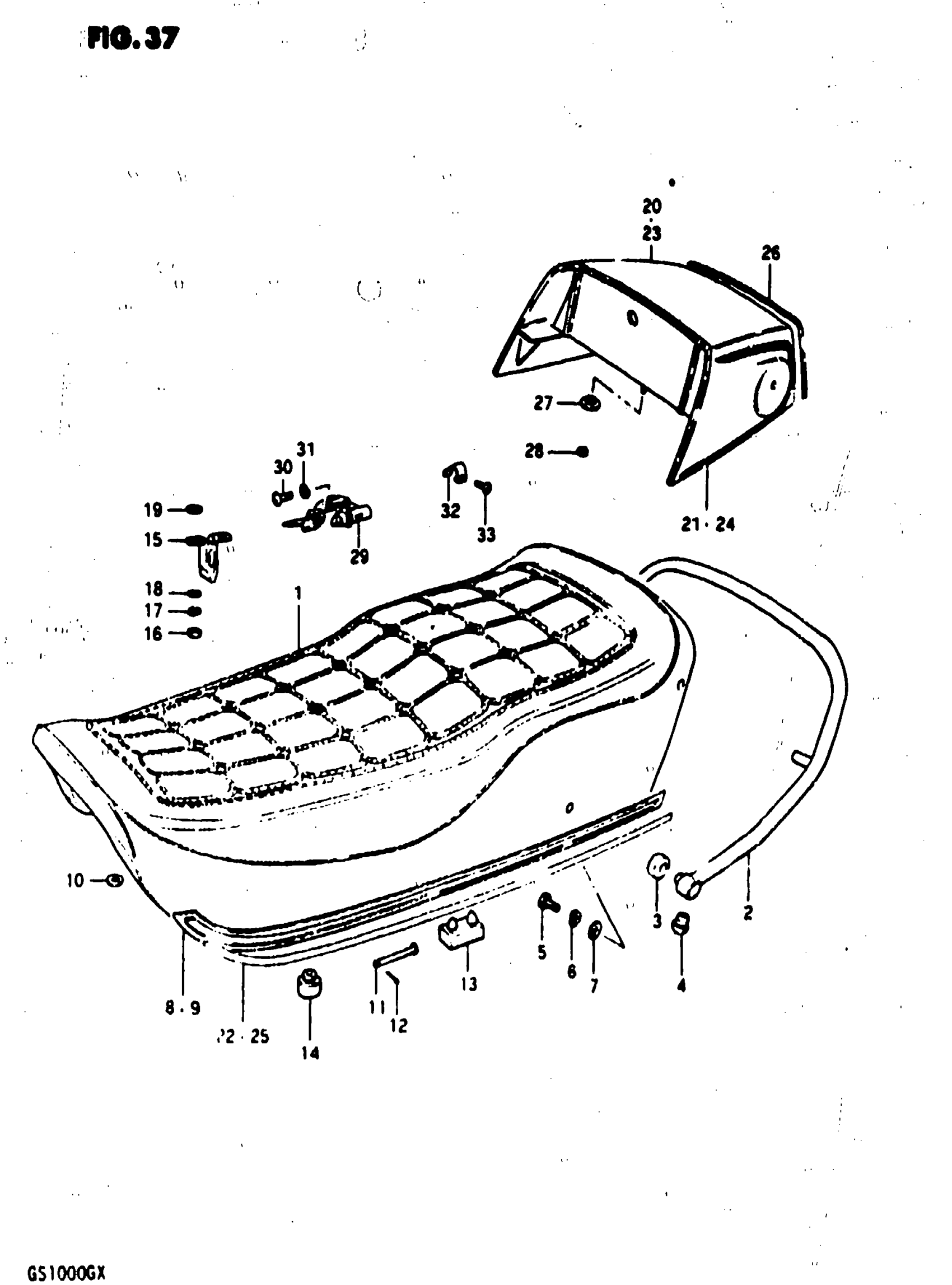

Suzuki GS1000G (1981) SEAT (GS1000GT) Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | BLACK; Includes Item(s) 2 - 10 This part replaces 45100-45100-41G.

45100-45150-48G

Unavailable

2

HANDLE, PILLION RIDER

46210-45101

Unavailable

3

CUSHION

46212-49000

Unavailable

4

END, HANDLE

46213-49000

Unavailable

5

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

WASHER This part replaces 08322-11088.

08322-01087

$2.13

8

MOULDING, RH

45191-45100

Unavailable

9

MOULDING, LH

45192-45100

Unavailable

10

NUT

09148-03008

Unavailable

11

PIN

09200-06018

$2.06

12

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

13

CUSHION

09321-08006

$2.90

14

CUSHION

09321-10001

$2.61

15

STRIKER, SEAT LOCK

45213-47000

Unavailable

16

.NUT This part replaces 08310-11068.

08310-00067

$2.13

17

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

18

.WASHER This part replaces 08322-11068.

08322-0106B

$2.26

19

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

20

NO DESCRIPTION AVAILABLE | BLACK; Includes Item(s) 21 This part replaces 45500-45860-08E.

45510-45101

Unavailable

21

TAIL COVER TAPE SET | GOLD

68160-45150-764

Unavailable

22

MOULDING TAPE SET | BLACK

68101-45860-019

Unavailable

23

NO DESCRIPTION AVAILABLE | BLUE; Includes Item(s) 24 This part replaces 45500-45100-08D.

45510-45101

Unavailable

24

TAIL COVER TAPE SET | GOLD

68110-45150-764

Unavailable

25

MOULDING TAPE SET | BLUE

68101-45860-08D

Unavailable

26

MOULDING, SEAT TAIL COVER

45522-45100

Unavailable

27

WASHER

09169-06016

$1.65

28

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

29

SEAT LOCK SET

95700-45813

Unavailable

30

SCREW This part replaces 02112-05128.

02112-05127

$1.97

31

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

32

SPRING, HELMET HOLDER

95722-45000

Unavailable

33

SCREW This part replaces 02112-05088.

02112-05087

$1.49
