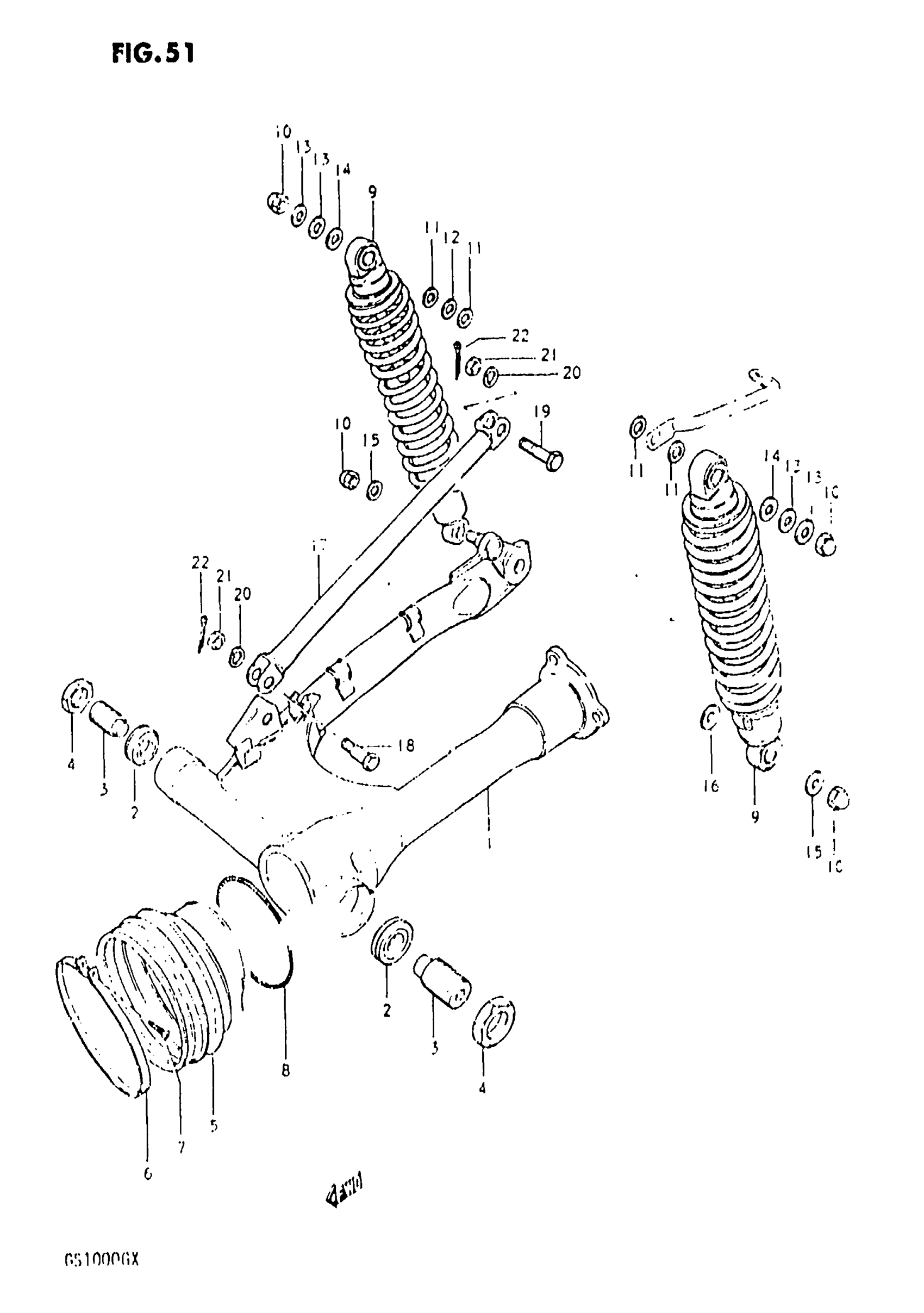

Suzuki GS1000G (1981) REAR SWINGING ARM Diagram

#

Description
Price

1

REAR SWINGING ARM SET | BLACK; Includes Item(s) 2

61100-45821-019

Unavailable

2

BEARING

09265-17012

$69.07

3

SHAFT, PIVOT

61213-45101

Unavailable

4

NUT, PIVOT RH | MODEL T This part replaces 09140-24009.

09140-24007

$3.89

4

NUT | MODEL X

09140-24007

$3.89

5

BOOT | MODEL T This part replaces 61372-45101.

61372-45103

Unavailable

5

BOOT | MODEL X This part replaces 61372-45102.

61372-45103

Unavailable

6

CLAMP This part replaces 09402-00304.

09402-00303

$5.76

7

SCREW This part replaces 03211-04255.

03211-0425B

$2.70

8

SPRING,PROPELLE This part replaces 61373-45100.

61373-4510V

Unavailable

9

SHOCK ABSORBER, REAR This part replaces 62100-45120.

62100-45301

Unavailable

10

NUT This part replaces 08313-11108.

08313-10107

$2.50

11

WASHER | 12.5x22x2.3 This part replaces 08322-11128.

08322-01127

$1.84

12

WASHER, FRONT AXLE | 12.5x24x3.2 This part replaces 09160-12012.

09160-12082

$3.29

13

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35

14

WASHER | 10.5x24x3.2 This part replaces 09160-10033.

09160-10128-XC0

$2.62

15

WASHER, LOWER (10.5X24X2.3) | 10.5x24x2.3 This part replaces 09160-10001.

09160-10093

$2.35

16

WASHER | 12.5x22x2.3 This part replaces 08322-11128.

08322-01127

$1.84

17

TORQUE LINK, REAR | BLACK

64310-45100-019

Unavailable

18

BOLT, FRONT

09111-10020

Unavailable

19

BOLT, REAR

09101-10017

Unavailable

20

WASHER This part replaces 08322-11108.

08322-01107

$2.15

21

NUT This part replaces 08314-41108.

08314-4010B

$2.50

22

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
