Partiron

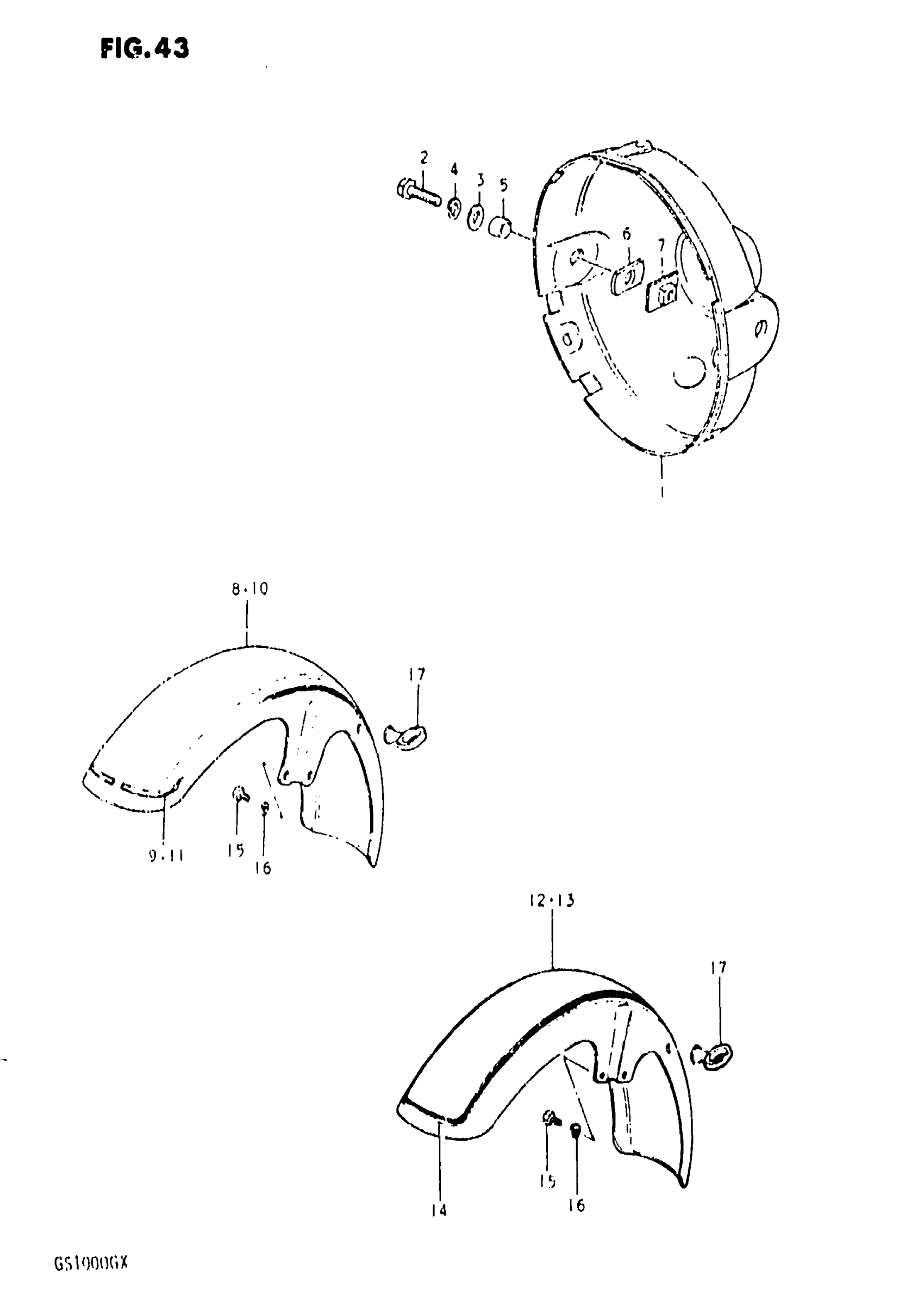

Suzuki GS1000G (1981) HEADLAMP HOUSING-FRONT FENDER Diagram

#

Description
Price

1

HOUSING, HEADLAMP (BLACK)

51811-45002-291

Unavailable

2

BOLT

01204-08257

$1.96

3

WASHER This part replaces 08322-11088.

08322-01087

$2.13

4

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

5

SPACER This part replaces 09180-08030.

09180-08187

$2.65

6

CUSHION This part replaces 09329-12002.

09329-12005

$2.32

7

PLATE

51860-45000

$4.43

8

FENDER, FRONT (BLACK) | MODEL T; Includes Item(s) 9

53100-49860-08E

Unavailable

9

TAPE | MODEL T

68155-45130-998

Unavailable

10

FENDER, FRONT (BLUE) | MODEL T; Includes Item(s) 11

53100-45100-08D

Unavailable

11

TAPE | MODEL T

68155-45130-72N

Unavailable

12

FENDER, FRONT (BLACK) | MODEL X

53100-45120-08E

Unavailable

13

FENDER, FRONT (MAROON) | MODEL X; Includes Item(s) 14

53100-45120-05L

Unavailable

14

TAPE | MODEL X

68150-45140-764

Unavailable

15

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68
