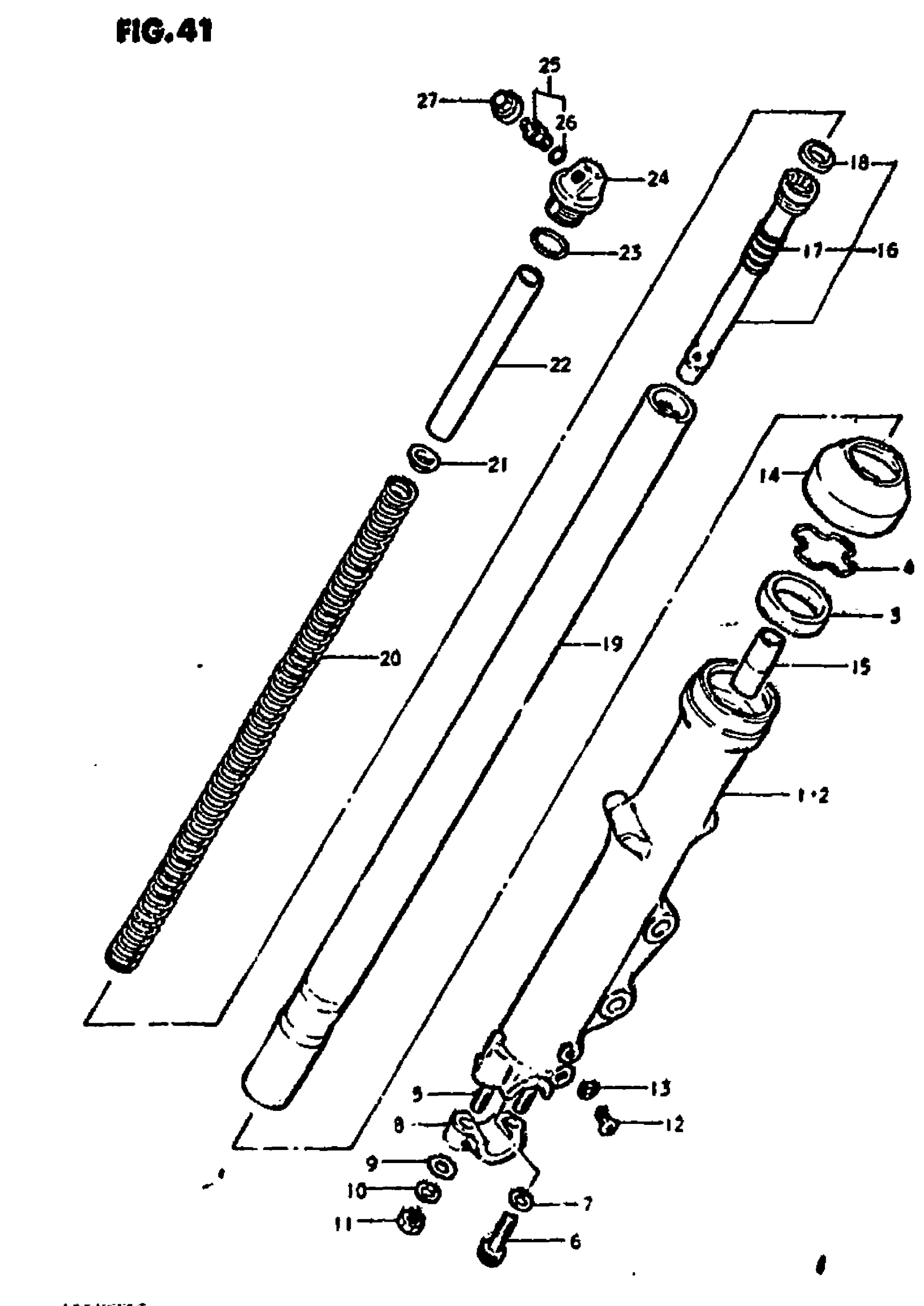

Suzuki GS1000G (1981) FRONT FORK Diagram

#

Description
Price

0

DAMPER ASSY, RH

51103-45101

Unavailable

0

DAMPER ASSY, LH | Includes Item(s) 1 - 27

51104-45101

Unavailable

1

OUTER TUBE, RH

51130-45101

Unavailable

2

OUTER TUBE, LH

51140-45101

Unavailable

3

SEAL, OIL This part replaces 51153-49000.

51153-08C20

$20.47

4

RING, STOPPER

51156-40301

$5.05

5

STUD BOLT (L:30) This part replaces 01421-08308.

09108-08142

$3.18

6

BOLT

51147-16510

$4.34

7

GASKET

51148-41310

$2.26

8

HOLDER, AXLE

51132-49000

Unavailable

9

WASHER This part replaces 08322-21088.

08322-01087

$2.13

10

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

11

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

12

SCREW This part replaces 02112-04088.

02112-04087

$1.49

13

GASKET

51183-03010

$2.07

14

DUST SEAL

51173-49002

$16.96

15

PIECE, OIL LOCK

51195-49071

$21.43

16

CYLINDER

51146-49000

Unavailable

17

SPRING

51177-49000

Unavailable

18

RING, PISTON

51196-49000

$7.78

19

INNER TUBE

51110-45100

Unavailable

20

SPRING

51171-49000

Unavailable

21

GUIDE, SPRING

51172-38010

Unavailable

22

SPACER

51176-45100

Unavailable

23

O RING

51117-16310

Unavailable

24

CAP

51351-41211

Unavailable

25

VALVE

51293-49001

Unavailable

26

O RING

51117-41211

Unavailable

27

CAP

51294-49000

Unavailable
