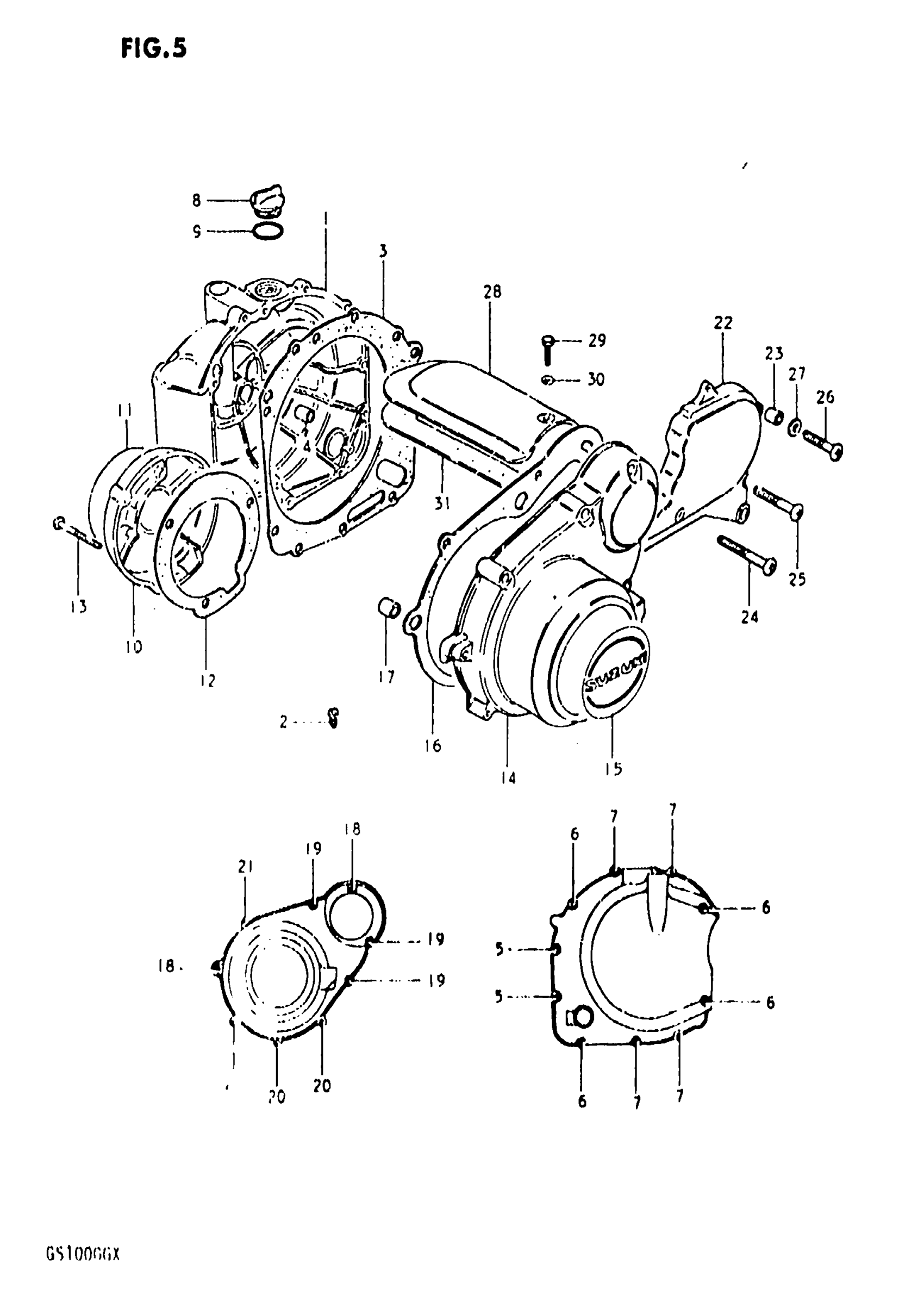

Suzuki GS1000G (1981) CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CLUTCH This part replaces 11340-49100.

11340-49101

Unavailable

2

JET, OIL GALLERY

09493-22009

Unavailable

3

GASKET,CLUTCH C This part replaces 11482-49100.

11482-49100-H17

Unavailable

4

PIN

09202-09004

Unavailable

5

SCREW This part replaces 02112-06358.

02112-06357

$1.78

6

SCREW This part replaces 02112-06308.

02112-06307

$1.97

7

SCREW This part replaces 02112-06258.

02112-06257

$1.78

8

CAP, OIL FILLER This part replaces 09259-30001.

09200-30810

$10.15

9

O RING

09280-32005

$1.99

10

COVER, CONTACT BREAKER This part replaces 11381-49001.

11381-49002

Unavailable

11

EMBLEM This part replaces 68235-45100.

68235-45200

Unavailable

12

GASKET

11491-45000

Unavailable

13

SCREW This part replaces 02112-05308.

02112-0530A

$2.05

14

COVER, GENERATOR This part replaces 11351-49001.

11351-49002

Unavailable

15

EMBLEM This part replaces 68233-45100.

68233-45200

$18.50

16

GASKET,MAG COVE This part replaces 11483-45000.

11483-45000-H17

$11.75

17

PIN This part replaces 09206-13001.

04211-13189

$2.19

18

SCREW (6X45) This part replaces 02112-06458.

02112-06457

$1.78

19

SCREW (6X40) This part replaces 02112-06408.

02112-06407

$1.78

20

SCREW This part replaces 02112-06358.

02112-06357

$1.78

21

SCREW This part replaces 02112-06308.

02112-06307

$1.97

22

COVER, SECONDARY DRIVE UNIT This part replaces 11360-49100.

11360-49101

Unavailable

23

PIN

04211-09129

$1.65

24

SCREW This part replaces 02112-06308.

02112-06307

$1.97

25

SCREW This part replaces 02112-06258.

02112-06257

$1.78

26

SCREW This part replaces 02112-06208.

02112-06207

$1.78

27

WASHER This part replaces 08322-21068.

08322-01067

$2.13

28

COVER, STARTER MOTOR

11382-49002

$46.38

29

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

30

WASHER This part replaces 08322-21058.

08322-01057

$2.13

31

GASKET MOTOR CO This part replaces 11493-45001.

11493-45002

Unavailable
