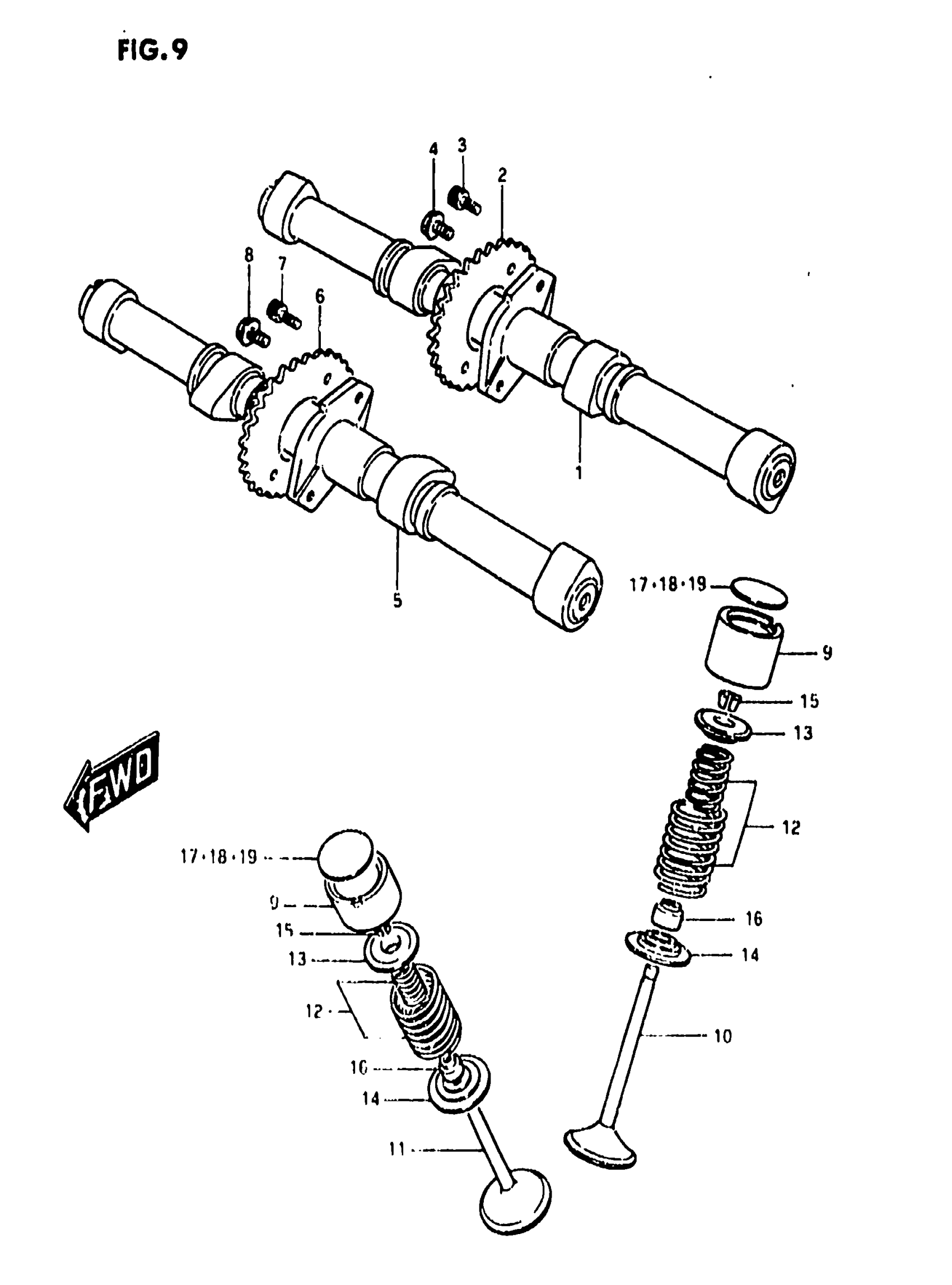

Suzuki GS1000G (1981) CAM SHAFT-VALVE Diagram

#

Description
Price

1

CAM SHAFT, INTAKE | 6 SCREW This part replaces 12711-49000.

12711-49001

Unavailable

1

CAM SHAFT, INTAKE | 7 SCREW

12711-49001

Unavailable

2

SPROCKET, INTAKE CAM SHAFT | Q6

12741-49001

Unavailable

2

SPROCKET, INTAKE CAM SHAFT | Q7

12741-49002

Unavailable

3

BOLT, NO.3 | 6 SCREW This part replaces 09106-06024.

07130-0610B

$3.21

4

BOLT | 7 SCREW

09103-07001

$2.43

5

CAM SHAFT, EXHAUST | 6 SCREW This part replaces 12721-49000.

12721-49001

Unavailable

5

CAM SHAFT, EXHAUST | 7 SCREW

12721-49001

Unavailable

6

SPROCKET, EXHAUST CAM SHAFT | 6

12751-49001

Unavailable

6

SPROCKET, EXHAUST CAM SHAFT | 7

12751-49002

Unavailable

7

BOLT, NO.3 | 6 SCREW This part replaces 09106-06024.

07130-0610B

$3.21

8

BOLT | 7 SCREW

09103-07001

$2.43

9

TAPPET This part replaces 12891-45000.

12891-45001

$56.05

10

VALVE, INTAKE

12911-49020

$62.48

11

VALVE, EXHAUST

12912-49020

Unavailable

12

SPRING SET,VALV This part replaces 12900-45810.

12920-45011

$18.48

13

RETAINER, VALVE SPRING This part replaces 12931-45000.

12931-45001

$8.12

14

SEAT, SPRING

12933-45001

$6.27

15

COTTER, VALVE

12932-45010

$2.37

16

OIL SEAL

09289-07002

$7.98

17

SHIM, TAPPET (T:2.15) | 8) This part replaces 12892-45000.

12892-45000-215

$21.65

17

SHIM, TAPPET (T:2.20) | 8) This part replaces 12892-45001.

12892-45000-220

$21.65

17

SHIM, TAPPET (T:2.25) | 8) This part replaces 12892-45002.

12892-45000-225

$21.65

17

SHIM, TAPPET (T:2.30) | 8) This part replaces 12892-45003.

12892-45000-230

$21.65

17

SHIM, TAPPET (T:2.35) | 8) This part replaces 12892-45004.

12892-45000-235

$21.65

17

SHIM, TAPPET (T:2.40) | 8) This part replaces 12892-45005.

12892-45000-240

$21.65

17

SHIM, TAPPET (T:2.45) | 8) This part replaces 12892-45006.

12892-45000-245

$20.88

17

SHIM, TAPPET (T:2.50) | 8) This part replaces 12892-45007.

12892-45000-250

$20.88

17

SHIM, TAPPET (T:2.55) | 8) This part replaces 12892-45008.

12892-45000-255

$20.88

18

SHIM, TAPPET (T:2.60) | 8) This part replaces 12892-45009.

12892-45000-260

$17.42

18

SHIM, TAPPET (T:2.65) | 8) This part replaces 12892-45010.

12892-45000-265

$17.75

18

SHIM, TAPPET (T:2.70) | 8) This part replaces 12892-45011.

12892-45000-270

$17.75

18

SHIM, TAPPET (T:2.75) | 8) This part replaces 12892-45012.

12892-45000-275

$21.65

18

SHIM, TAPPET (T:2.80) | 8) This part replaces 12892-45013.

12892-45000-280

$17.75

18

SHIM, TAPPET (T:2.85) | 8) This part replaces 12892-45014.

12892-45000-285

$21.65

18

SHIM, TAPPET (T:2.90) | 8) This part replaces 12892-45015.

12892-45000-290

$21.65

18

SHIM, TAPPET (T:2.95) | 8) This part replaces 12892-45016.

12892-45000-295

$21.65

18

SHIM, TAPPET (T:3.00) | 8) This part replaces 12892-45017.

12892-45000-300

Unavailable

19

SHIM, TAPPET (T:3.05) | 8) This part replaces 12892-45018.

12892-45000-305

$21.65

19

SHIM, TAPPET (T:3.10) | 8) This part replaces 12892-45019.

12892-45000-310

$21.65

20

SHIM SET | NOT SHOWNNOT SHOWN; Includes Item(s) 21 This part replaces 12800-45810.

12800-45811

Unavailable

21

CASE, TAPPET SHIM | NOT SHOWN This part replaces 99000-69480.

99000-69521

Unavailable
