1980 Suzuki GS1000E Starting Motor Diagram

← All diagrams

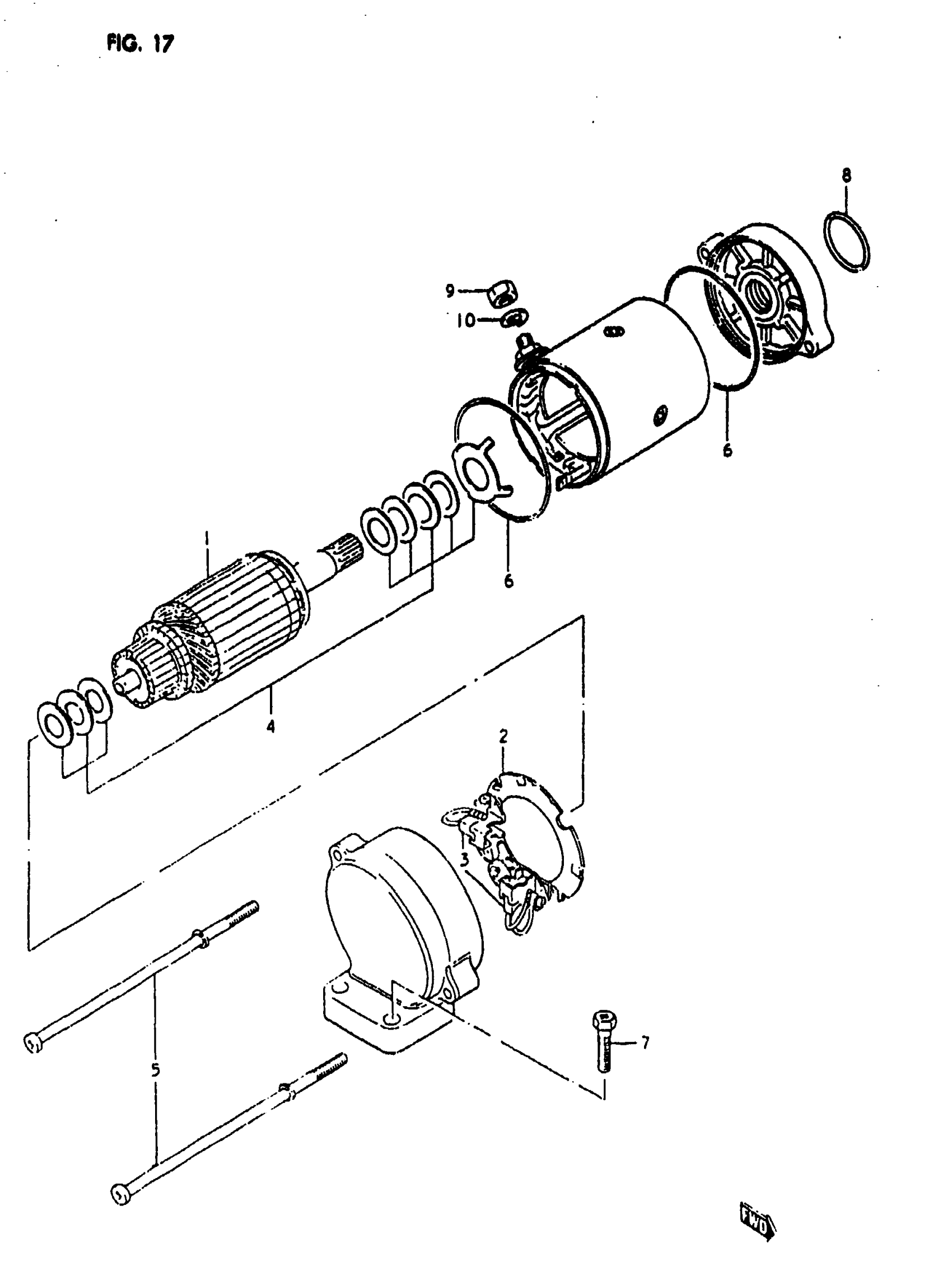

Find the part on the Starting Motor diagram for your 1980 Suzuki GS1000E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1980 Suzuki GS1000E Starting Motor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

0

MOTOR ASSY, STARTING | Includes Item(s) 1 - 6 This part replaces 31100-45040.

31100-49050

1
Out of stock

1

ARMATURE

31311-31040

1
Out of stock

2

HOLDER, BRUSH

31173-31040

1
Out of stock

3

BRUSH SET (2PCS./SET)

31131-31040

1
Out of stock

4

SHIM SET

31361-31040

1
Out of stock

5

BOLT This part replaces 31281-31040.

31280-26D00

1
Out of stock

6

O RING

31264-31040

2
Out of stock

7

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

2
Out of stock

8

.O-RING (D:3,ID:24.5) This part replaces 09280-24001.

09280-24003

1
Out of stock

9

.NUT This part replaces 08310-22068.

08310-00067

1
Out of stock

10

1

$2.28

In stock
