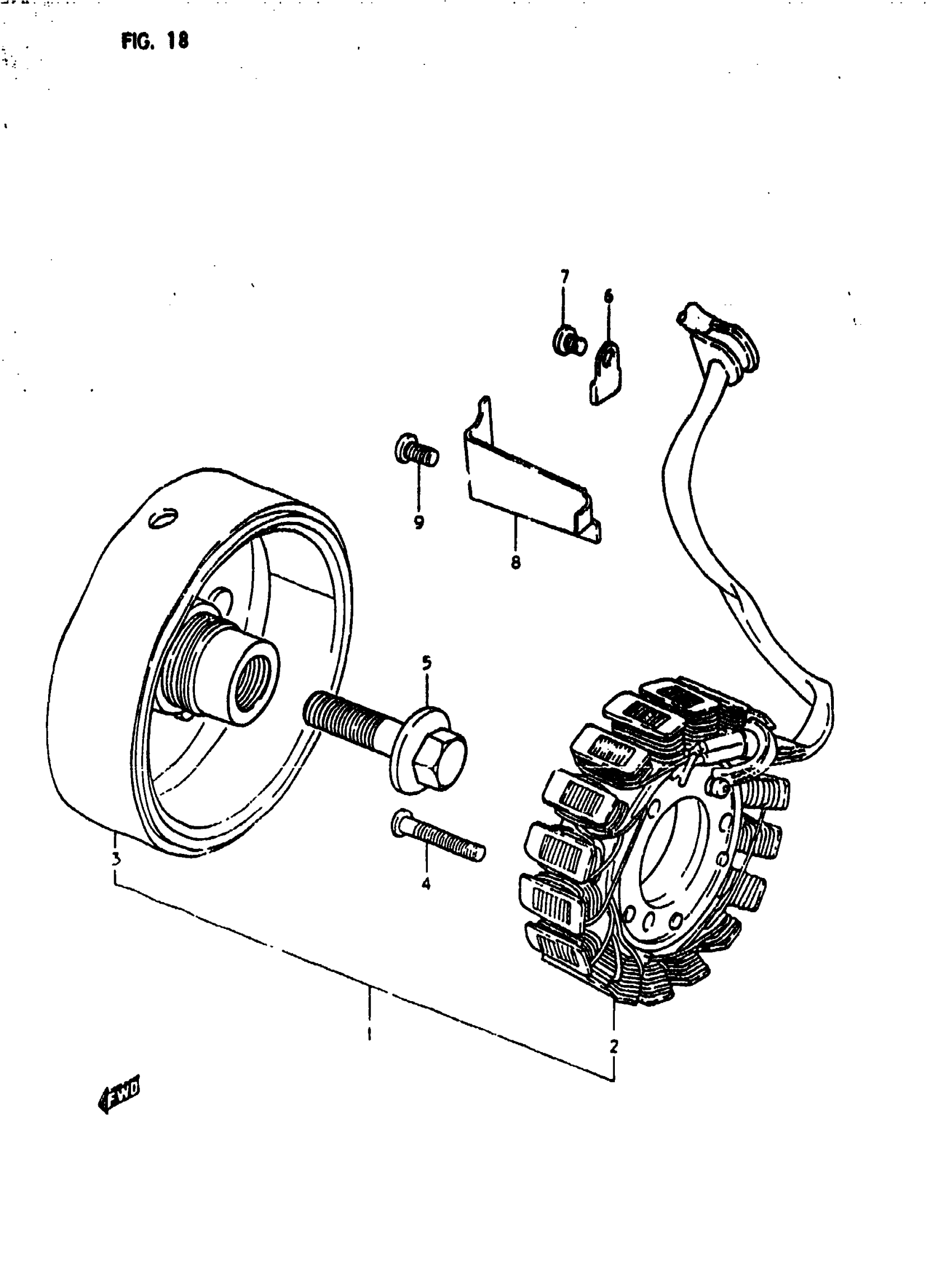

Suzuki GS1000E (1980) GENERATOR Diagram

#

Description

Price

1

STATOR | Includes Item(s) 2 - 3 This part replaces 31400-49011.

31401-49010

Unavailable

2

STATOR This part replaces 31401-49011.

31401-49010

Unavailable

3

ROTOR

31402-49011

Unavailable

4

SCREW This part replaces 02112-06308.

02112-06307

$1.99

5

BOLT This part replaces 31791-49000.

09103-12003

Unavailable

6

CLAMP

31497-45000

$2.17

7

SCREW This part replaces 02112-05068.

09125-05122

$2.07

8

CLAMP

31498-45000

$2.06

9

SCREW This part replaces 02112-06108.

02112-06107

$1.45
