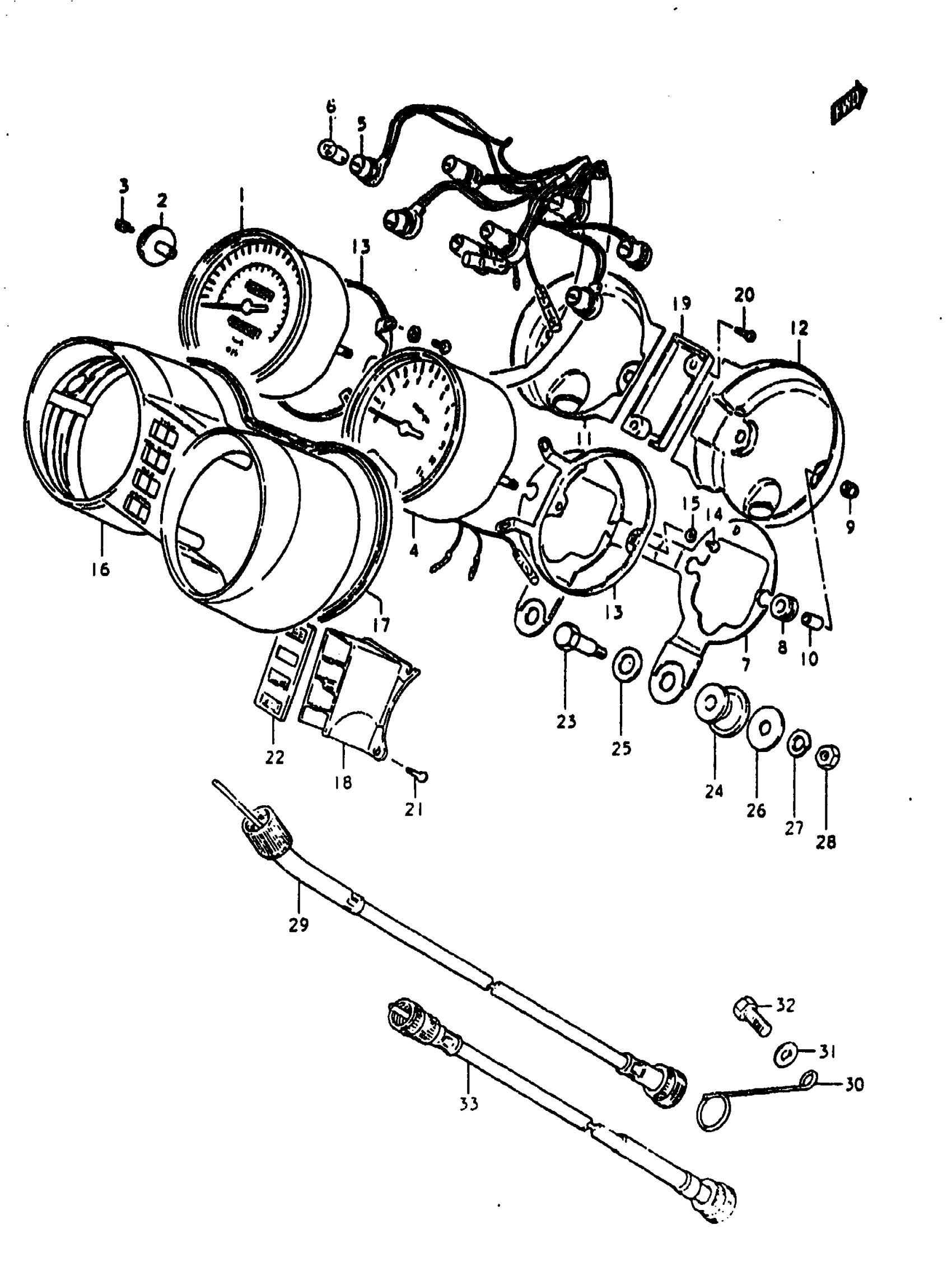

Suzuki GS1000E (1980) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

1

SPEEDOMETER (MILE & KILO SCALE | Includes Item(s) 2 - 3

34110-49170

Unavailable

2

KNOB

34124-49000

Unavailable

3

SCREW

34125-49000

Unavailable

4

NO DESCRIPTION AVAILABLE This part replaces 34210-49060.

34210-49040

Unavailable

5

SOCKET

34173-49000

Unavailable

6

BULB (12V, 3.4W)

09471-12001

$1.65

7

BRACKET

34950-49000

Unavailable

8

CUSHION

34189-49000

Unavailable

9

NUT This part replaces 08313-11057.

08313-1005A

$1.93

10

SPACER

34187-49000

Unavailable

11

COVER, SPEEDOMETER UNDER

34193-49000

Unavailable

12

COVER, TACHOMETER UNDER

34293-49000

Unavailable

13

HOLDER, METER

34195-49000

Unavailable

14

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

15

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

16

CASE, METER

34151-49000

Unavailable

17

CUSHION

34156-49000

Unavailable

18

CASE, PILOT BULB

36382-49000

Unavailable

19

FLATE, UNDER

36383-49000

Unavailable

20

SCREW

36492-49000

Unavailable

21

SCREW

34183-49000

Unavailable

22

LENS SET

36300-49810

Unavailable

23

BOLT This part replaces 09111-08040.

09111-08031

Unavailable

24

CUSHION This part replaces 34956-31000.

34956-31001

$4.37

25

WASHER This part replaces 08322-21108.

08322-01107

$2.15

26

WASHER, EXHAUST SUPPORT This part replaces 09160-08002.

09160-08135

$2.35

27

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

28

NUT This part replaces 08310-12088.

08310-00087

$2.13

29

CABLE ASSY,SPEE This part replaces 34910-45120.

34910-45124

Unavailable

30

CLAMP

34938-45100

$6.57

31

WASHER This part replaces 08322-21068.

08322-01067

$2.13

32

BOLT, CANISTER This part replaces 01107-06168.

01500-06167

$1.97

33

CABLE,TACHOMETE This part replaces 34940-49012.

34940-37312

$51.10
