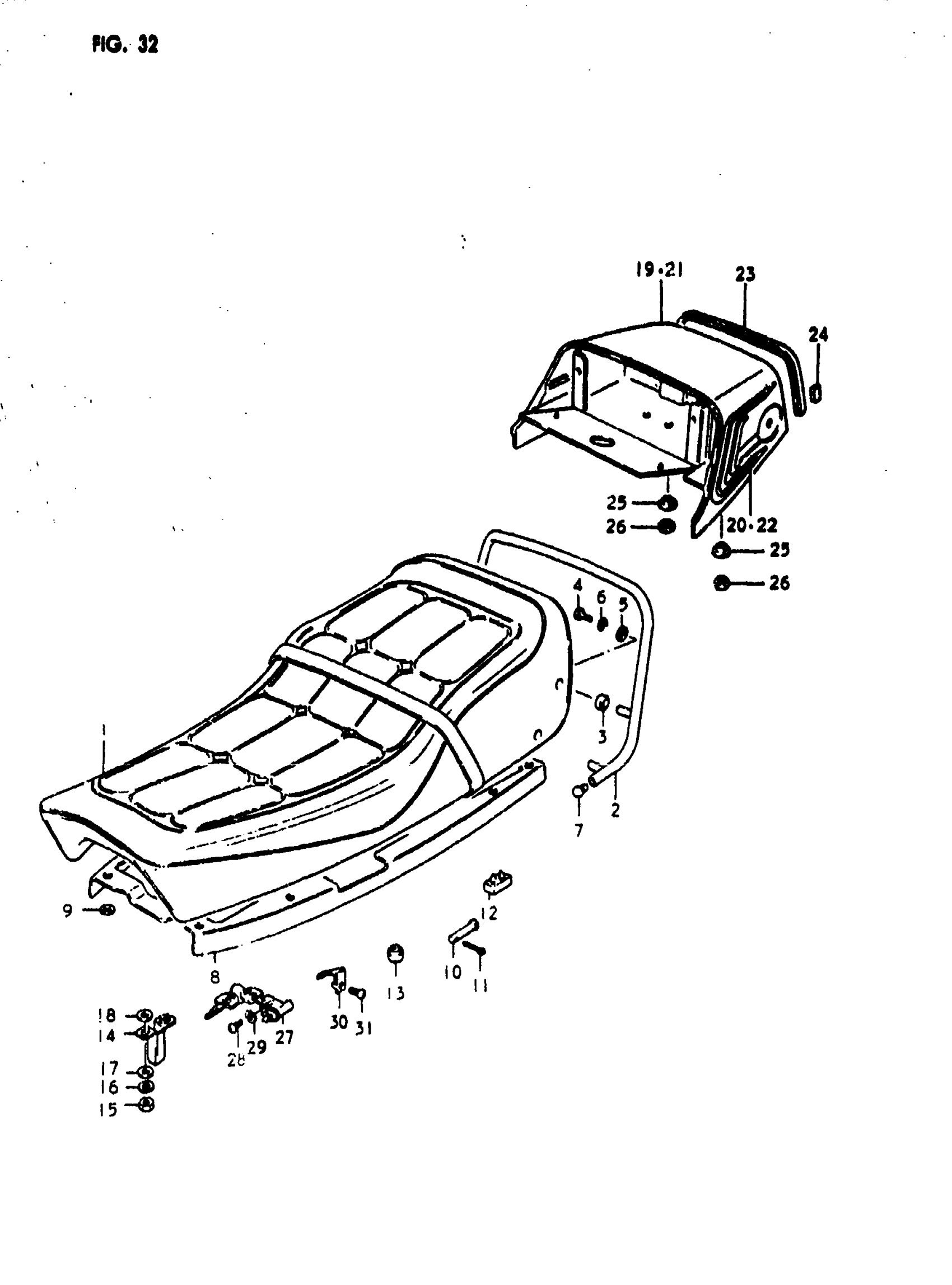

Suzuki GS1000E (1980) SEAT Diagram

#

Description
Price

1

SEAT (STEP TYPE) | Includes Item(s) 2 - 7

45100-49002-40P

Unavailable

2

HANDLE, PILLION RIDER

46211-49000

Unavailable

3

CUSHION

46212-49000

Unavailable

4

BOLT, REAR This part replaces 01107-08208.

01500-08207

$2.53

5

WASHER This part replaces 08322-11088.

08322-01087

$2.13

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

END, HANDLE

46213-49000

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 45191-49001-05L.

45191-49001

Unavailable

8

NO DESCRIPTION AVAILABLE This part replaces 45191-49001-03F.

45191-49001

Unavailable

9

NUT

09148-05012

$1.75

10

PIN

09200-06018

$2.06

11

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

12

CUSHION

09321-08006

$2.90

13

CUSHION

09321-10001

$2.61

14

STRIKER, SEAT LOCK

45213-47000

Unavailable

15

.NUT This part replaces 08310-11068.

08310-00067

$2.13

16

LOCK WASHER This part replaces 08321-21068.

08321-01067

$2.13

17

WASHER This part replaces 08322-21068.

08322-01067

$2.13

18

WASHER (6.5X20X1.2) This part replaces 09160-06027.

09160-06077

$1.91

19

NO DESCRIPTION AVAILABLE | Includes Item(s) 20 This part replaces 45500-49870-05L.

45510-49002

Unavailable

20

TAPE SET

68160-49060-72B

Unavailable

21

NO DESCRIPTION AVAILABLE | Includes Item(s) 22 This part replaces 45500-49002-03F.

45510-49002

Unavailable

22

TAPE SET

68160-49060-72D

Unavailable

23

MOULDING, SEAT TAIL COVER

45522-49000

Unavailable

24

CLIP

45523-49000

Unavailable

25

WASHER

09169-06016

$1.65

26

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

27

SEAT LOCK SET

95700-45813

Unavailable

28

SCREW This part replaces 02112-05128.

02112-05127

$1.97

29

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

30

SPRING, HOLEMET HOLDER

95722-45000

Unavailable

31

SCREW This part replaces 02112-05088.

02112-05087

$1.49
