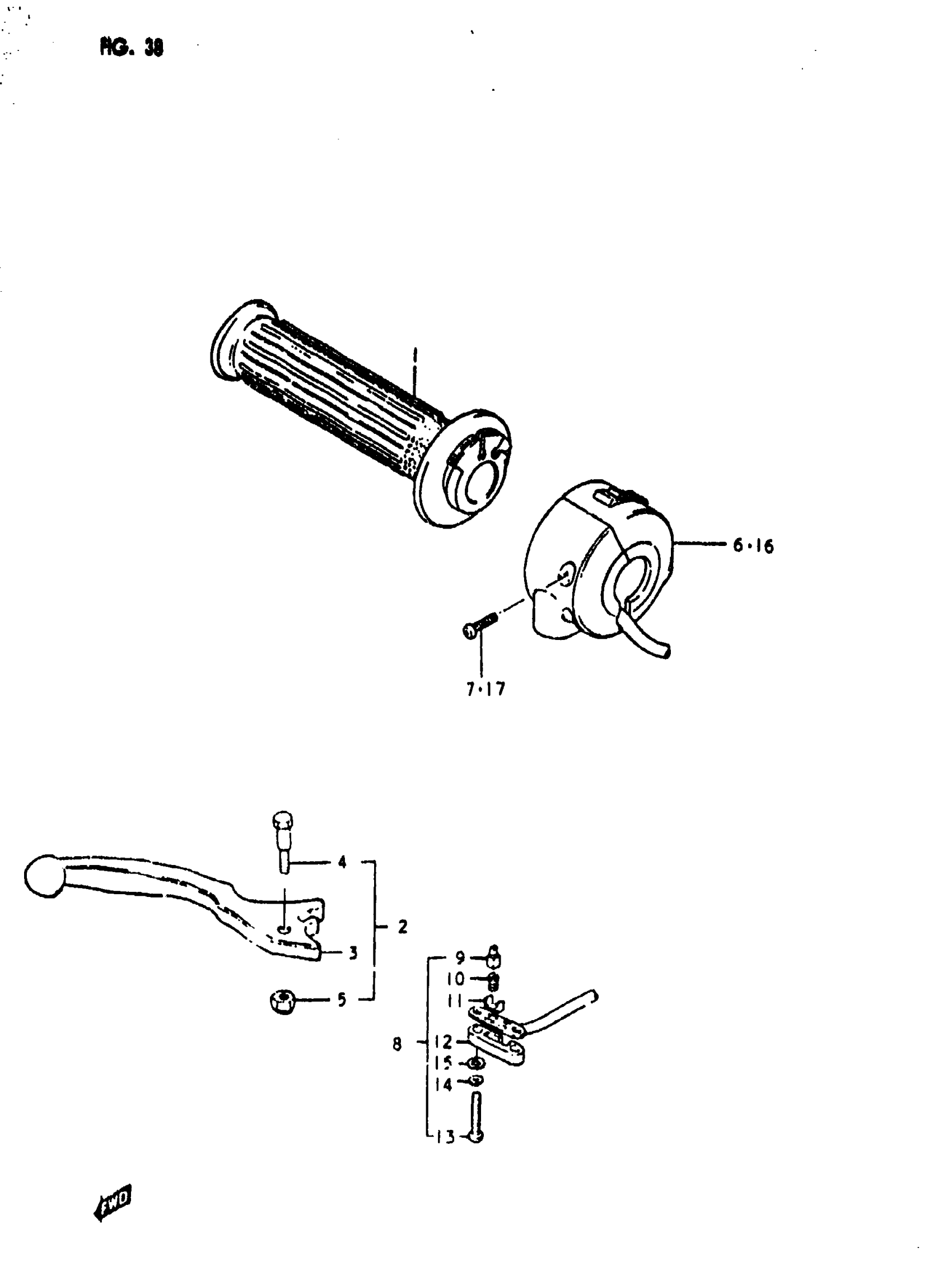

Suzuki GS1000E (1980) RIGHT HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, THROTTLE This part replaces 57110-44011.

57110-49510

Unavailable

2

LEVER, BRAKE | Includes Item(s) 3 - 5 This part replaces 57300-49101.

57420-49101

$34.15

3

LEVER, BRAKE

57420-49101

$34.15

4

BOLT

57431-18621

$8.28

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

SWITCH ASSY,HAN | Includes Item(s) 7 This part replaces 37200-49230.

37200-49232

Unavailable

7

SCREW This part replaces 37591-49210.

09125-05102

$1.61

8

SWITCH ASSY, ST | Includes Item(s) 9 - 15 This part replaces 57460-49100.

57460-45500

$35.23

9

HOLDER This part replaces 57461-18600.

57465-18601

$4.34

10

HOLDER This part replaces 57462-18600.

57465-18601

$4.34

11

HOLDER This part replaces 57463-18600.

57465-18601

$4.34

12

COVER

57481-33010

$5.84

13

SCREW This part replaces 09125-03105.

09125-03105-XC0

$2.23

14

WASHER,LOCK This part replaces 08321-21038.

09162-03001

$1.49

15

WASHER This part replaces 08322-21038.

08322-01037

$1.93

16

SWITCH ASSY,HAN | Includes Item(s) 17 This part replaces 37200-49210.

37200-49212

Unavailable

17

SCREW This part replaces 37591-49210.

09125-05102

$1.61
