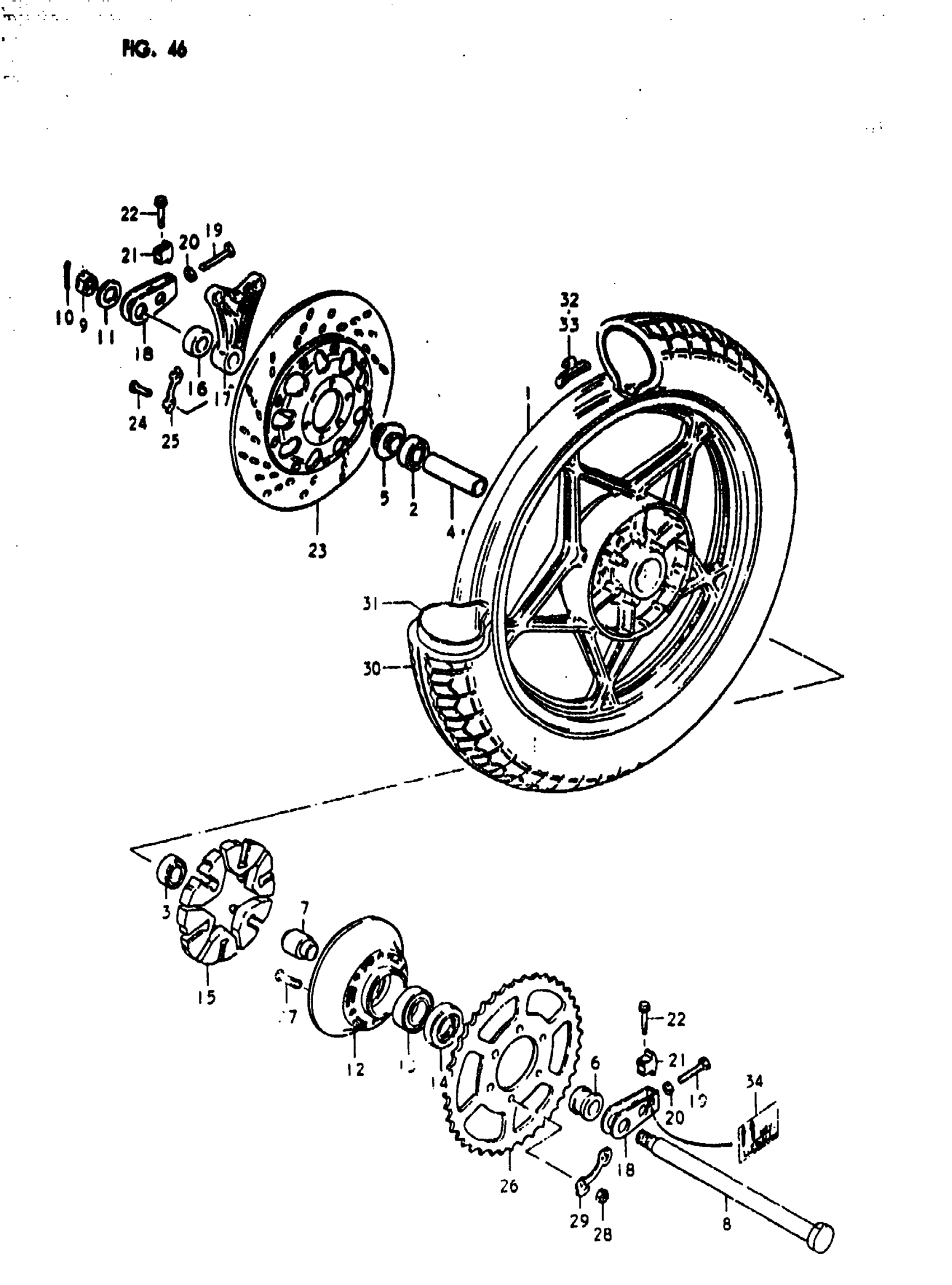

Suzuki GS1000E (1980) REAR WHEEL Diagram

#

Description
Price

1

WHEEL, REAR (MT2,50x17) (BLACK This part replaces 64111-49021.

64111-49001-12U

Unavailable

2

BEARING, RH

08133-62047

$28.61

3

BEARING, LH This part replaces 08153-62047.

09262-20042

$23.28

4

SPACER

09180-20062

$19.13

5

SPACER, AXLE, RH This part replaces 64740-45001.

64740-45002

Unavailable

6

SPACER, AXLE LH (20x33x28.4)

09180-20054

Unavailable

7

SPACER,RR HUB B This part replaces 64733-31000.

64733-3100V

Unavailable

8

AXLE,REAR This part replaces 64711-49000.

64711-4900V

Unavailable

9

NUT This part replaces 08314-31188.

08314-3118A

$5.16

10

PIN, REAR AXLE This part replaces 04111-40308.

04111-4030A

$1.49

11

WASHER (19x34x4)

09160-19008

Unavailable

12

DRUM, SPROCKET This part replaces 64611-31001.

64611-31003

Unavailable

13

BEARING, DRUM This part replaces 08113-63050.

09262-25073

$25.92

14

OIL SEAL

09285-33001

$13.27

15

SHOCK ABSORBER, HUB This part replaces 64651-31000.

64651-31001

$11.19

16

SPACER (20x38x12)

09180-20060

Unavailable

17

BRACKET, REAR CARIPERS

69721-47011

Unavailable

18

ADJUSTER, CHAIN This part replaces 61410-31000.

61410-31001

$49.02

19

BOLT (8X50) This part replaces 09104-08006.

09104-08034

$3.04

20

NUT This part replaces 08310-12088.

08310-00087

$2.13

21

SUPPORTER,CHAIN This part replaces 61433-31000.

61433-3100V

Unavailable

22

BOLT This part replaces 01517-08408.

01550-08407

$3.42

23

DISK, REAR BRAKE

59210-18450

Unavailable

24

BOLT (8x34)

09100-08094

$2.71

25

WASHER

09169-08016

$2.41

26

SPROCKET,REAR,N This part replaces 64511-49001.

64511-49002

Unavailable

27

BOLT This part replaces 09119-10002.

09105-10001

$2.87

28

NUT This part replaces 08310-12108.

08310-00107

$2.19

29

WASHER

09169-10007

Unavailable

30

TIRE (4.50V17) This part replaces 65100-49010.

65100-49230

Unavailable

31

TUBE, INNER (4.50-17)

65200-49010

Unavailable

32

BALANCER, WHEEL NO.2 | (0~3) This part replaces 55411-45100.

55412-17G00

$7.05

33

BARANCER (30G) | (0~3)

55412-45100

Unavailable

34

LABEL, CHAIN WEAR INDICATOR

68377-49000

Unavailable
