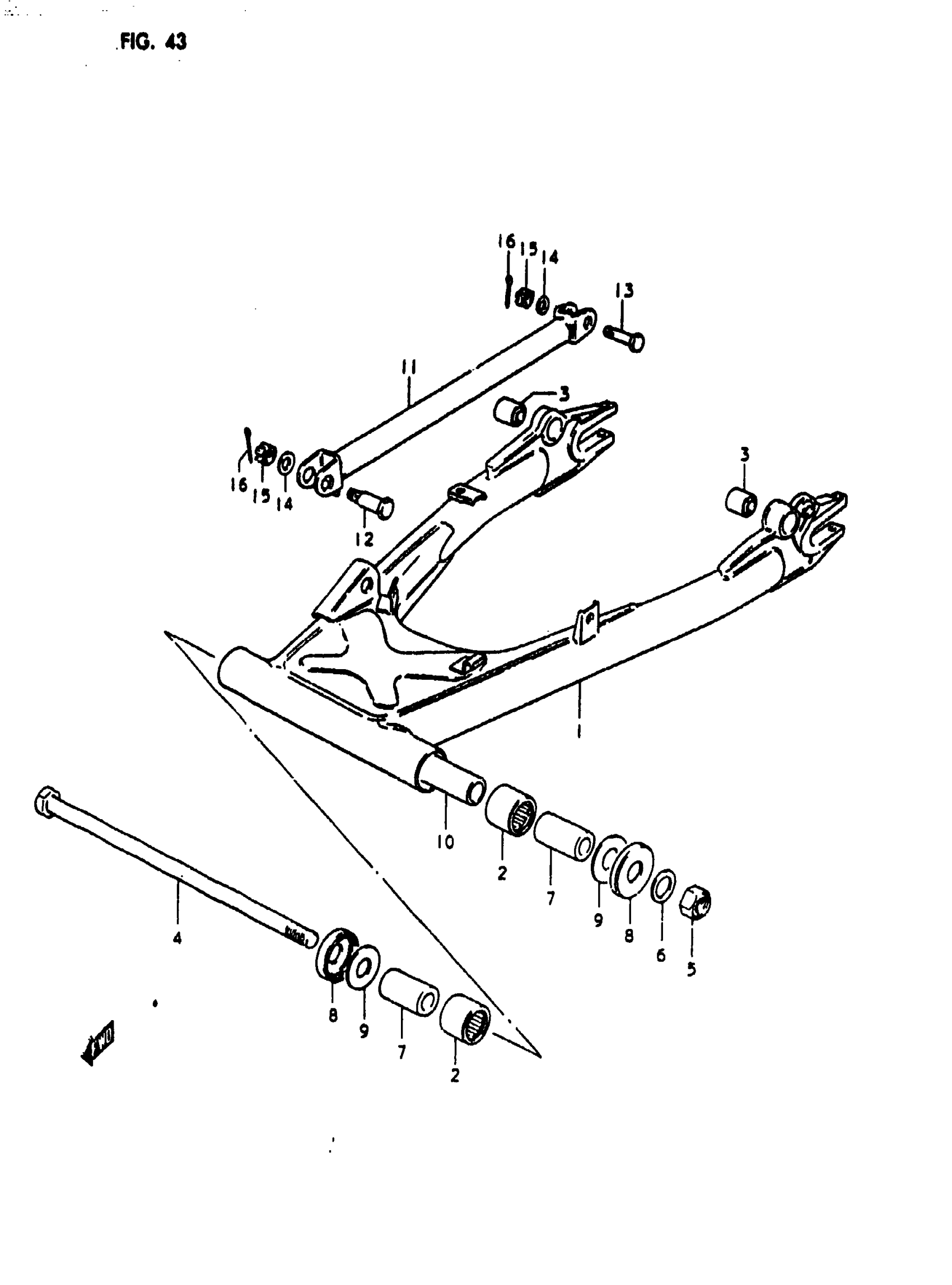

Suzuki GS1000E (1980) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 61100-49810-019.

61100-49812-019

Unavailable

2

BEARING

09263-25024

$25.92

3

BUSHING, REAR

09319-10008

$7.40

4

SHAFT, RR SWGAR This part replaces 61211-49000.

61211-49301

Unavailable

5

NUT This part replaces 08319-21168.

08319-2116A

$9.00

6

WASHER This part replaces 08322-11168.

08322-01167

$2.10

7

SPACER

61251-49000

$26.43

8

COVER, DUST SEAL This part replaces 61262-49001.

61262-49000

Unavailable

9

WASHER

08211-16381

$2.42

10

SPACER, CENTER

61282-49000

Unavailable

11

TORQUE LINK, REAR (BLACK)

64310-49000-019

Unavailable

12

BOLT,10X39 This part replaces 09111-10011.

09111-10022-XC0

Unavailable

13

BOLT, REAR

09101-10017

Unavailable

14

WASHER This part replaces 08322-11108.

08322-01107

$2.15

15

NUT This part replaces 08314-41108.

08314-4010B

$2.50

16

COTTER PIN This part replaces 04111-20208.

04111-2020A

$1.49
