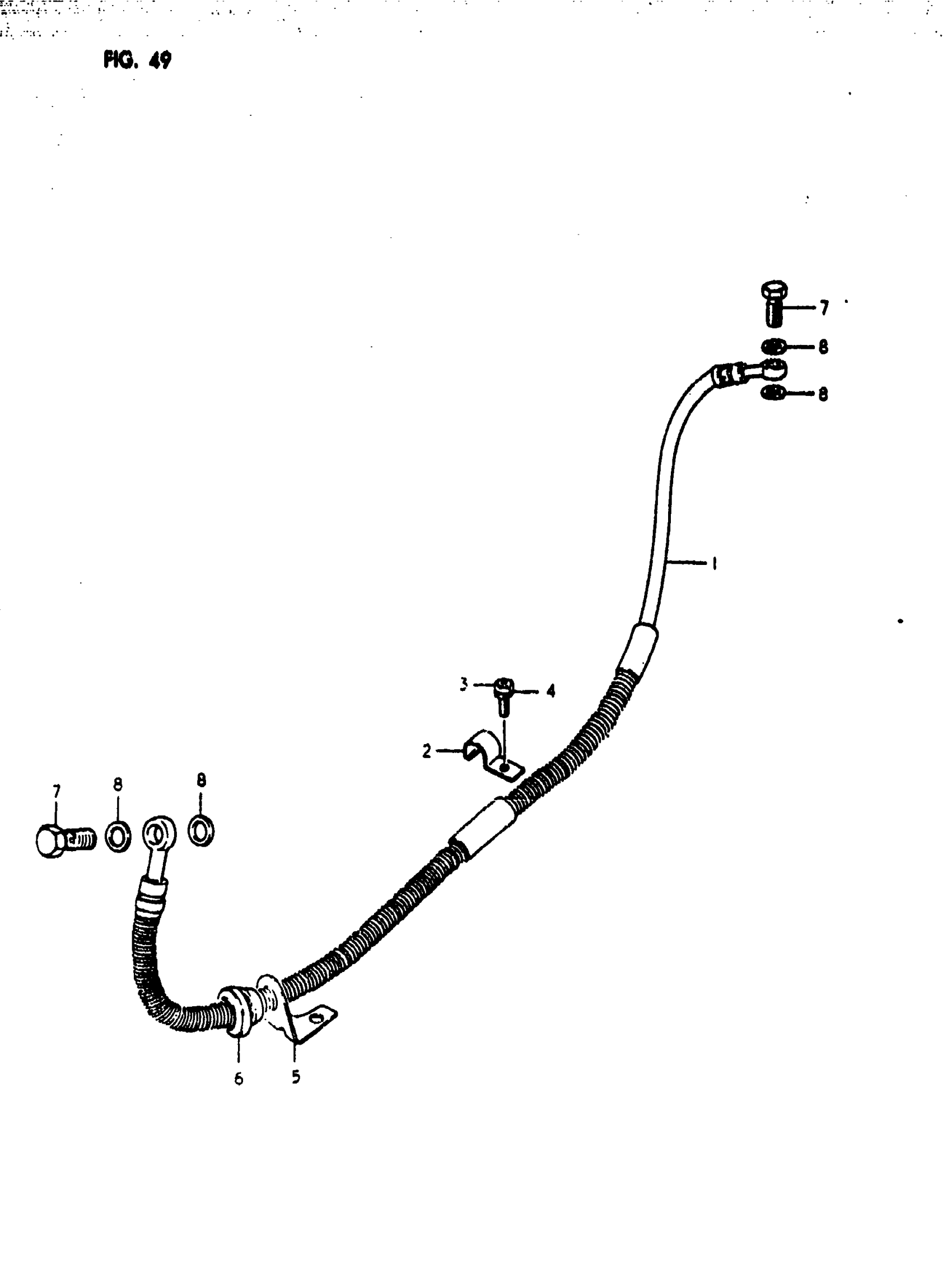

Suzuki GS1000E (1980) REAR BRAKE HOSE Diagram

#

Description

Price

1

HOSE, REAR BRAKE NO. 1

69480-49002

Unavailable

2

CLAMP

69268-49000

Unavailable

3

BOLT

09128-06013

$1.24

4

LOCK WASHER This part replaces 08321-21068.

08321-01067

$1.83

5

GUIDE, BRAKE HOSE

69243-47000

Unavailable

6

GROMMET,BRAKE H This part replaces 59244-36200.

59244-36201

$4.52

7

UNION This part replaces 09360-10007.

09360-10017

$3.08

8

WASHER (10X15X1.5) This part replaces 09161-10005.

09161-10009

$1.83
