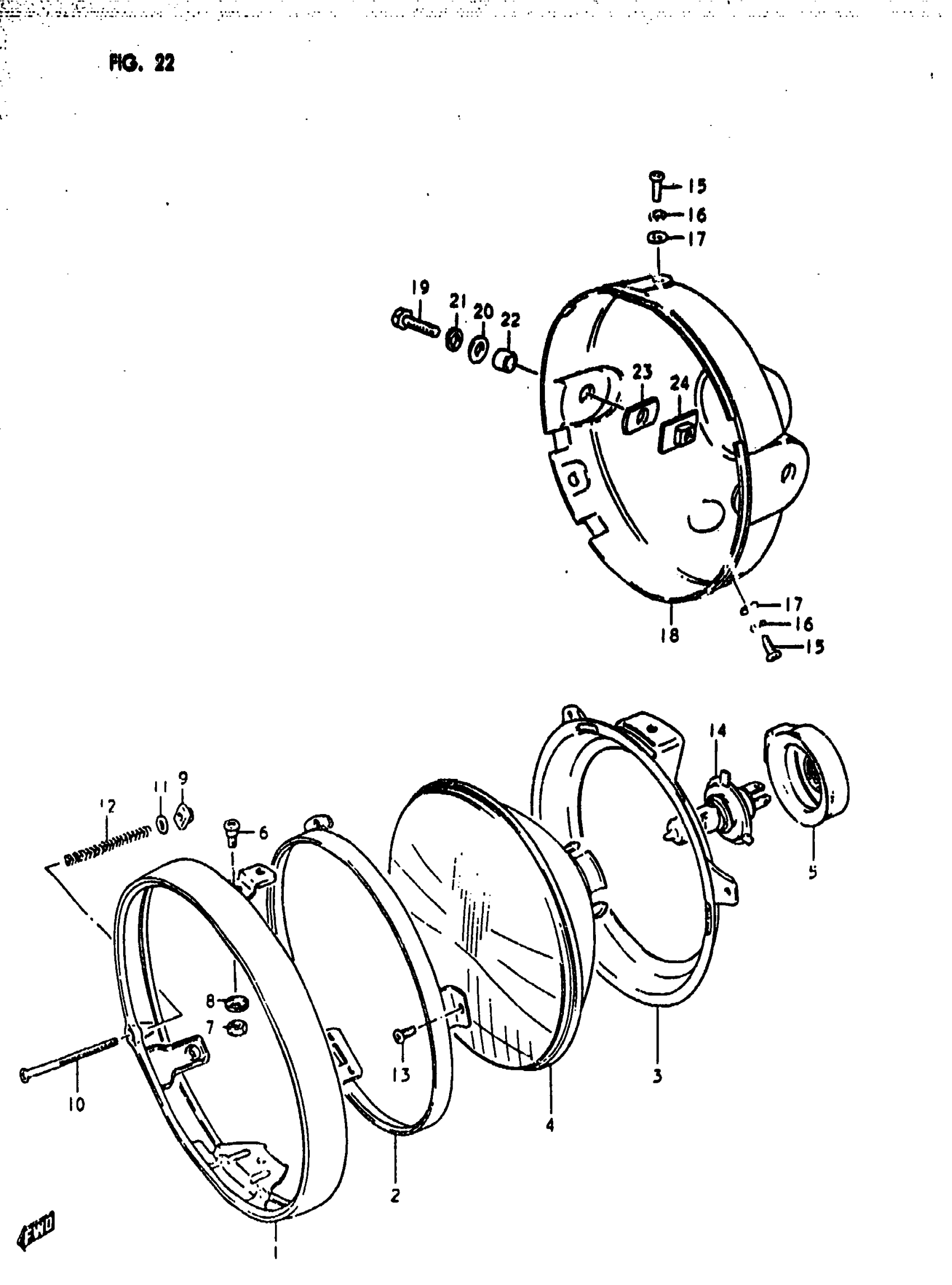

Suzuki GS1000E (1980) HEADLAMP Diagram

#

Description
Price

0

HEADLAMP ASSY | Includes Item(s) 1 - 13

35100-49010-999

Unavailable

1

RIM

35111-45600

Unavailable

2

RING

35127-45600

$38.46

3

RING, MOUNTING

35130-45600

Unavailable

4

UNIT

35121-49010

Unavailable

5

COVER This part replaces 35173-49020.

35173-45200

Unavailable

6

SCREW,HEAD LAMP This part replaces 35136-25611.

35136-35400

$4.58

7

NUT This part replaces 35135-25611.

08316-1005A

$2.19

8

SPACER

35133-45600

Unavailable

9

NUT

35135-45600

$3.65

10

SCREW This part replaces 35151-27630.

35151-45230

Unavailable

11

WASHER

35157-27630

$3.25

12

SPRING

35154-45600

Unavailable

13

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

14

BULB (12V, 60/55W, H4)

09471-12060

$25.15

15

SCREW This part replaces 09125-05022.

09125-05115

$3.20

16

WASHER This part replaces 09162-05003.

09162-05002

$1.49

17

WASHER

09169-06021

$2.36

18

HOUSING, HEADLAMP (BLACK)

51811-45002-291

Unavailable

19

BOLT

01204-08257

$1.96

20

WASHER This part replaces 08322-11088.

08322-01087

$2.13

21

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

22

SPACER This part replaces 09180-08030.

09180-08187

$2.65

23

CUSHION This part replaces 09329-12002.

09329-12005

$2.32

24

PLATE

51860-45000

$4.43
