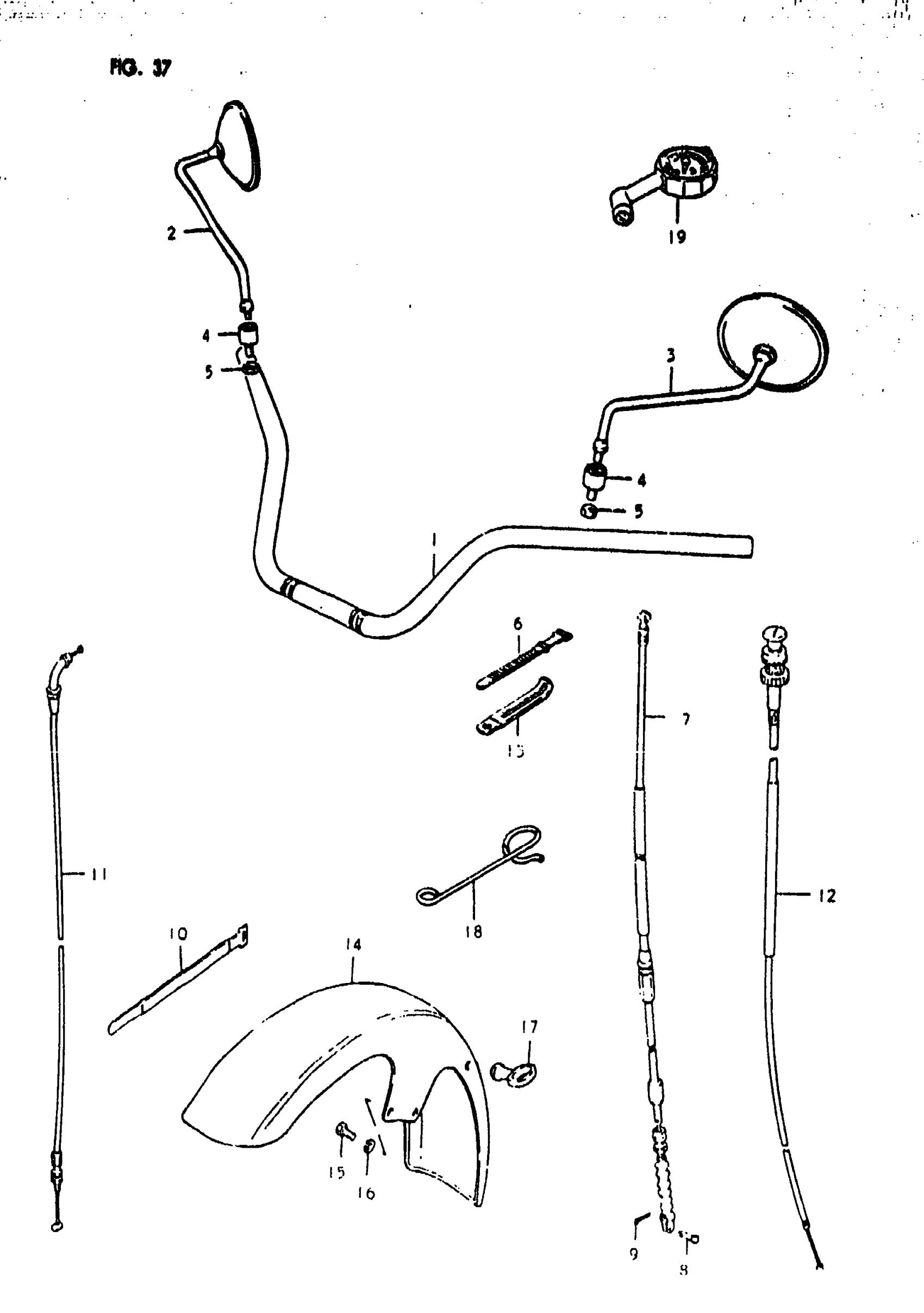

Suzuki GS1000E (1980) HANDLEBAR - FRONT FENDER Diagram

#

Description
Price

1

HANDLEBAR This part replaces 56110-45110.

56110-45400

Unavailable

2

MIRROR ASSY,RR This part replaces 56500-45012.

56500-45014

$64.82

3

MIRROR ASSY,RR This part replaces 56600-45012.

56600-45014

$64.82

4

CUSHION, REAR VIEW MIRROR This part replaces 56700-31001.

56700-45400

$21.90

5

NUT This part replaces 08310-22108.

08310-00107

$2.19

6

BAND (L:120)

09407-12402

$3.04

7

CABLE, CLUTCH (NEUTRAL TYPE)

58200-49001

Unavailable

8

PIN

09200-06011

Unavailable

9

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

10

CLAMP This part replaces 09407-18301.

09407-18302

$2.28

11

CABLE, THROTTLE This part replaces 58300-45400.

58300-44232

Unavailable

12

CABLE, STARTER

58400-45110

Unavailable

13

CLAMP This part replaces 09404-06403.

09404-06039

$1.74

14

FENDER, FRONT

53110-49011

Unavailable

15

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

16

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

17

GUIDE, METER CABLE This part replaces 58621-21203.

58621-21204

$6.68

18

GUIDE, CLUTCH CABLE

58621-45100

Unavailable

19

GAUGE, FRONT FORK AIR

96200-41330

Unavailable
