1980 Suzuki GS1000E Gear Shifting Diagram

← All diagrams

Find the part on the Gear Shifting diagram for your 1980 Suzuki GS1000E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

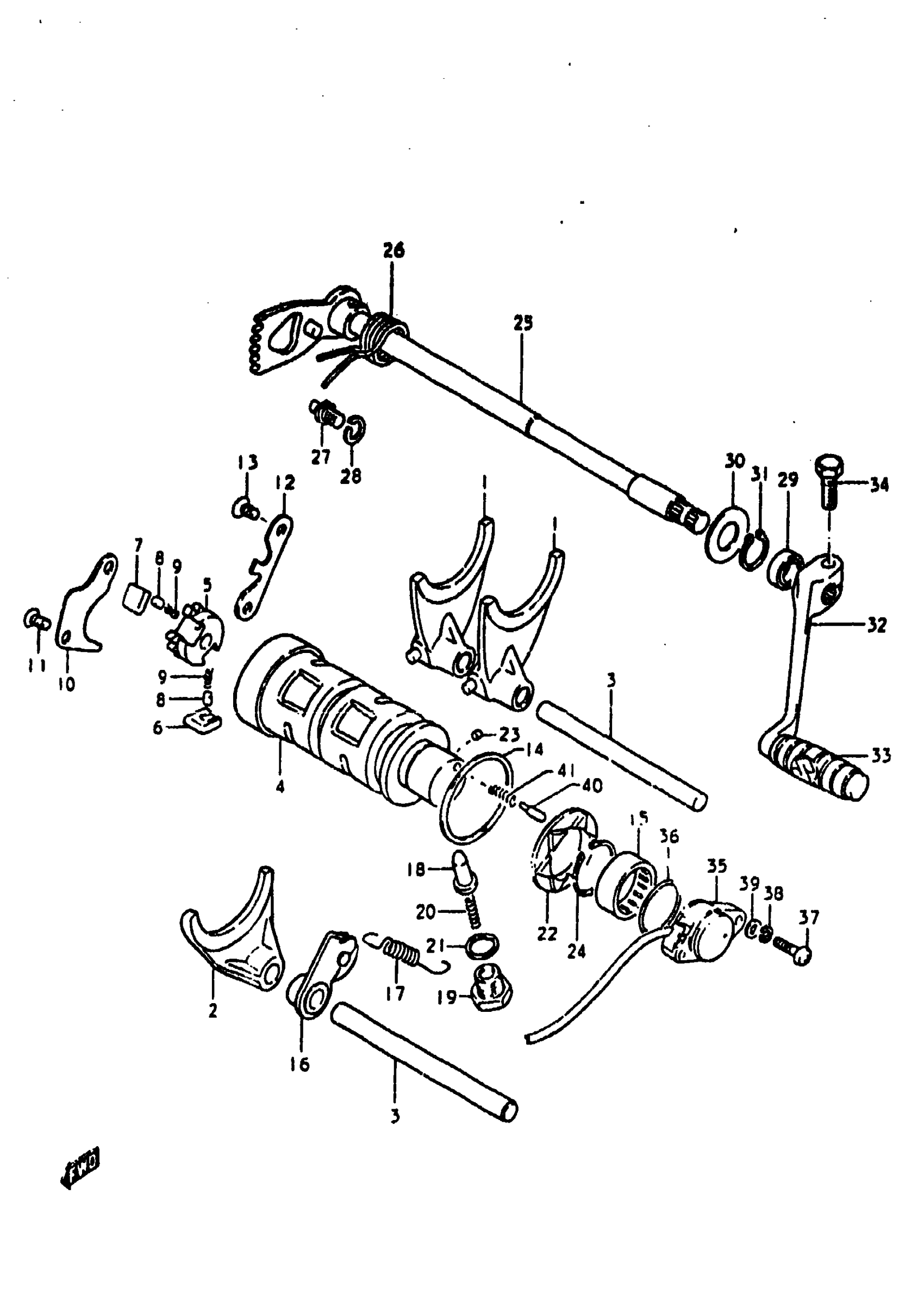

1980 Suzuki GS1000E Gear Shifting Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FORK, DRIVEN GEAR SHIFTING | 4TH & 5TH

25211-34000

2
Out of stock

2

NO DESCRIPTION AVAILABLE | 3RD This part replaces 25231-34000.

25231-34X00

1
Out of stock

3

SHAFT, GEAR SHIFT FORK NO.1 This part replaces 25411-31000.

25411-18900

2
Out of stock

4

CAM, GEAR SHIFTING

25310-49000

1
Out of stock

5

GEAR, GEAR SHIFT CAM DRIVEN This part replaces 25322-11000.

25322-31310

1
Out of stock

6

PAWL, GEAR SHIFT NO.1 This part replaces 25323-11000.

25323-34201

1
Out of stock

7

PAWL, GEAR SHIFT NO.2 This part replaces 25324-11000.

25324-34201

1
Out of stock

8

PIN

09261-05003

2
Out of stock

9

SPRING

09440-04003

2
Out of stock

10

LIFTER, PAWL

25331-11001

1
Out of stock

11

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

12

GUIDE, CAM

25341-18000

1
Out of stock

13

SCREW This part replaces 02122-06128.

02122-06127

2
Out of stock

14

WASHER

09160-40001

1
Out of stock

15

BEARING

09263-25018

1
Out of stock

16

STOPPER, CAM

25350-34000

1
Out of stock

17

SPRING

09443-08012

1
Out of stock

18

STOPPER, GEAR SHIFT CAM NO.2

25351-30010

1
Out of stock

19

HOLDER, STOPPER

25354-30000

1
Out of stock

20

SPRING

09440-06018

1
Out of stock

21

GASKET

09168-14004

1
Out of stock

22

PLATE, STOPPER

25381-45000

1
Out of stock

23

PIN This part replaces 06211-04063.

04221-04069

1
Out of stock

24

CIRCLIP, REAR FINAL DRIVE This part replaces 08331-11258.

08331-31256

1
Out of stock

25

NO DESCRIPTION AVAILABLE This part replaces 25510-49000.

25510-49001

1
Out of stock

26

SPRING This part replaces 09444-26012.

09444-26013

1
Out of stock

27

STOPPER, ARM This part replaces 25671-01000.

25671-01011

1
Out of stock

28

1

$2.28

In stock

29

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

1
Out of stock

30

WASHER (12.5X26X1.6) This part replaces 09160-12020.

09160-12089

1
Out of stock

31

CIRCLIP This part replaces 09384-12001.

08331-3112A

1
Out of stock

32

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 33

25600-49000

1
Out of stock

33

.RUBBER,GEAR SHIFT PEDAL This part replaces 25652-16500.

25652-16510

1
Out of stock

34

BOLT, REAR This part replaces 01107-08208.

01500-08207

1
Out of stock

35

BODY, GEAR SHIFTING SWITCH

37720-44600

1
Out of stock

36

O RING (D:2.4,ID:26.2) This part replaces 09280-26003.

09280-26005

1
Out of stock

37

SCREW This part replaces 02112-05208.

02112-05207

2
Out of stock

38

LOCK WASHER This part replaces 08321-21058.

08321-0105A

2
Out of stock

39

WASHER This part replaces 08322-21058.

08322-01057

2
Out of stock

40

CONTACT

09209-05011

1
Out of stock

41

SPRING

09440-04010

1
Out of stock
