1980 Suzuki GS1000E Chain Case - Shock Absorber Diagram

← All diagrams

Find the part on the Chain Case - Shock Absorber diagram for your 1980 Suzuki GS1000E, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

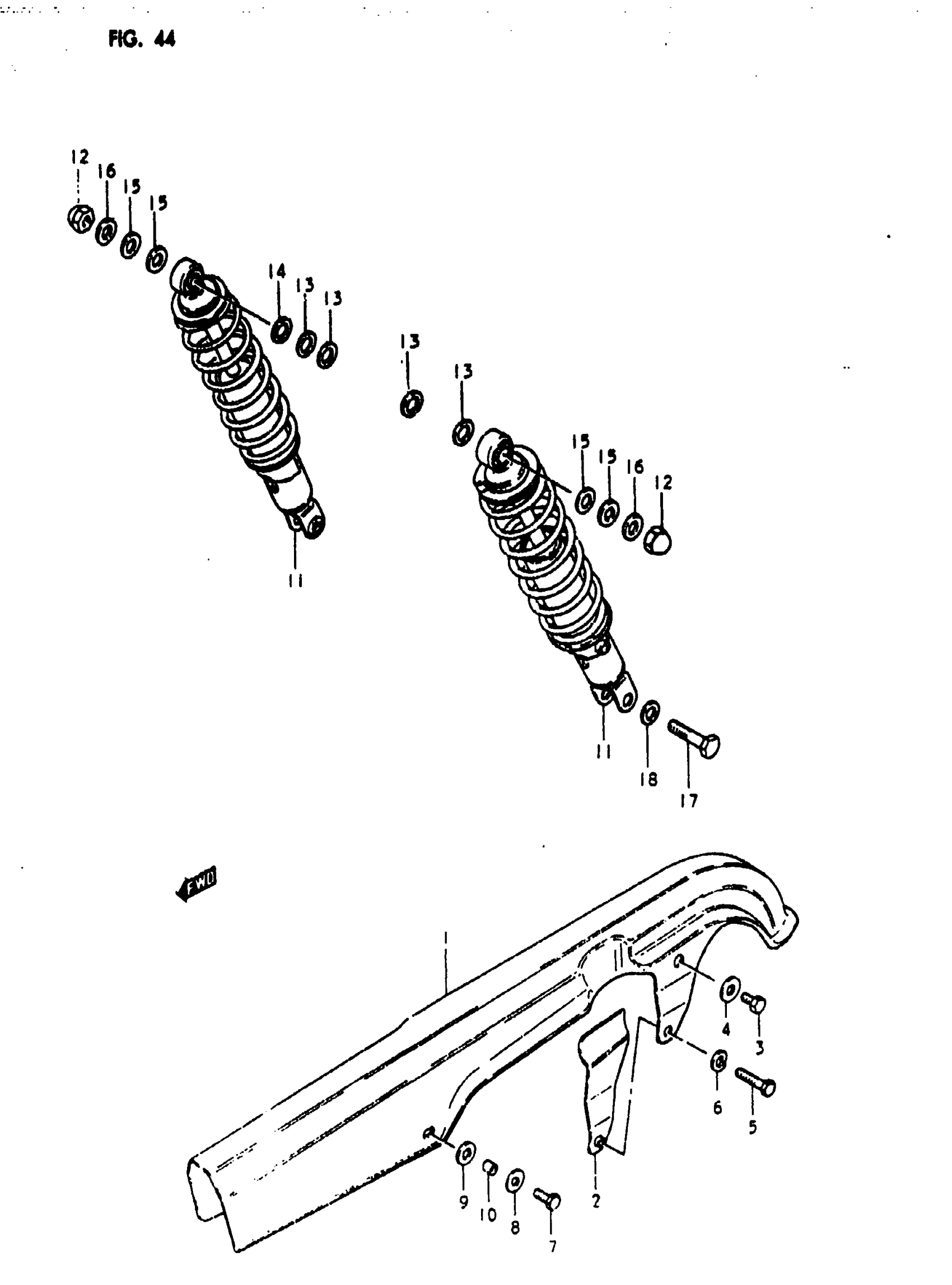

1980 Suzuki GS1000E Chain Case - Shock Absorber Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CHAIN CASE (BLACK) This part replaces 61311-49001-019.

61311-49002-019

1
Out of stock

2

REINFORCEMENT, CHAIN CASE

61381-45000

1
Out of stock

3

BOLT

09100-06011

1
Out of stock

4

WASHER

09169-06010

1
Out of stock

5

BOLT This part replaces 01107-06258.

01500-06257

1
Out of stock

6

1

$2.28

In stock

7

BOLT This part replaces 01107-06108.

01500-06107

1
Out of stock

8

WASHER (6.5X18X1.0)

09160-06028

1
Out of stock

9

FUEL TANK UPPER WASHER This part replaces 09320-08005.

09161-08006

1
Out of stock

10

SPACER This part replaces 09180-06032.

09180-06246

1
Out of stock

11

SHOCK ABSORBER, REAR

62100-49010

2
Out of stock

12

NUT This part replaces 08313-11108.

08313-10107

2
Out of stock

13

WASHER This part replaces 08322-11128.

08322-01127

4
Out of stock

14

WASHER, FRONT AXLE This part replaces 09160-12012.

09160-12082

1
Out of stock

15

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

4
Out of stock

16

WASHER This part replaces 09160-10033.

09160-10128-XC0

2
Out of stock

17

BOLT

09104-10002

2
Out of stock

18

WASHER This part replaces 08322-11108.

08322-01107

2
Out of stock
