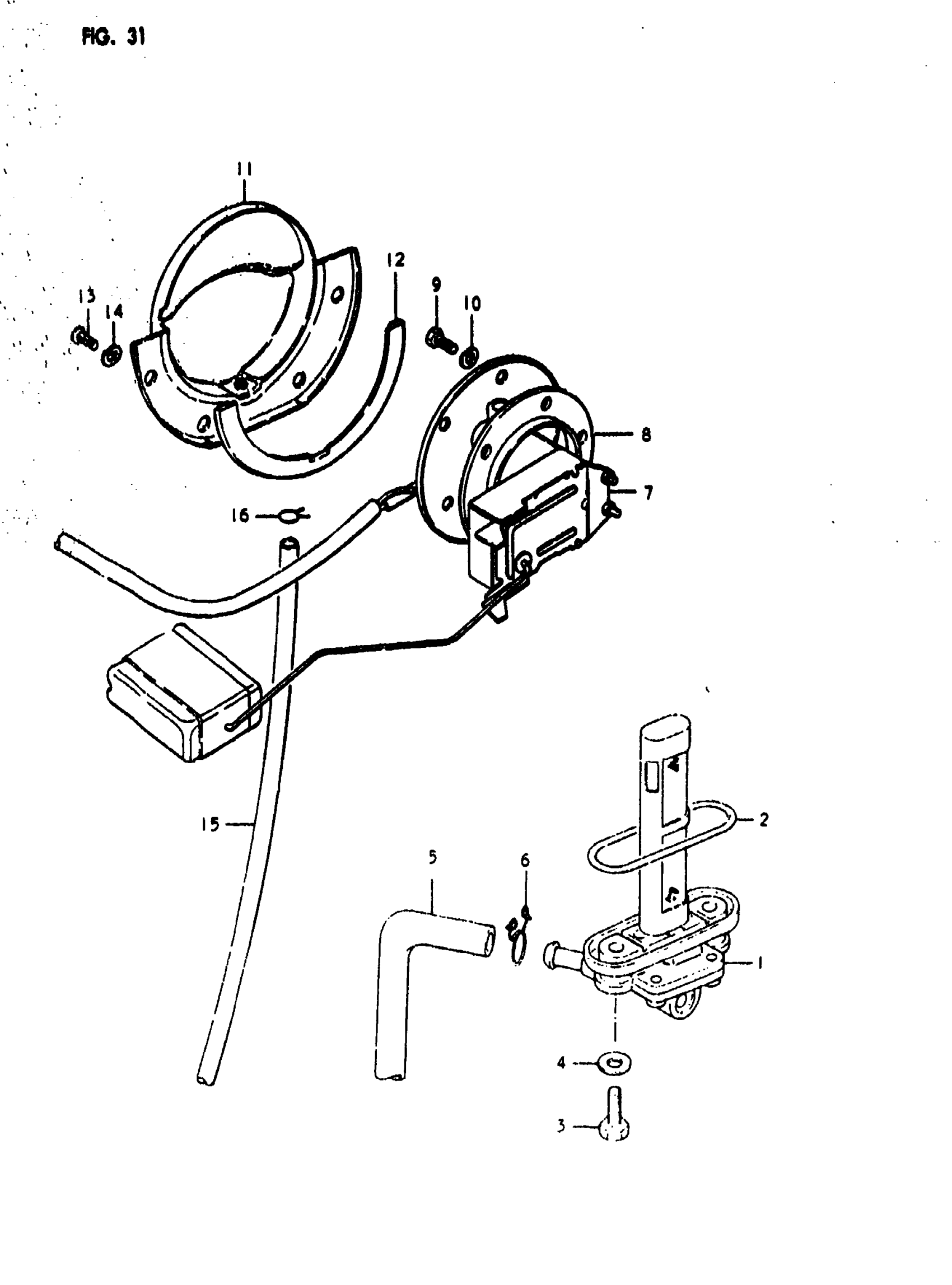

Suzuki GS1000E (1980) FUEL COCK - FUEL GAUGE Diagram

#

Description
Price

1

COCK ASSY, FUEL | Includes Item(s) 2

44300-47270

Unavailable

2

GASKET This part replaces 44348-47270.

44348-47271

Unavailable

3

BOLT, STARTING MOTOR This part replaces 09128-06024.

09103-06212

$2.47

4

GASKET (5.8X13X1.2) This part replaces 09168-06010.

09168-06023

$2.35

5

HOSE(7X10.2X200 This part replaces 09343-07026.

09352-70104-00B

$15.32

6

CLIP

09401-10401

$1.49

7

GAUGE ASSY, FUEL LEVEL | Includes Item(s) 8 This part replaces 34810-49010.

34810-49002

Unavailable

8

GASKET

34825-49001

$5.68

9

BOLT This part replaces 01104-05108.

01500-0510B

$1.80

10

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

11

PLATE This part replaces 34885-49002.

34885-49005

Unavailable

12

GASKET,FUEL DRA This part replaces 34888-49000.

34888-49001

Unavailable

13

SCREW This part replaces 02112-05088.

02112-05087

$1.49

14

LOCK WASHER This part replaces 08321-21058.

08321-0105A

$1.84

15

HOSE This part replaces 09343-05165.

09352-50005-00B

$13.93

16

CLIP

09401-08402

$1.49
