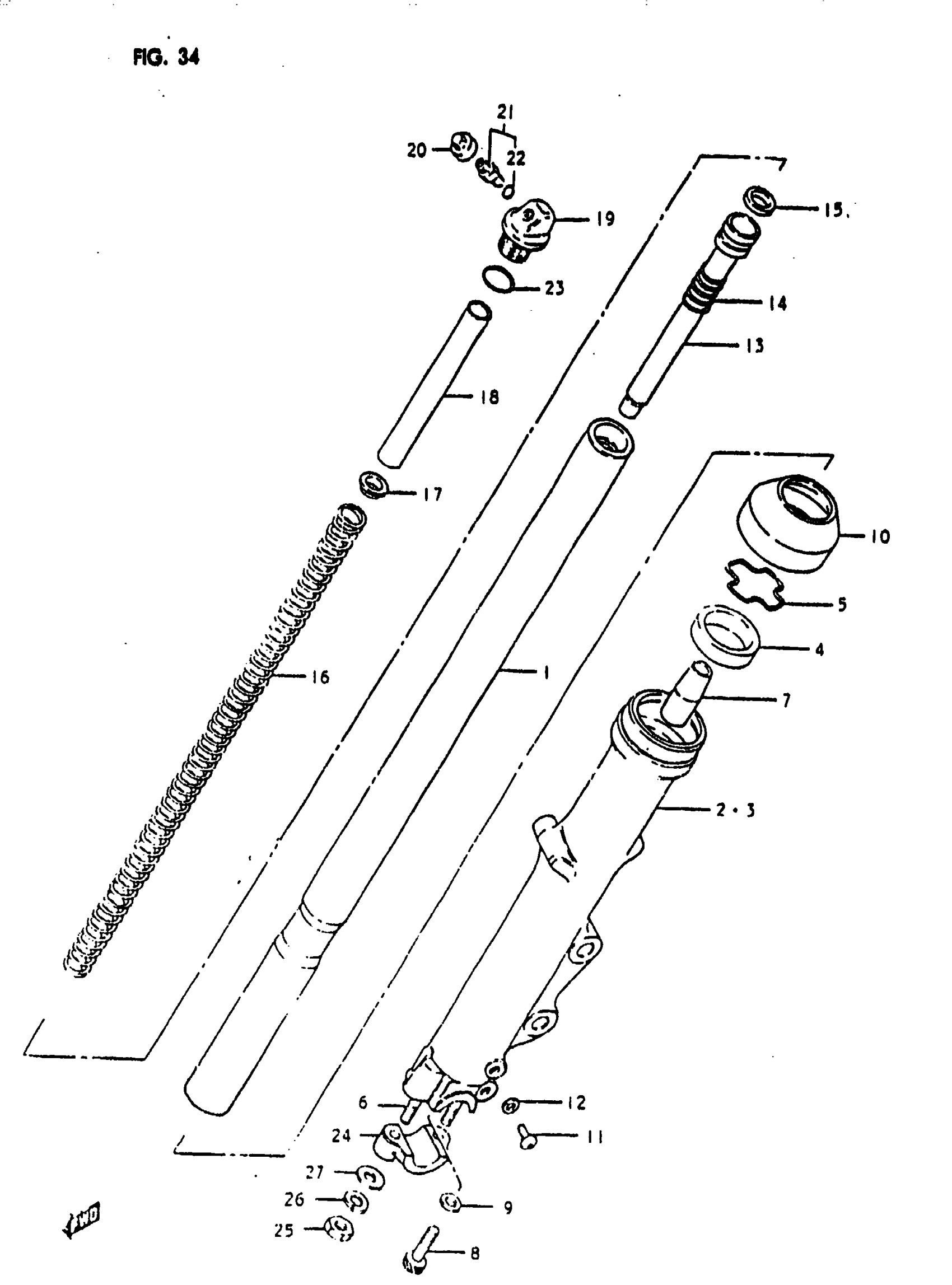

Suzuki GS1000E (1980) FRONT FORK Diagram

#

Description
Price

0

DUMPER ASSY, RH

51103-49001

Unavailable

0

DUMPER ASSY, LH | Includes Item(s) 1 - 27

51104-49001

Unavailable

1

INNER TUBE

51110-49001

Unavailable

2

OUTER TUBE, RH

51130-49001

Unavailable

3

OUTER TUBE, LH

51140-49001

Unavailable

4

SEAL, OIL This part replaces 51153-49000.

51153-08C20

$20.47

5

RING, OIL STOPPER

51156-40301

$5.05

6

STUD BOLT (L:30) This part replaces 01421-08308.

09108-08142

$3.18

7

PIECE, OIL LOCK

51195-49071

$21.43

8

BOLT

51147-16510

$4.34

9

GASKET

51148-41310

$2.26

10

DUST SEAL

51173-49002

$16.96

11

SCREW This part replaces 02112-04088.

02112-04087

$1.49

12

GASKET

51183-03010

$2.07

13

CYLINDER

51146-49000

Unavailable

14

SPRING, REBOUND

51177-49000

Unavailable

15

PISTON RING

51196-49000

$7.78

16

SPRING, MAIN

51171-49000

Unavailable

17

GUIDE, SPRING

51172-38010

Unavailable

18

SPACER

51176-49000

Unavailable

19

CAP, UPPER

51351-41211

Unavailable

20

CAP

51294-49000

Unavailable

21

VALVE ASSY, AIR

51293-49001

Unavailable

22

O RING

51117-41211

Unavailable

23

O RING

51117-16310

Unavailable

24

HOLDER, OXLE

51132-49000

Unavailable

25

NUT, CLUTCH RELEASE NO.1 This part replaces 09140-08005.

09140-08017

$2.27

26

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

27

WASHER This part replaces 08322-21088.

08322-01087

$2.13
