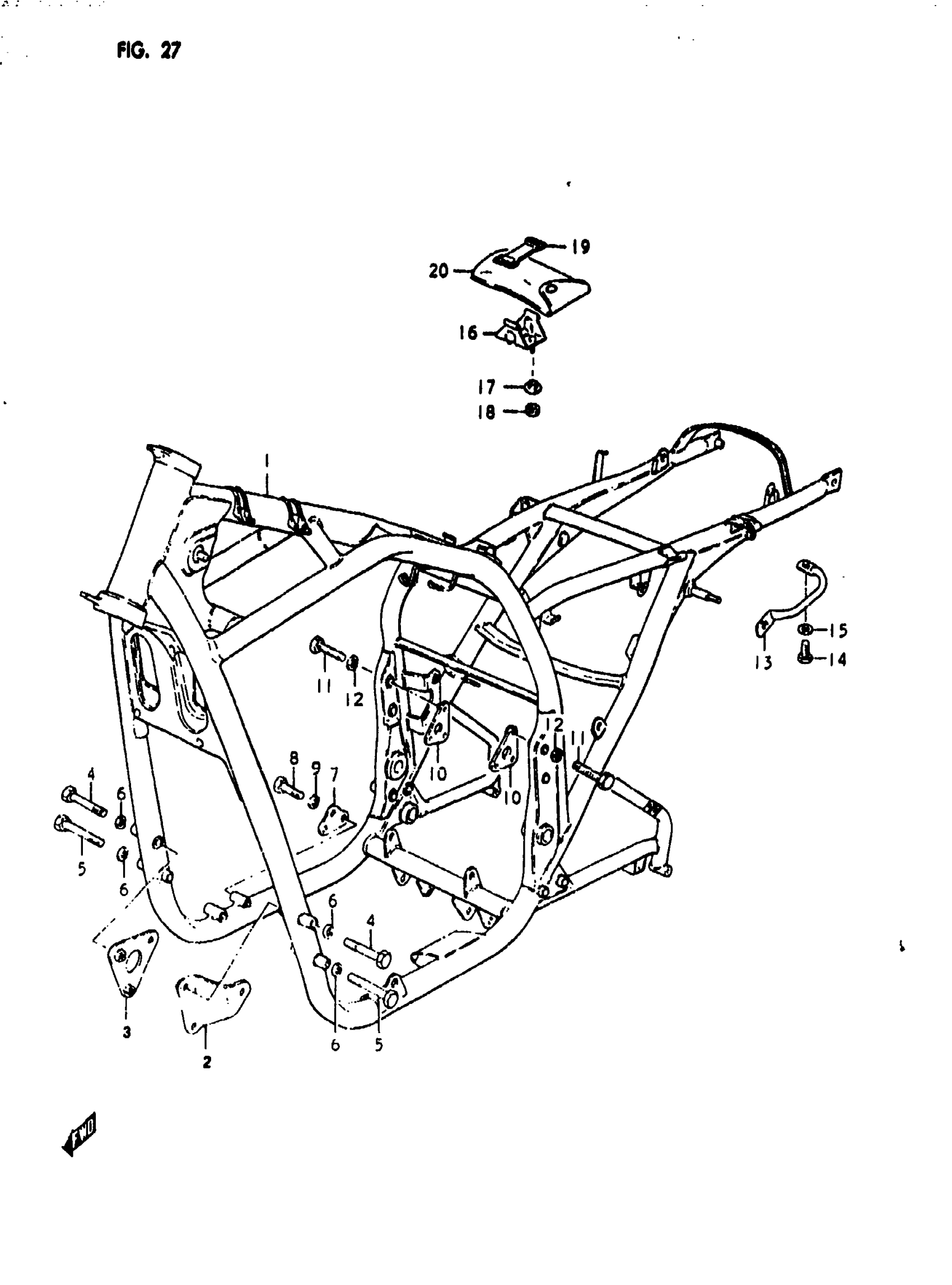

Suzuki GS1000E (1980) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE This part replaces 41100-49001-019.

41100-49002-019

Unavailable

2

PLATE, ENGINE MOUNTING NO.1 RH

41990-49000-019

Unavailable

3

PLATE, ENGINE MOUNTING NO. 1 L

41910-49000-019

Unavailable

4

BOLT This part replaces 01107-08658.

01500-0865B

$3.49

5

BOLT This part replaces 01107-08708.

01500-0870B

$3.49

6

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

7

PLATE, NO.2 (SILVER) This part replaces 41921-49000-019.

41921-49000-13L

Unavailable

8

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

9

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

10

PLATE, NO.3 (SILVER) This part replaces 41940-49000-019.

41940-49000-13L

Unavailable

11

BOLT This part replaces 01107-08358.

01500-0835B

$3.04

12

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

13

GRIP, FRAME HANDLE This part replaces 41610-49000.

41610-34200

Unavailable

14

PLUG, DRAIN This part replaces 01107-08168.

01500-0816B

$2.50

15

WASHER This part replaces 08322-11088.

08322-01087

$2.13

16

HOLDER, TOOL

41550-49000

Unavailable

17

WASHER

09169-06011

$3.45

18

.NUT This part replaces 08310-11068.

08310-00067

$2.13

19

BAND This part replaces 09462-00072.

09462-00094

$3.16

20

TOOL ASSY This part replaces 09800-00192.

09800-21068

Unavailable
