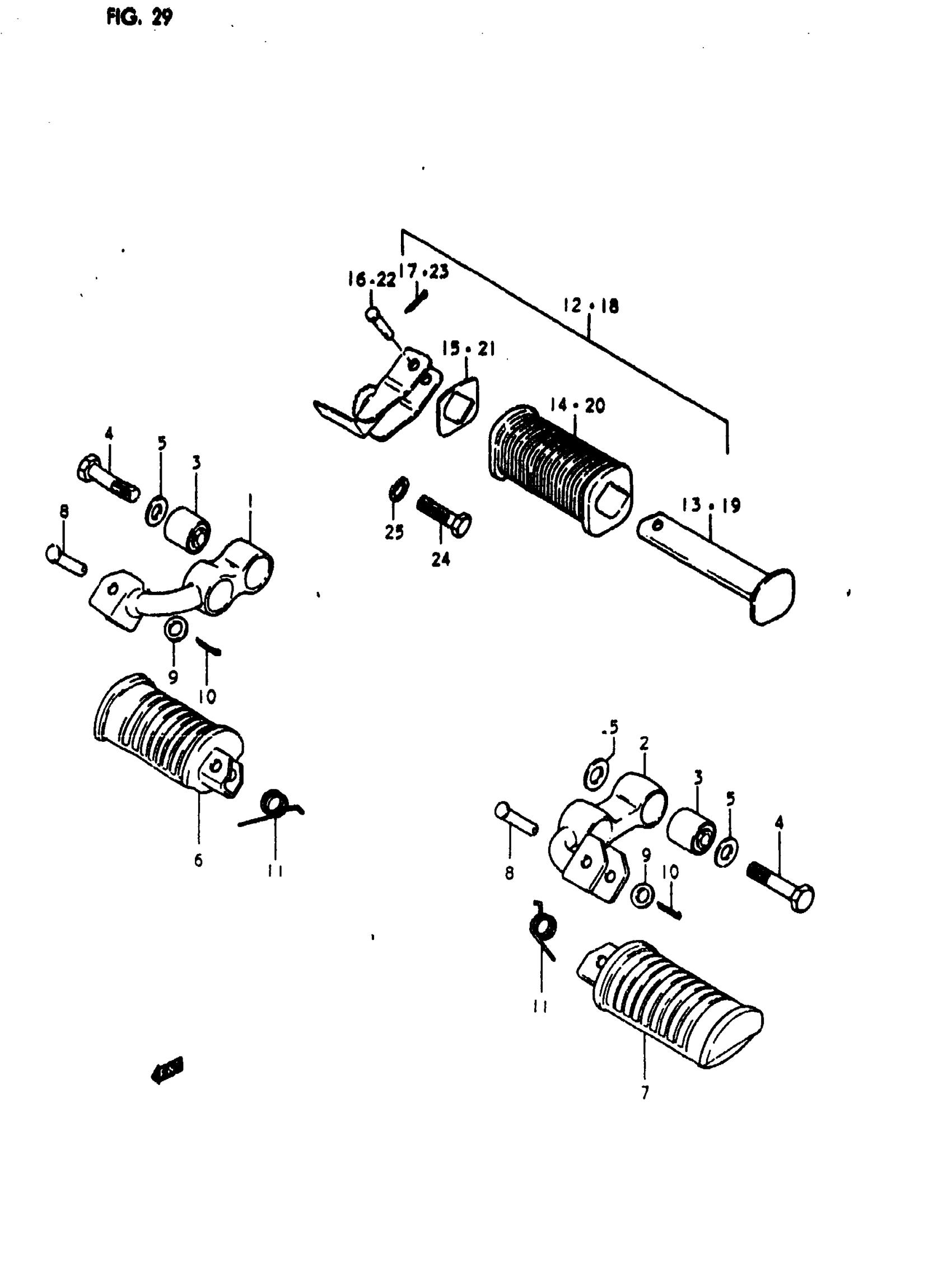

Suzuki GS1000E (1980) FOOTREST Diagram

#

Description
Price

1

BAR, FRONT FOOTREST RH

43510-49010

Unavailable

2

BAR, FRONT FOOTREST LH

43520-49010

Unavailable

3

BUSHING

09319-10008

$7.40

4

BOLT (10X38) This part replaces 09104-10007.

09104-10029

$3.55

5

WASHER This part replaces 09160-10013.

09160-10123

$2.12

6

RUBBER,PILLION This part replaces 43550-49002.

43550-37310

$25.47

7

FOOTREST LH This part replaces 43560-49002.

43560-37310

$32.98

8

PIN

09200-08002

$2.05

9

WASHER This part replaces 08322-11088.

08322-01087

$2.13

10

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

11

SPRING This part replaces 09448-14013.

09448-14012

$3.04

12

FOOTREST, PILLION RH | Includes Item(s) 13 - 17 This part replaces 43600-49010.

43600-49011

Unavailable

13

BAR, PILLION RH This part replaces 43610-45000.

43610-45001

Unavailable

14

RUBBER This part replaces 43612-45000.

43612-45001

Unavailable

15

WASHER This part replaces 43631-45000.

43631-45001

Unavailable

16

PIN

09200-06010

$1.72

17

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

18

FOOTREST, PILLION LH | Includes Item(s) 19 - 23 This part replaces 43700-49010.

43700-49011

Unavailable

19

BAR, PILLION LH This part replaces 43620-45000.

43620-45001

Unavailable

20

RUBBER This part replaces 43622-45000.

43612-45001

Unavailable

21

WASHER This part replaces 43631-45000.

43631-45001

Unavailable

22

PIN

09200-06010

$1.72

23

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

24

BOLT This part replaces 01107-10308.

01500-1030A

$3.16

25

LOCK WASHER This part replaces 08321-21108.

08321-01107

$1.84
