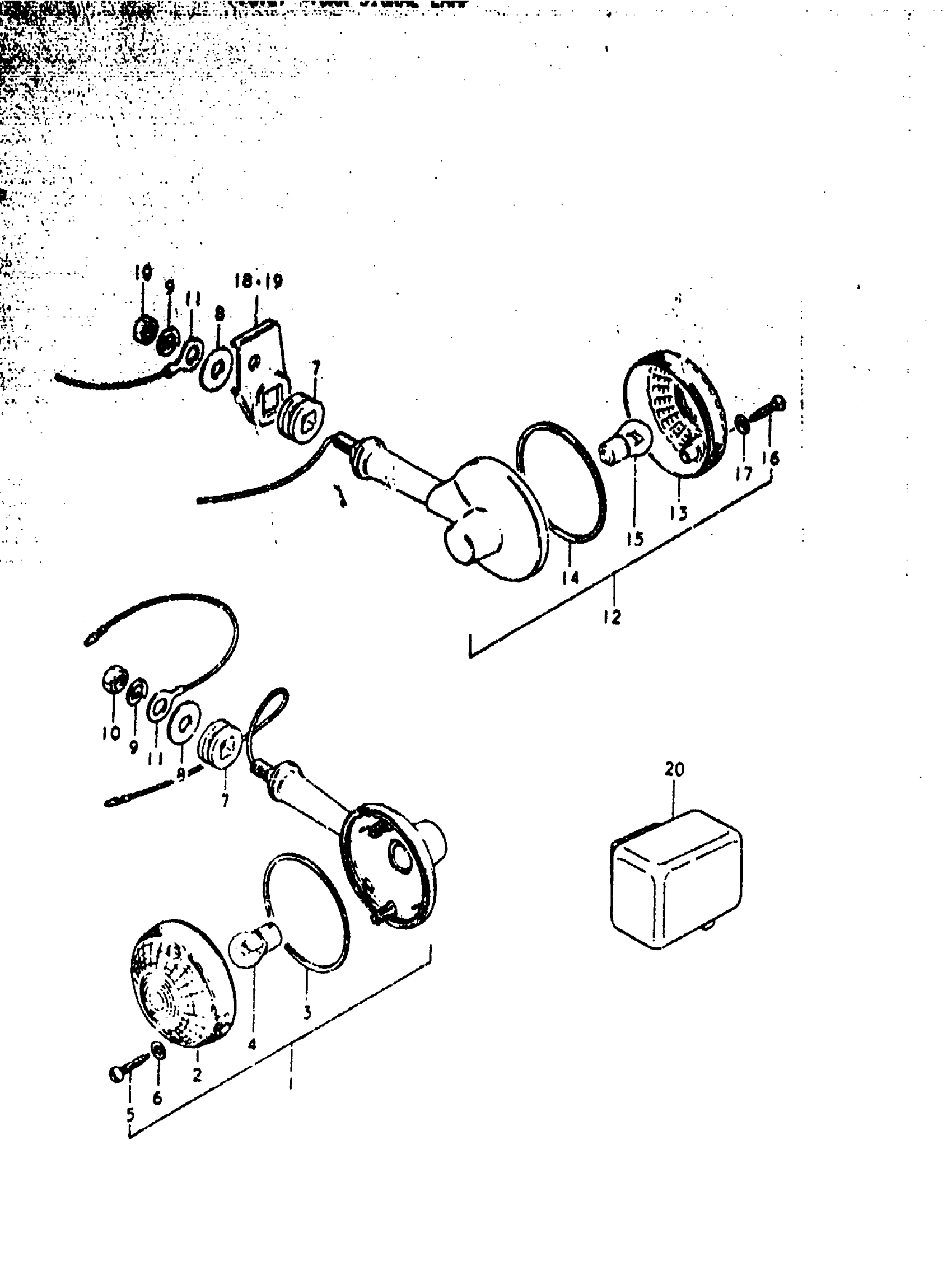

Suzuki GS1000C (1979) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP TURN SIGNA | C&EC,N&EN; Includes Item(s) 2 - 6 This part replaces 35601-49030.

35603-49121-999

Unavailable

2

LENS | C&EC,N&EN

35612-45010

Unavailable

3

GASKET | C&EC,N&EN

35613-45010

Unavailable

4

BULB | C&EC,N&EN; 12V, 23W

09471-12006

$3.98

5

SCREW | C&EC,N&EN This part replaces 35625-49030.

03211-04306

$1.78

6

GASKET | C&EC,N&EN

35627-43010

$2.28

7

RR TURN SIG CUS | C&EC,N&EN This part replaces 35690-32200.

35690-32201

$6.37

8

WASHER, MUFFLER SUPPORT | C&EC,N&EN; 8.5x30x2.3 This part replaces 09160-08001.

09160-08503

$2.50

9

.LOCK WASHER | C&EC,N&EN This part replaces 08321-21088.

08321-01087

$2.13

10

NUT | C&EC,N&EN This part replaces 08310-12088.

08310-00087

$2.13

11

LEAD WIRE, EARTH | C&EC,N&EN

36851-45100

$4.52

12

LAMP TURN SIGNA | C&EC,N&EN; Includes Item(s) 13 - 17 This part replaces 35601-49030.

35603-49121-999

Unavailable

13

LENS | C&EC,N&EN

35612-45010

Unavailable

14

GASKET | C&EC,N&EN

35613-45010

Unavailable

15

BULB | C&EC,N&EN; 12V, 23W

09471-12006

$3.98

16

SCREW | C&EC,N&EN This part replaces 35625-49030.

03211-04306

$1.78

17

GASKET | C&EC,N&EN

35627-43010

$2.28

18

BRACKET, RH | C&EC,N&EN

41580-45000-019

Unavailable

19

BRACKET, LH | C&EC,N&EN

41590-45000-019

Unavailable

20

RELAY ASSY, TURNSIGNAL | C&EC This part replaces 38610-45030.

38610-31X50

$80.15

20

RELAY ASSY, TURNSIGNAL | N&EN This part replaces 38610-45031.

38610-31X50

$80.15
