Partiron

1979 Suzuki GS1000C Steering Stem (GS1000N Diagram

← All diagrams

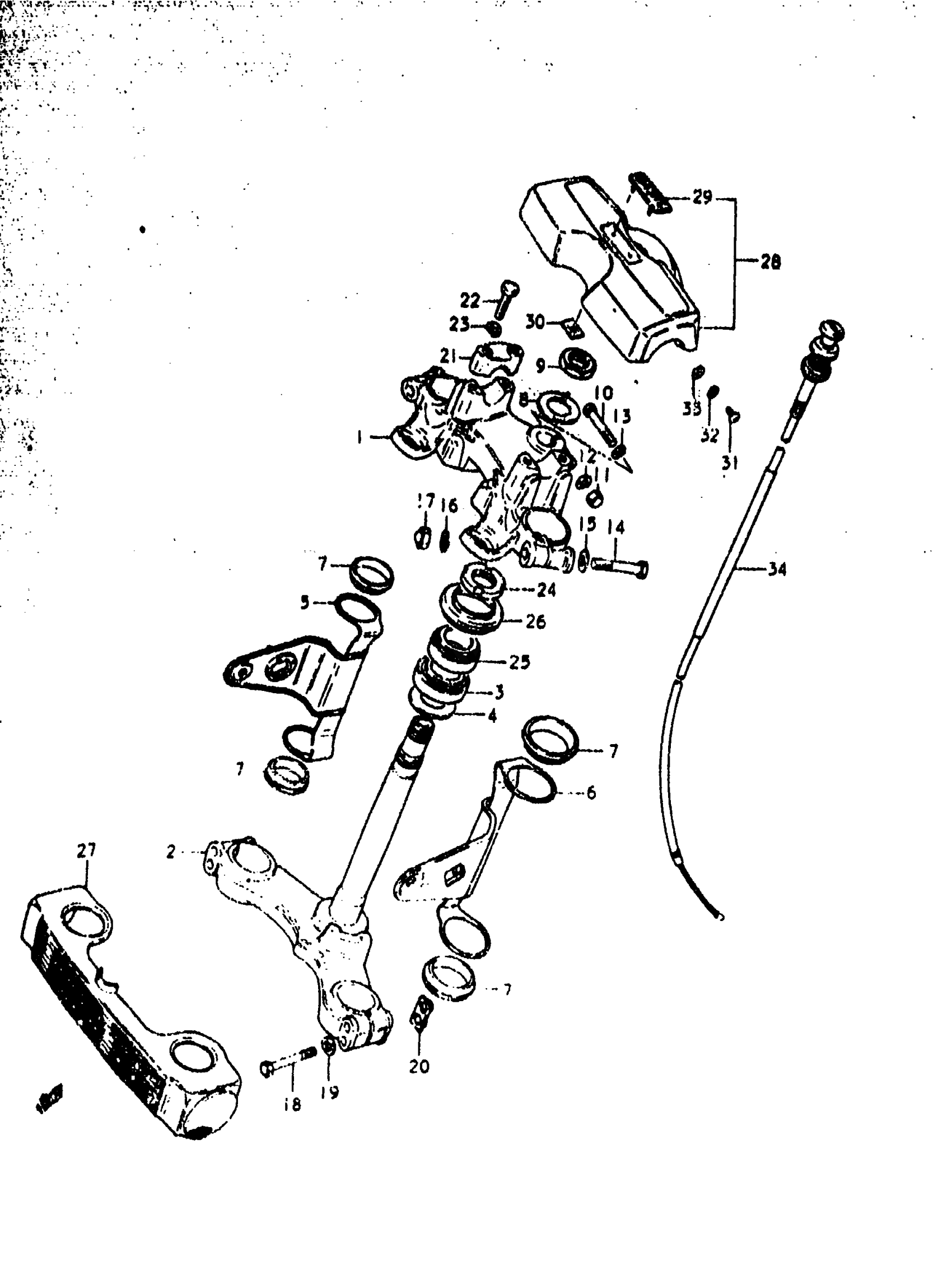

Find the part on the Steering Stem (GS1000N diagram for your 1979 Suzuki GS1000C, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1979 Suzuki GS1000C Steering Stem (GS1000N Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STEERING STEM HEAD | N,EN

51311-49000-291

1
Out of stock

2

NO DESCRIPTION AVAILABLE | N,EN; Includes Item(s) 3 - 4 This part replaces 51410-49070.

51410-49702

1
Out of stock

3

RT 30X55X17 BEA | N,EN This part replaces 09265-30005.

09265-30034

1
Out of stock

4

SHIM, 30X40X1.5 | N,EN This part replaces 08211-30402.

09181-30184

1
Out of stock

5

NO DESCRIPTION AVAILABLE | N,EN This part replaces 51530-49000-291.

51500-49810-291

1
Out of stock

6

BRACKET, HEADLAMP LH | N,EN

51540-49000-291

1
Out of stock

7

CUSHION, BRACKET | N,EN This part replaces 51553-49000.

51553-34300

4
Out of stock

8

WASHER | N,EN

51356-31700

1
Out of stock

9

NUT | N,EN

51353-45000

1
Out of stock

10

BOLT | N,EN This part replaces 01107-08508.

01500-08507

1
Out of stock

11

NUT | N,EN This part replaces 08313-11088.

08313-10087

1
Out of stock

12

.LOCK WASHER | N,EN This part replaces 08321-21088.

08321-01087

1
Out of stock

13

WASHER | N,EN This part replaces 08322-21088.

08322-01087

1
Out of stock

14

BOLT | N,EN This part replaces 01107-10558.

01500-1055A

2
Out of stock

15

WASHER | N,EN This part replaces 08322-21108.

08322-01107

2
Out of stock

16

LOCK WASHER | N,EN This part replaces 08321-21108.

08321-01107

2
Out of stock

17

NUT | N,EN This part replaces 08313-11108.

08313-10107

2
Out of stock

18

BOLT | N,EN This part replaces 01107-08558.

01500-08557

4
Out of stock

19

WASHER | N,EN This part replaces 08322-21088.

08322-01087

4
Out of stock

20

NUT, INNER TUBE | N,EN

51458-49000

2
Out of stock

21

CLAMP, HANDLEBAR UPPER | N,EN

56211-29320-291

2
Out of stock

22

BOLT | N,EN

01204-08357

4
Out of stock

23

.LOCK WASHER | N,EN This part replaces 08321-21088.

08321-01087

4
Out of stock

24

NUT, STEERING STEM | N,EN

51631-28000

1
Out of stock

25

BEARING, UPPER | N,EN

09265-25008

1
Out of stock

26

SEAL, STEERING DUST | N,EN This part replaces 51643-49001.

51643-49002

1
Out of stock

27

COVER, FRONT FORK | N,EN

51870-49000

1
Out of stock

28

PAD, HANDLEBAR | EN; Includes Item(s) 29 - 30

56170-45100

1
Out of stock

29

EMBLEM | EN

68281-45100

1
Out of stock

30

NUT | EN

09148-03002

2
Out of stock

31

SCREW | EN This part replaces 02112-05108.

02112-05107

4
Out of stock

32

LOCK WASHER | EN This part replaces 08321-21058.

08321-0105A

4
Out of stock

33

WASHER | EN This part replaces 08322-21058.

08322-01057

4
Out of stock

34

CABIL, STARTER | N This part replaces 58400-45000.

58400-45100

1
Out of stock

34

CABIL, STARTER | EN

58400-45100

1
Out of stock
