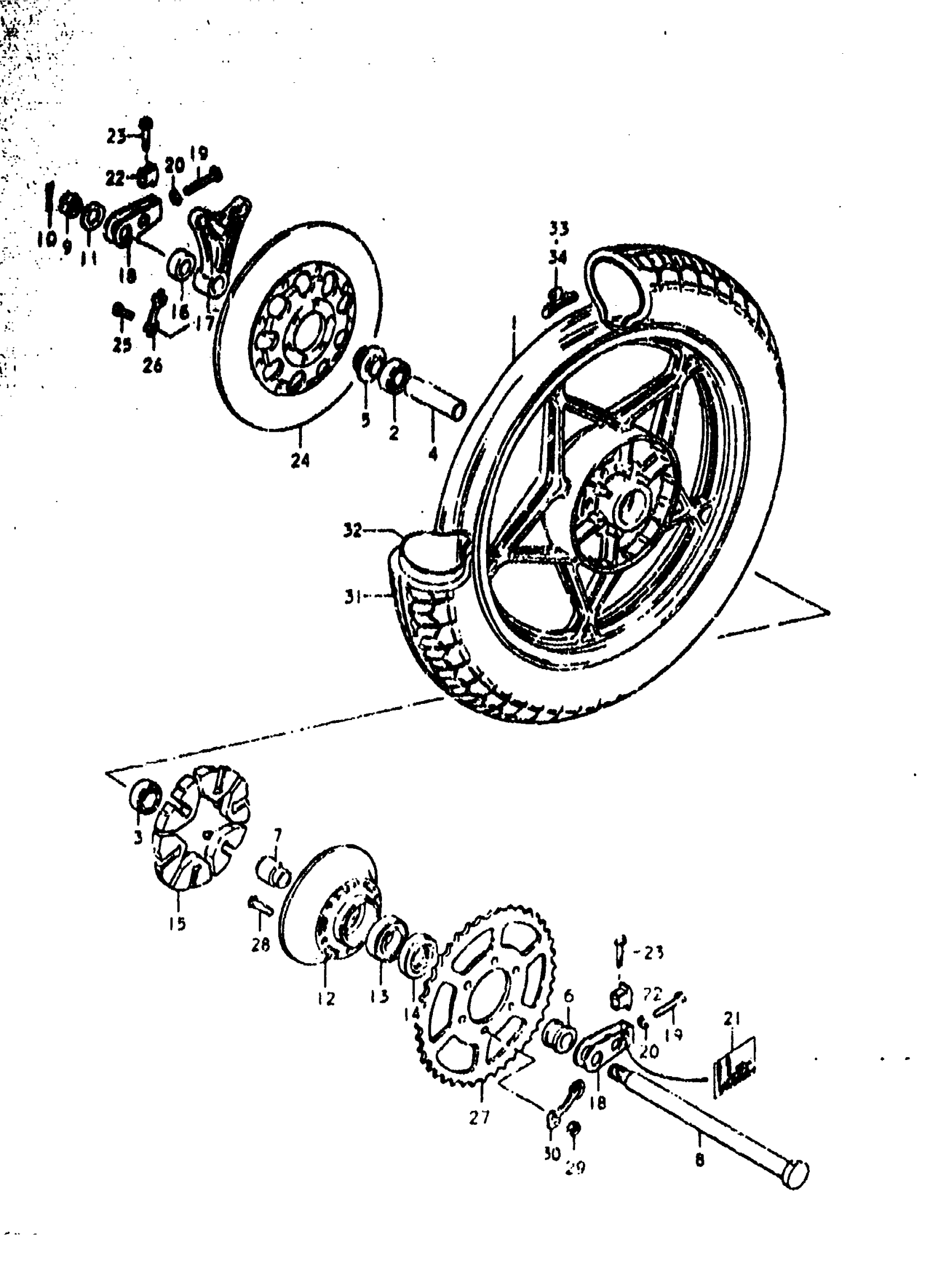

Suzuki GS1000C (1979) REAR WHEEL (GS1000EC Diagram

#

Description
Price

1

WHEEL, REAR (MT2,50x17) (BLACK | EC,EN; 2.50x17 This part replaces 64111-49000.

64111-49001-12U

Unavailable

2

BEARING, RH | EC This part replaces 08133-62040.

08133-62047

$26.19

2

BEARING, RH | EN

08133-62047

$26.19

3

BEARING, LH | EC This part replaces 08153-62040.

09262-20042

$21.31

3

BEARING, LH | EN This part replaces 08153-62047.

09262-20042

$21.31

4

SPACER | EC,EN

09180-20062

$20.80

5

SPACER, AXLE, RH | EC,EN This part replaces 64740-45001.

64740-45002

Unavailable

6

SPACER, AXLE LH | EC,EN; 20x33x28.3

09180-20054

Unavailable

7

SPACER,RR HUB B | EC,EN This part replaces 64733-31000.

64733-3100V

Unavailable

8

AXLE,REAR | EC,EN This part replaces 64711-49000.

64711-4900V

Unavailable

9

NUT | EC,EN This part replaces 08314-31188.

08314-3118A

$6.58

10

PIN, REAR AXLE | EC,EN This part replaces 04111-40308.

04111-4030A

$1.37

11

WASHER | EC,EN; 19x34x4

09160-19008

Unavailable

12

DRUM, SPROCKET | EC,EN This part replaces 64611-31000.

64611-31003

Unavailable

13

BEARING, DRUM | EC This part replaces 08113-63054.

09262-25073

$23.39

13

BEARING, DRUM | EN This part replaces 08113-63057.

09262-25073

$23.39

14

OIL SEAL | EC,EN

09285-33001

$12.15

15

SHOCK ABSORBER, HUB | EC,EN This part replaces 64651-31000.

64651-31001

$10.24

16

SPACER | EC,EN; 20x38x12

09180-20060

Unavailable

17

BRACKET, REAR CALIPERS | EC This part replaces 69721-47010.

69721-47011

Unavailable

17

BRACKET, REAR CARIPERS | EN

69721-47011

Unavailable

18

ADJUSTER, CHAIN | EC,EN This part replaces 61410-31000.

61410-31001

$55.32

19

BOLT (8X50) | EC,EN This part replaces 09104-08006.

09104-08034

$2.80

20

NUT | EC,EN This part replaces 08310-12088.

08310-00087

$1.83

21

LABEL, CHAIN WEAR INDICATOR | EC,EN

68377-49000

Unavailable

22

SUPPORTER,CHAIN | EC,EN This part replaces 61433-31000.

61433-3100V

Unavailable

23

BOLT | EC,EN This part replaces 01517-08408.

01550-08407

$2.63

24

NO DESCRIPTION AVAILABLE | EC,EN This part replaces 59210-18401.

59210-18402

Unavailable

25

BOLT | EC,EN

09100-08094

$2.80

26

WASHER | EC,EN

09169-08016

$2.38

27

SPROCKET,REAR,N | EC,EN; NT:42 This part replaces 64511-49000.

64511-49002

Unavailable

28

BOLT | EC,EN This part replaces 09119-10002.

09105-10001

$3.12

29

NUT | EC,EN This part replaces 08310-12108.

08310-00107

$2.19

30

WASHER | EC,EN

09169-10007

Unavailable

31

TIRE (4.50V17) | EC,EN; 4.50V17 This part replaces 65100-49010.

65100-49230

Unavailable

32

TUBE, INNER | EC,EN; 3.50-17

65200-49010

Unavailable

33

BARANCER | EC,EN; (0~3) 20G

55411-47001

Unavailable

34

BARANCER | EC,EN; (0~3) 30G

55412-47001

Unavailable
