Description

Price

1

GEAR, STARTER IDLE | C&EC,N&EN; NT:55/18

12611-49000

Unavailable

2

PIN | C&EC,N&EN

09206-13003

$15.70

3

WASHER | C&EC,N&EN; 13.3x25x0.85

09160-13003

$1.99

4

CLUTCH SET, STA | C&EC,N&EN; Includes Item(s) 5 - 7 This part replaces 12600-49810.

12600-49811

Unavailable

5

ROLLER | C&EC,N&EN

09261-15001

$3.29

6

SPRING | C&EC,N&EN

09440-04015

$2.22

7

PIECE, PUSH | C&EC,N&EN

12633-31000

$8.77

8

BOLT | C&EC,N&EN This part replaces 09106-08006.

07130-0816A

$3.16

9

BEARING | C&EC,N&EN

09263-25020

$16.65

10

WASHER,25X38X1 | C&EC,N&EN; 25x38x2.5 This part replaces 09160-25019.

09160-25080

$19.37

11

CHIM, STARTER CLUTCH | C&EC,N&EN

12649-45000

$9.17

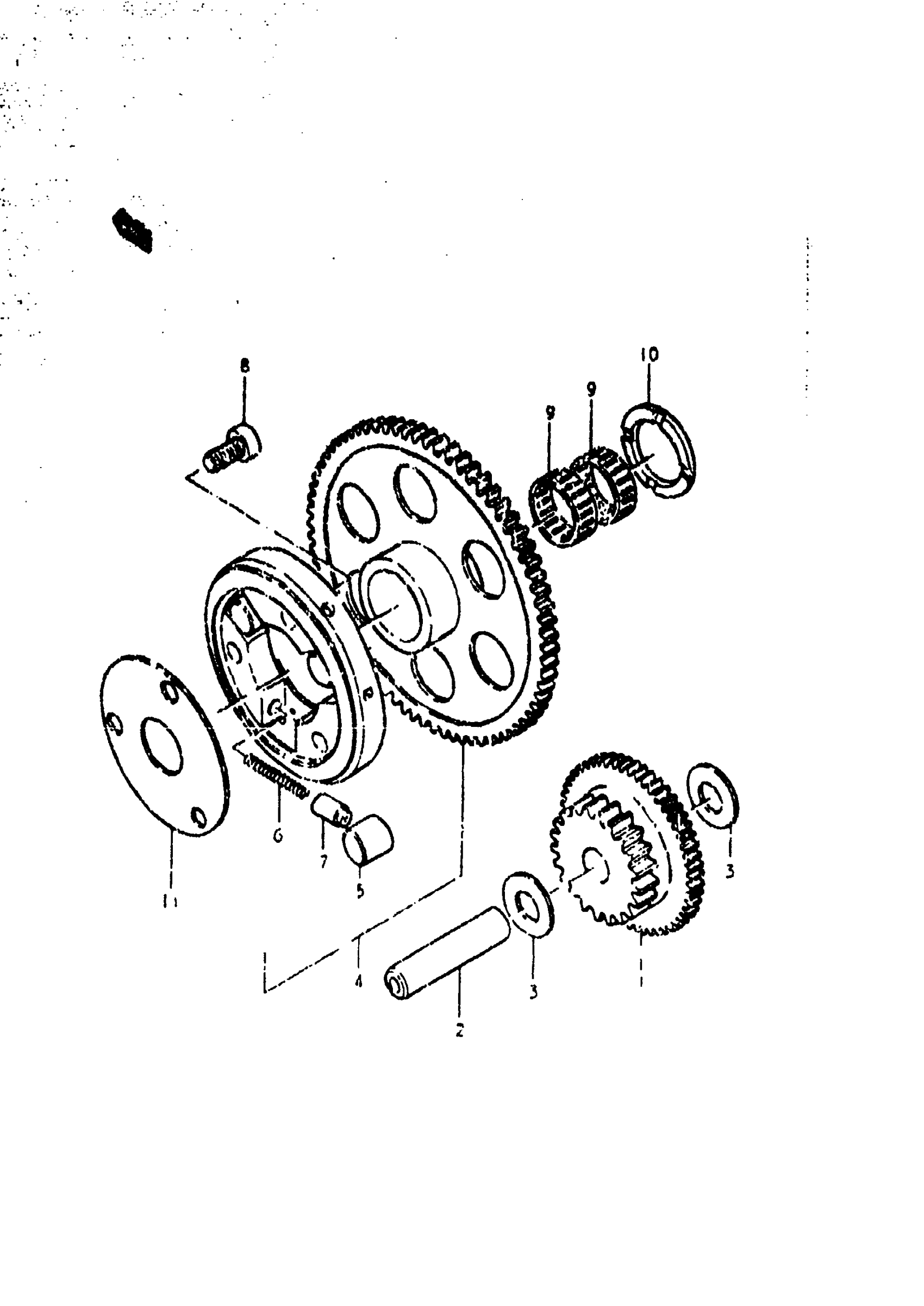

Suzuki GS1000C (1979) STARTER CLUTCH Diagram
