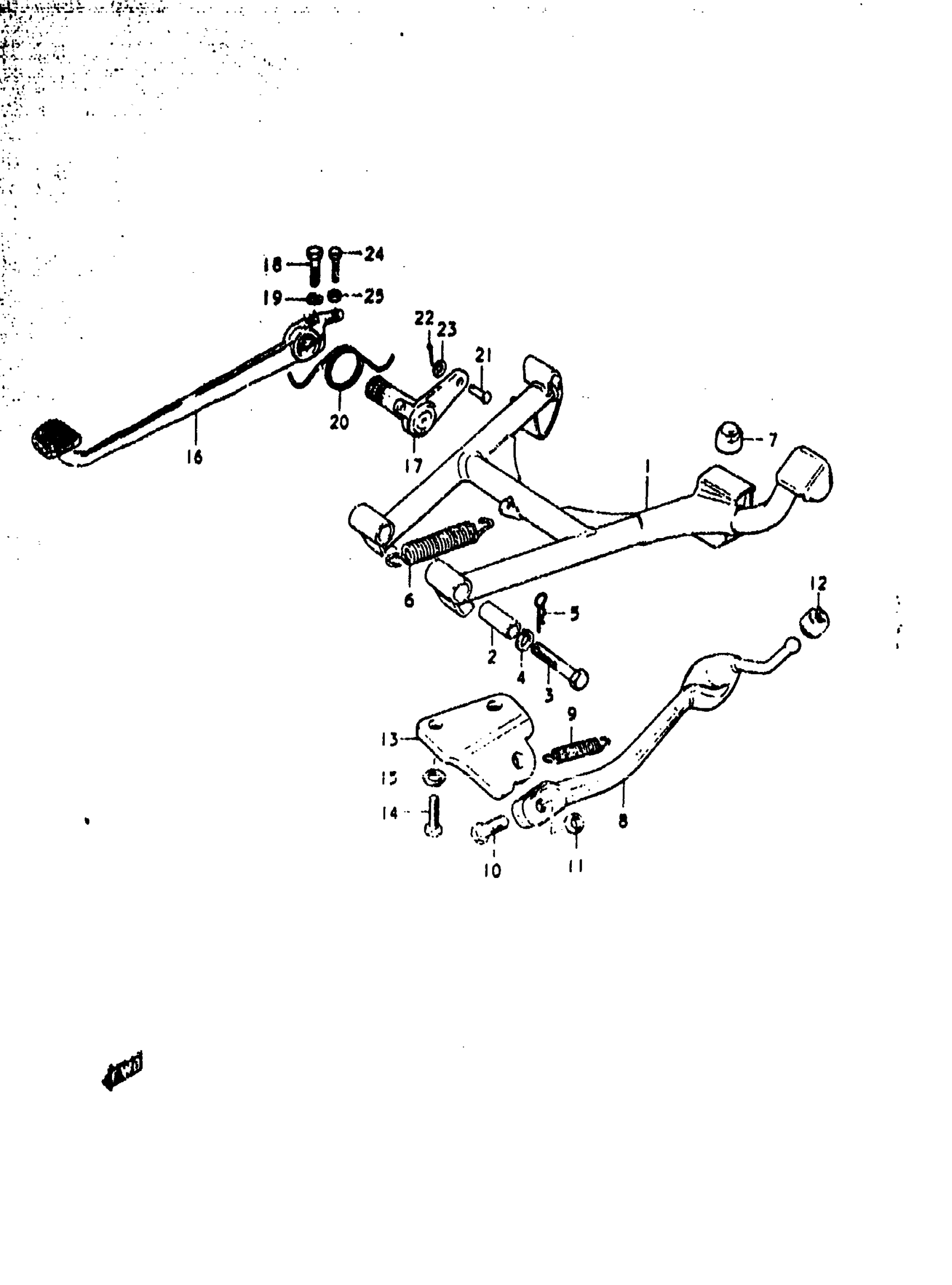

Suzuki GS1000C (1979) STAND Diagram

STAND, CENTER | C&EC,N&EN This part replaces 42100-49000.

42100-49001

Unavailable

SPACER | C&EC,N&EN; 10.7x15.9x38

09180-10040

$2.56

BOLT, 10 X 65 | C&EC,N&EN This part replaces 09101-10018.

09101-10030

Unavailable

LOCK WASHER | C&EC,N&EN This part replaces 08321-21108.

08321-01107

$1.84

CLIP | C&EC,N&EN This part replaces 09385-10001.

09385-10005

$1.56

SPRING | C&EC,N&EN This part replaces 09443-20001.

09443-20001-XC0

$7.53

CUSHION | C&EC,N&EN

09321-10001

$2.61

STAND, PROP | C&EC,N&EN

42310-45000

Unavailable

SPRING | C&EC,N&EN This part replaces 09443-17005.

09443-17008-XC0

$6.98

BOLT | C&EC,N&EN; 10x30

09100-10067

$2.61

NUT | C&EC,N&EN This part replaces 08310-22108.

08310-00107

$2.19

CUSHION | C&EC,N&EN

09320-07001

$2.92

BRACKET | C&EC,N&EN

42330-49000

Unavailable

BOLT | C&EC,N&EN; 10x27 This part replaces 09100-10007.

09100-10287

$3.48

LOCK WASHER | C&EC,N&EN This part replaces 08321-21108.

08321-01107

$1.84

PEDAL, BRAKE | C&EC,N&EN

43110-49000

Unavailable

ARM, BRAKE PEDAL ROJ | C&EC,N&EN

43120-49000

Unavailable

BOLT | C&EC,N&EN This part replaces 01107-08258.

01500-08257

$2.50

.LOCK WASHER | C&EC,N&EN This part replaces 08321-21088.

08321-01087

$2.13

SPRING | C&EC,N&EN This part replaces 09448-37002.

09448-37002-XC0

Unavailable

PIN | C&EC,N&EN

09200-06029

Unavailable

.COTTER PIN | C&EC,N&EN This part replaces 04111-20158.

04111-2015A

$1.49

WASHER | C&EC,N&EN This part replaces 08322-21068.

08322-01067

$2.13

BOLT | C&EC,N&EN This part replaces 01107-06208.

01500-06207

$2.28

.NUT | C&EC,N&EN This part replaces 08310-11068.

08310-00067

$2.13
