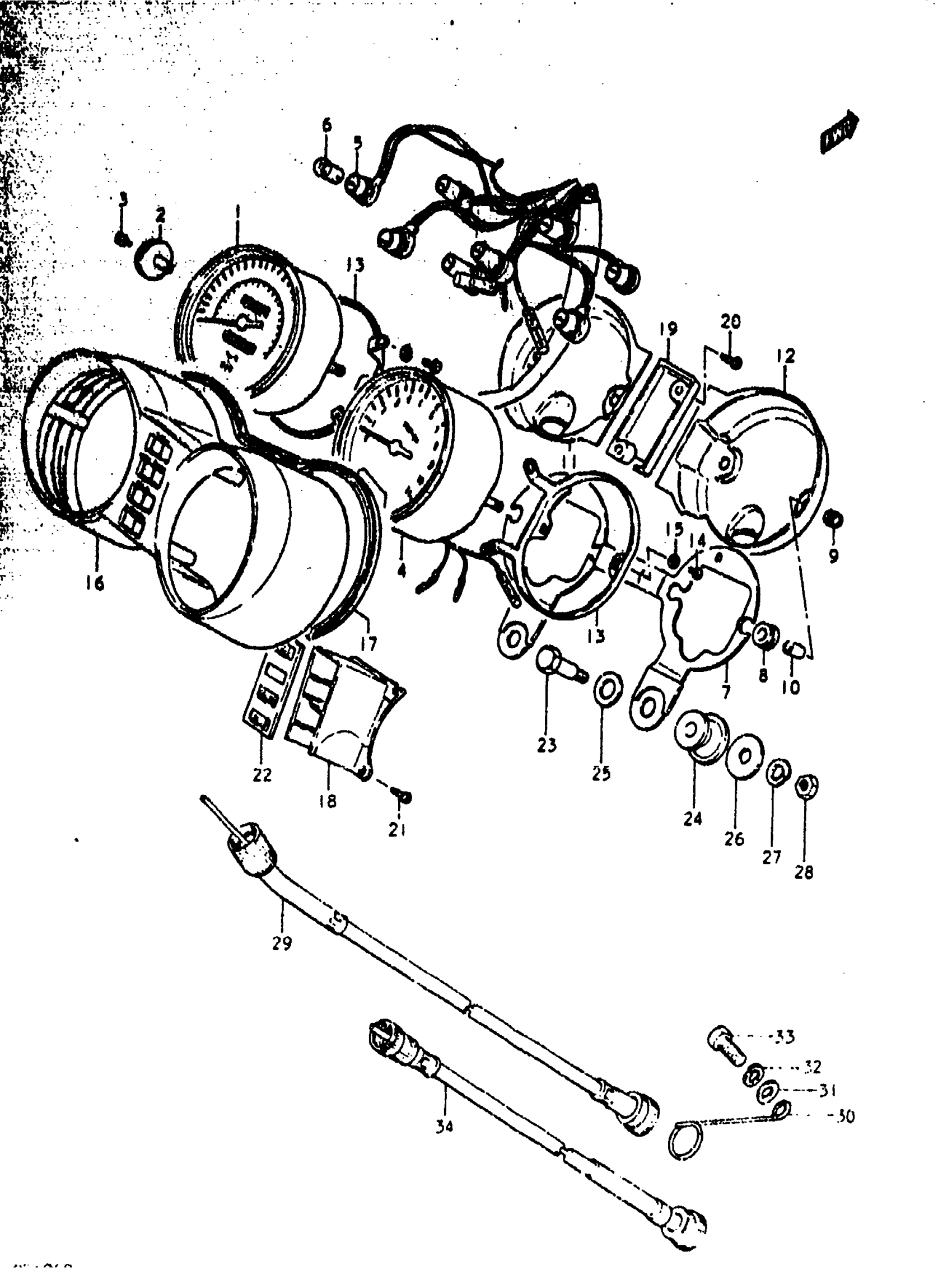

Suzuki GS1000C (1979) SPEEDOMETER - TACHOMETER Diagram

#

Description
Price

0

NO DESCRIPTION AVAILABLE | C&EC; GS1000C ONLY This part replaces 34100-49060.

34100-49072

Unavailable

0

NO DESCRIPTION AVAILABLE | C&EC This part replaces 34100-49070.

34100-49072

Unavailable

0

NO DESCRIPTION AVAILABLE | N&EN; Includes Item(s) 1 - 22 This part replaces 34100-49071.

34100-49072

Unavailable

1

NO DESCRIPTION AVAILABLE | C&EC; GS1000C ONLY This part replaces 34110-49060.

34110-49072

Unavailable

1

NO DESCRIPTION AVAILABLE | C&EC This part replaces 34110-49070.

34110-49072

Unavailable

1

NO DESCRIPTION AVAILABLE | N&EN This part replaces 34110-49071.

34110-49072

Unavailable

2

KNOB | C&EC,N&EN

34124-49000

Unavailable

3

SCREW | C&EC,N&EN

34125-49000

Unavailable

4

NO DESCRIPTION AVAILABLE | C&EC,N&EN This part replaces 34210-49060.

34210-49040

Unavailable

5

SOCKET | C&EC,N&EN

34173-49000

Unavailable

6

BULB | C&EC,N&EN; 12V, 3.4W

09471-12001

$1.65

7

BRACKET | C&EC,N&EN

34950-49000

Unavailable

8

CUSHION | C&EC,N&EN

34189-49000

Unavailable

9

NUT | C&EC,N&EN This part replaces 34185-49000.

08313-1005A

$1.93

10

SPACER | C&EC,N&EN

34187-49000

Unavailable

11

COVER, SPEEDOMETER UNDER | C&EC,N&EN

34193-49000

Unavailable

12

COVER, TACHOMETER UNDER | C&EC,N&EN

34293-49000

Unavailable

13

HOLDER, METER | C&EC,N&EN

34195-49000

Unavailable

14

SCREW | C&EC,N&EN This part replaces 02112-03088.

02112-0308A

$1.80

15

WASHER,LOCK | C&EC,N&EN This part replaces 08321-21038.

09162-03001

$1.49

16

CASE, METER | C&EC,N&EN

34151-49000

Unavailable

17

CUSHION | C&EC,N&EN

34156-49000

Unavailable

18

CASE, PILOT BULB | C&EC,N&EN

36382-49000

Unavailable

19

PLATE, UNDER | C&EC,N&EN

36383-49000

Unavailable

20

SCREW | C&EC,N&EN

36492-49000

Unavailable

21

SCREW | C&EC,N&EN

34183-49000

Unavailable

22

LENS SET | C&EC,N&EN

36300-49810

Unavailable

23

BOLT | C&EC,N&EN

09111-08031

Unavailable

24

CUSHION | C&EC,N&EN This part replaces 34956-31000.

34956-31001

$4.37

25

WASHER,10.5X22X | C&EC,N&EN; 10.5x22x1.6 This part replaces 09160-10051.

09160-10143

$2.34

26

WASHER, EXHAUST SUPPORT | C&EC,N&EN; 8.5x29x1.6 This part replaces 09160-08002.

09160-08135

$2.35

27

.LOCK WASHER | C&EC,N&EN This part replaces 08321-21088.

08321-01087

$2.13

28

NUT | C&EC,N&EN This part replaces 08310-12088.

08310-00087

$2.13

29

CABLE ASSY,ODOM | C&EC,N&EN This part replaces 34910-49010.

34910-24501

Unavailable

30

CLAMP | C&EC,N&EN

34938-37000

$3.73

31

.WASHER | C&EC,N&EN This part replaces 08322-11068.

08322-0106B

$2.26

32

LOCK WASHER | C&EC This part replaces 08321-21068.

08321-01067

$2.13

33

BOLT, CANISTER | C&EC,N&EN This part replaces 01107-06168.

01500-06167

$1.97

34

CABLE,TACHOMETE | C&EC,N&EN This part replaces 34940-49011.

34940-37312

$51.10
