Partiron

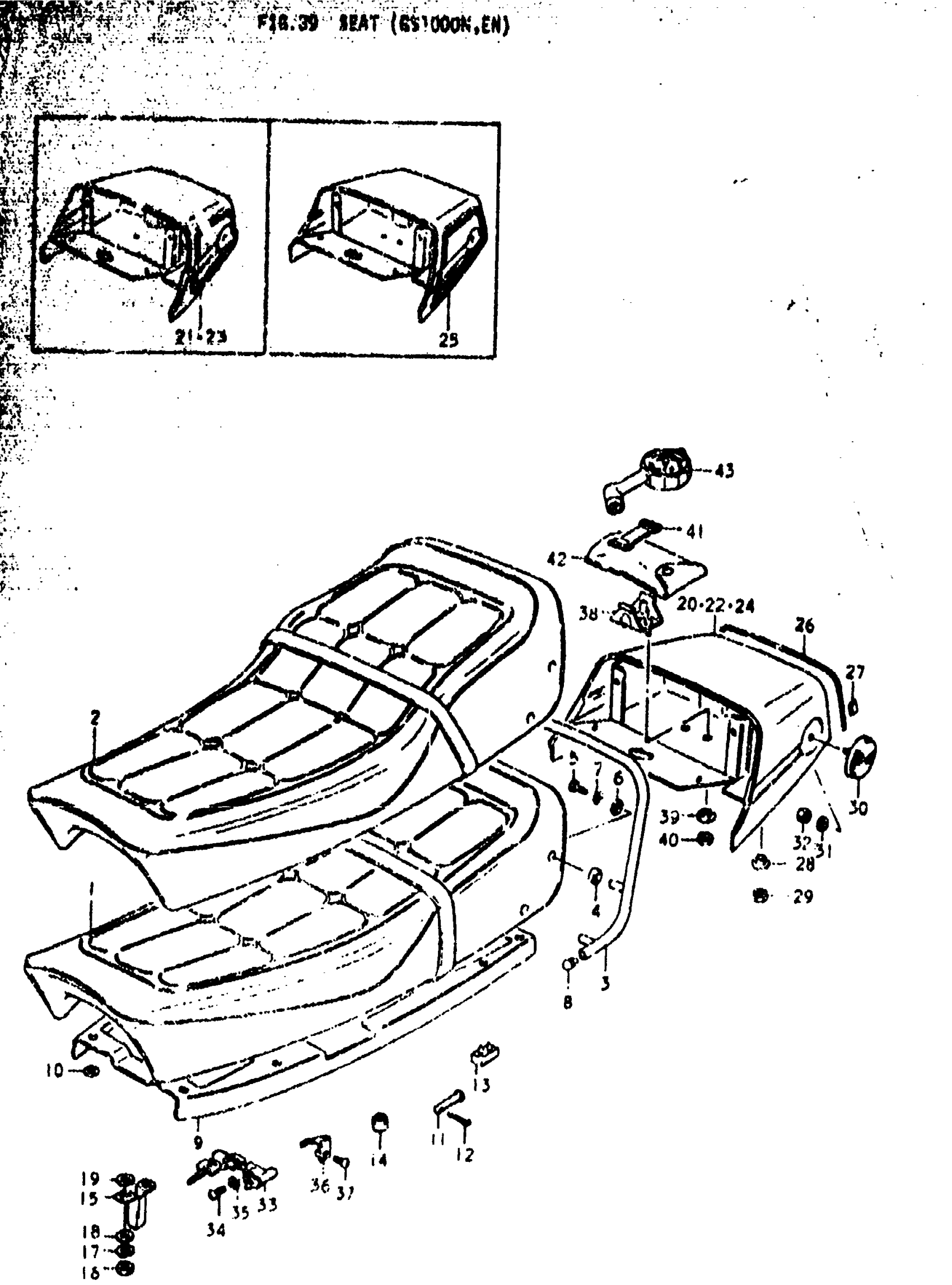

Suzuki GS1000C (1979) SEAT (GS1000N Diagram

#

Description
Price

1

SEAT (FLAT TYPE) | N

45100-49012-40P

Unavailable

2

SEAT (STEP TYPE) | CN; Includes Item(s) 3 - 8

45100-49002-40P

Unavailable

3

HANDLE, PILLION RIDER | N This part replaces 46211-49010.

46211-49000

Unavailable

3

HANDLE, PILLION RIDER | CN

46211-49000

Unavailable

4

CUSHION | N,CN

46212-49000

Unavailable

5

BOLT, REAR | N,CN This part replaces 01107-08208.

01500-08207

$2.53

6

WASHER | N,CN This part replaces 08322-11088.

08322-01087

$2.13

7

.LOCK WASHER | N,CN This part replaces 08321-21088.

08321-01087

$2.13

8

END, HANDLE | N,CN

46213-49000

Unavailable

9

NO DESCRIPTION AVAILABLE | N This part replaces 45191-49000-08D.

45191-49001

Unavailable

9

PLATE, SEAT LOWER | N

45191-49000-05L

Unavailable

9

PLATE, SEAT LOWER | CN

45191-49000-08E

Unavailable

10

NUT | N,CN This part replaces 09148-05006.

09148-05012

$1.75

11

PIN | N,CN

09200-06018

$2.06

12

.COTTER PIN | N,CN This part replaces 04111-20158.

04111-2015A

$1.49

13

CUSHION | N,CN

09321-08006

$2.90

14

CUSHION | N,CN

09321-10001

$2.61

15

STRIKER, SEAT LOCK | N,CN

45213-47000

Unavailable

16

.NUT | N,CN This part replaces 08310-11068.

08310-00067

$2.13

17

LOCK WASHER | N,CN This part replaces 08321-21068.

08321-01067

$2.13

18

WASHER | N,CN This part replaces 08322-21068.

08322-01067

$2.13

19

WASHER (6.5X20X1.2) | N,CN; 6.5x70x1.2 This part replaces 09160-06027.

09160-06077

$1.91

20

NO DESCRIPTION AVAILABLE | N This part replaces 45510-49001-08D.

45510-49002

Unavailable

21

TAPE SET | N

68101-49810-66Y

Unavailable

22

NO DESCRIPTION AVAILABLE | N This part replaces 45510-49001-05L.

45510-49002

Unavailable

23

TAPE SET | N

68101-49810-66Z

Unavailable

24

NO DESCRIPTION AVAILABLE | CN This part replaces 45510-49001-08E.

45510-49002

Unavailable

25

TAPE SET | CN

68101-49840-66W

Unavailable

26

MOULDING, SEAT TAIL COVER | N,CN

45522-49000

Unavailable

27

CLIP | N,CN

45523-49000

Unavailable

28

WASHER | N,CN

09169-06016

$1.65

29

.NUT | N,CN This part replaces 08319-21068.

08319-2106A

$1.91

30

REFREX REFLECTOR, REAR SIDE | N,CN

35970-49030

Unavailable

31

WASHER | N,CN This part replaces 08322-21058.

08322-01057

$2.13

32

NUT | N,CN This part replaces 08310-11058.

08310-00057

$1.84

33

SEAT LOCK SET | N,EN

95700-45813

Unavailable

34

SCREW | N,EN This part replaces 02112-05128.

02112-05127

$1.97

35

LOCK WASHER | N,EN This part replaces 08321-21058.

08321-0105A

$1.84

36

SPRING, HALEMER HOLDER | N,EN

95722-45000

Unavailable

37

SCREW | N,EN This part replaces 02112-05088.

02112-05087

$1.49

38

HOLDER, TOOL | N,EN

41550-49000

Unavailable

39

WASHER | N,EN

09169-06011

$3.45

40

.NUT | N,EN This part replaces 08310-11068.

08310-00067

$2.13

41

BAND | N,EN This part replaces 09462-00072.

09462-00094

$3.16

42

TOOL ASSY | N,EN This part replaces 09800-00191.

09800-21068

Unavailable

43

GAUGE, FRONT FORK AIR | N,EN This part replaces 96200-41310.

96200-41330

Unavailable
