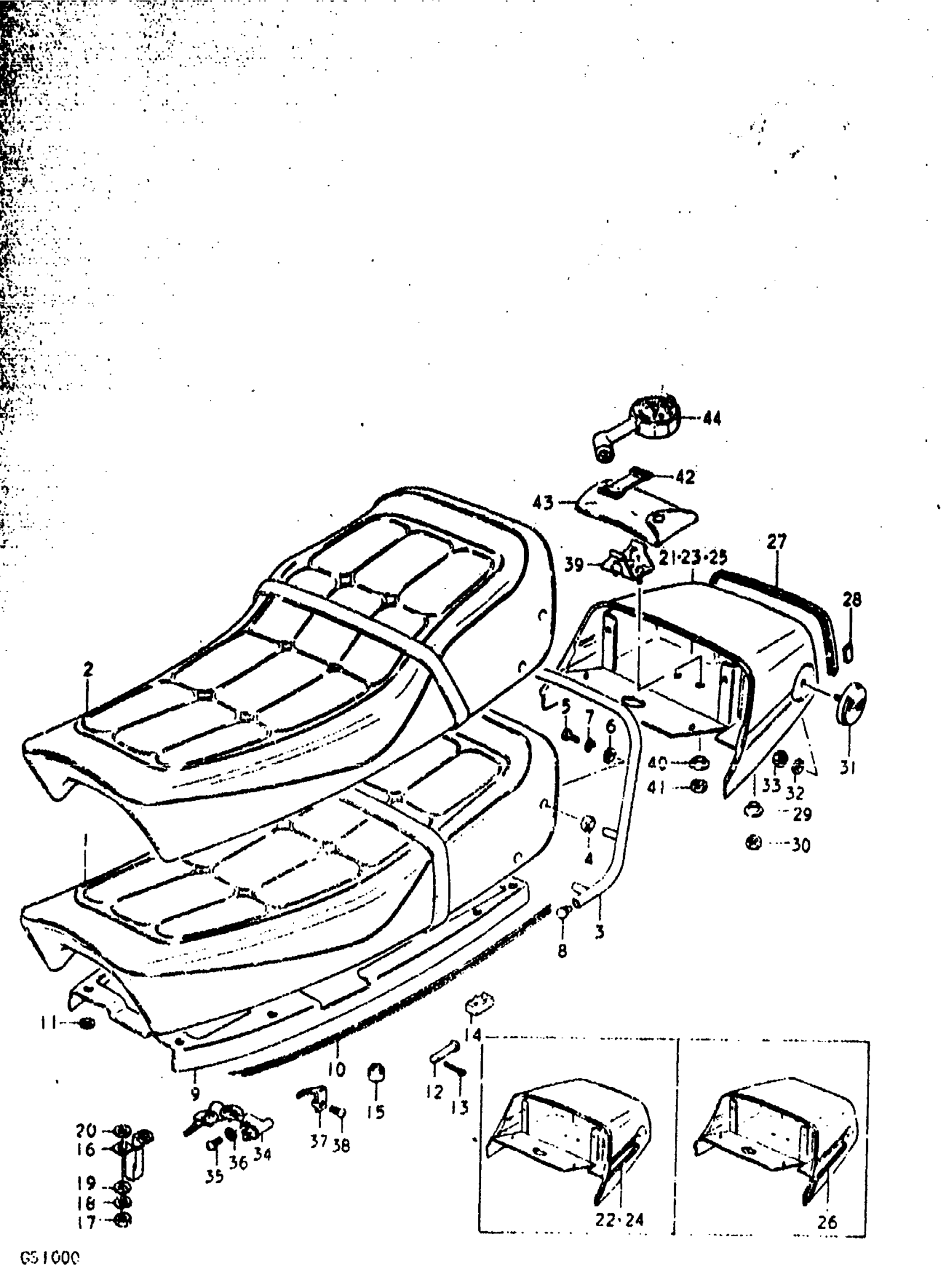

Suzuki GS1000C (1979) SEAT (GS1000C Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | C This part replaces 45100-49010-40P.

45100-49011-40P

Unavailable

2

SEAT (STEP TYPE) | EC; Includes Item(s) 3 - 8 This part replaces 45100-49000-40N.

45100-49002-40P

Unavailable

3

HANDLE, PILLION RIDER | C This part replaces 46211-49010.

46211-49000

Unavailable

3

HANDLE, PILLION RIDER | EC

46211-49000

Unavailable

4

CUSHION | C,EC

46212-49000

Unavailable

5

BOLT, REAR | C,EC This part replaces 01107-08208.

01500-08207

$2.53

6

WASHER | C,EC This part replaces 08322-11088.

08322-01087

$2.13

7

.LOCK WASHER | C,EC This part replaces 08321-21088.

08321-01087

$2.13

8

END, HANDLE | C,EC

46213-49000

Unavailable

9

NO DESCRIPTION AVAILABLE | C This part replaces 45191-49000-05T.

45191-49001

Unavailable

9

PLATE, SEAT LOWER | C

45191-49000-05N

Unavailable

9

NO DESCRIPTION AVAILABLE | EC This part replaces 45191-49000-019.

45191-49001

Unavailable

10

TAPE SET | EC

68100-49880-62F

Unavailable

11

NUT | C,EC This part replaces 09148-05006.

09148-05012

$1.75

12

PIN | C,EC; FROM 09200-06031

09200-06018

$2.06

13

.COTTER PIN | C,EC This part replaces 04111-20158.

04111-2015A

$1.49

14

CUSHION | C,EC

09321-08006

$2.90

15

CUSHION | C,EC

09321-10001

$2.61

16

STRIKER, SEAT LOCK | C,EC

45213-47000

Unavailable

17

.NUT | C,EC This part replaces 08310-11068.

08310-00067

$2.13

18

LOCK WASHER | C,EC This part replaces 08321-21068.

08321-01067

$2.13

19

WASHER | C,EC This part replaces 08322-21068.

08322-01067

$2.13

20

WASHER (6.5X20X1.2) | C,EC; 6.5x20x1.2 This part replaces 09160-06027.

09160-06077

$1.91

21

NO DESCRIPTION AVAILABLE | C This part replaces 45510-49000-05T.

45510-49002

Unavailable

22

TAPE SET | C

68100-49821-03S

Unavailable

23

NO DESCRIPTION AVAILABLE | C This part replaces 45510-49000-05N.

45510-49002

Unavailable

24

TAPE SET | C

68100-49821-05F

Unavailable

25

NO DESCRIPTION AVAILABLE | EC This part replaces 45510-49000-019.

45510-49002

Unavailable

26

TAPE SLT | EC

68100-49870-064

Unavailable

27

MODLDING, SEAT TAIL COVER | C,EC

45522-49000

Unavailable

28

CLIP | C,EC

45523-49000

Unavailable

29

WASHER | C,EC

09169-06016

$1.65

30

.NUT | C,EC This part replaces 08319-21068.

08319-2106A

$1.91

31

RESREX REFLECTOR, REAR SIDE | C,EC

35970-49030

Unavailable

32

WASHER | C,EC This part replaces 08322-21058.

08322-01057

$2.13

33

NUT | C,EC This part replaces 08310-11058.

08310-00057

$1.84

34

LOCK SET, SEAT | C,EC This part replaces 95700-45812.

95700-45813

Unavailable

35

SCREW | C,EC This part replaces 02112-05128.

02112-05127

$1.97

36

LOCK WASHER | C,EC This part replaces 08321-21056.

08321-0105A

$1.84

37

SPRING, HELMET HOLDER | C,EC

95722-45000

Unavailable

38

SCREW | C,EC This part replaces 02112-05088.

02112-05087

$1.49

39

HOLDER, TOOL | C,EC

41550-49000

Unavailable

40

WASHER | C,EC

09169-06011

$3.45

41

.NUT | C,EC This part replaces 08310-11068.

08310-00067

$2.13

42

BAND | C,EC This part replaces 09462-00072.

09462-00094

$3.16

43

TOOL ASSY | C,EC This part replaces 09800-00164.

09800-21068

Unavailable

44

GAUGE, FRONT FORK AIR | C,EC This part replaces 96200-41310.

96200-41330

Unavailable
