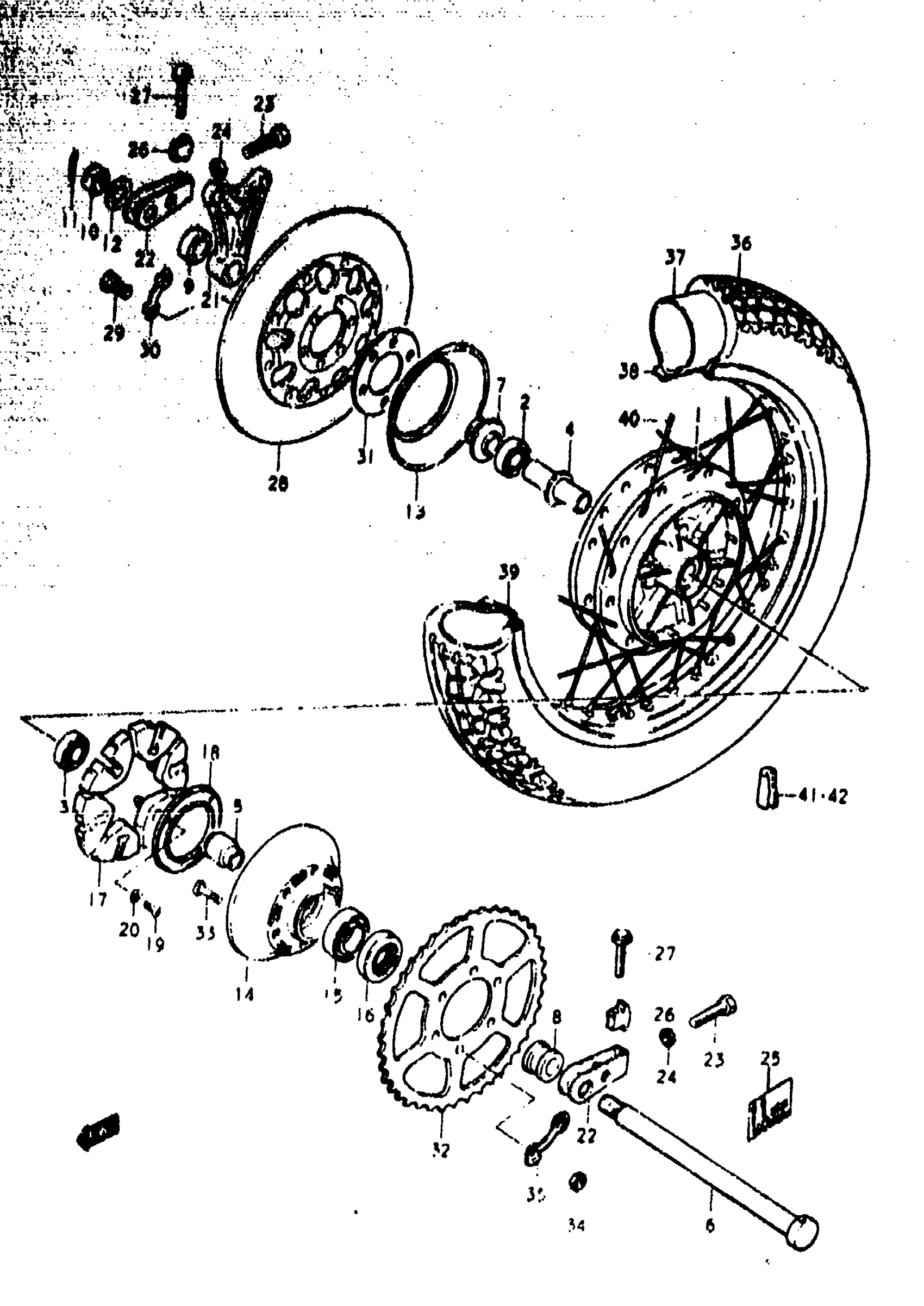

Suzuki GS1000C (1979) REAR WHEEL (GS1000C Diagram

#

Description
Price

1

HUB | C,N

64110-45001

Unavailable

2

BEARING | C This part replaces 08123-62040.

08123-6204B

$17.41

2

BEARING | N This part replaces 08123-62047.

08123-6204B

$17.41

3

BEARING, LH | C This part replaces 08143-62040.

09262-20042

$23.28

3

BEARING, LH | N This part replaces 08143-62047.

09262-20042

$23.28

4

SPACER, BEARING | C,N

64730-45000

Unavailable

5

SPACER,RR HUB B | C,N This part replaces 64733-31000.

64733-3100V

Unavailable

6

AXLE,REAR | C,N This part replaces 64711-49000.

64711-4900V

Unavailable

7

SPACER, RH | C,N

64740-49000

Unavailable

8

SPACER, LH | C,N; 20x33x28.3

09180-20054

Unavailable

9

SPACER, RH | C,N; 20x38x12

09180-20060

Unavailable

10

NUT | C,N This part replaces 08314-31188.

08314-3118A

$5.16

11

PIN, REAR AXLE | C,N This part replaces 04111-40308.

04111-4030A

$1.49

12

WASHER | C,N; 19x34x4

09160-19008

Unavailable

13

COVER, HUB | C,N

64171-45000

Unavailable

14

DRUM, SPROCKET | C,N This part replaces 64611-31000.

64611-31003

Unavailable

15

BEARING, DRUM | C This part replaces 08113-63054.

09262-25073

$25.92

15

BEARING, DRUM | N This part replaces 08113-63057.

09262-25073

$25.92

16

OIL SEAL | C,N

09285-33001

$13.27

17

SHOCK ABSORBER, HUB | C,N This part replaces 64651-31000.

64651-31001

$11.19

18

PLATE, CUSHION | C,N

64671-45000

Unavailable

19

SCREW | C,N This part replaces 02112-05108.

02112-05107

$1.49

20

LOCK WASHER | C,N This part replaces 08321-21058.

08321-0105A

$1.84

21

BRACKET, REAR CALIPERS | C This part replaces 69721-47010.

69721-47011

Unavailable

21

BRACKET, REAR CARIPERS | N

69721-47011

Unavailable

22

ADJUSTER, CHAIN | C,N This part replaces 61410-31000.

61410-31001

$49.02

23

BOLT (8X50) | C,N This part replaces 09104-08006.

09104-08034

$3.04

24

.NUT | C,N This part replaces 08310-12068.

08310-00067

$2.13

25

LABEL, CHAIN WEAR INDICATOR | C,N

68377-49000

Unavailable

26

SUPPORTER,CHAIN | C,N This part replaces 61433-31000.

61433-3100V

Unavailable

27

BOLT | C,N This part replaces 01517-08408.

01550-08407

$3.42

28

NO DESCRIPTION AVAILABLE | C,N This part replaces 59210-18401.

59210-18402

Unavailable

29

BOLT | C,N; 8x40

09100-08147

Unavailable

30

WASHER | C,N

09169-08016

$2.41

31

SHIM, DISK PLATE | C,N

59214-49000

Unavailable

32

SPROCKET,REAR,N | C,N; NT:42 This part replaces 64511-49000.

64511-49002

Unavailable

33

BOLT | C,N This part replaces 09119-10002.

09105-10001

$2.87

34

NUT | C,N This part replaces 08310-12108.

08310-00107

$2.19

35

WASHER | C,N

09169-10007

Unavailable

36

TIRE (4.00V18) | C,N; 4.00-18 This part replaces 65100-49015.

65100-49016

Unavailable

37

TUBE, INNER | C,N; 4.00-18 This part replaces 65200-15011.

65200-49015

Unavailable

38

IN TUBE PROTECT | C,N; 25x10 This part replaces 65261-15010.

55261-26F10

$4.39

39

RIM | C,N; 2.15x18

65311-49000

Unavailable

40

NO DESCRIPTION AVAILABLE | C,N This part replaces 65300-49811.

65300-49812

Unavailable

41

BALANCER WHEEL (15G) | C,N; (0~3) 20G This part replaces 55411-11000.

55411-26G00

$7.73

42

BALANCER WHEEL (30G) | C,N; (0~3) 30G This part replaces 55412-11000.

55413-41F00

$7.50
