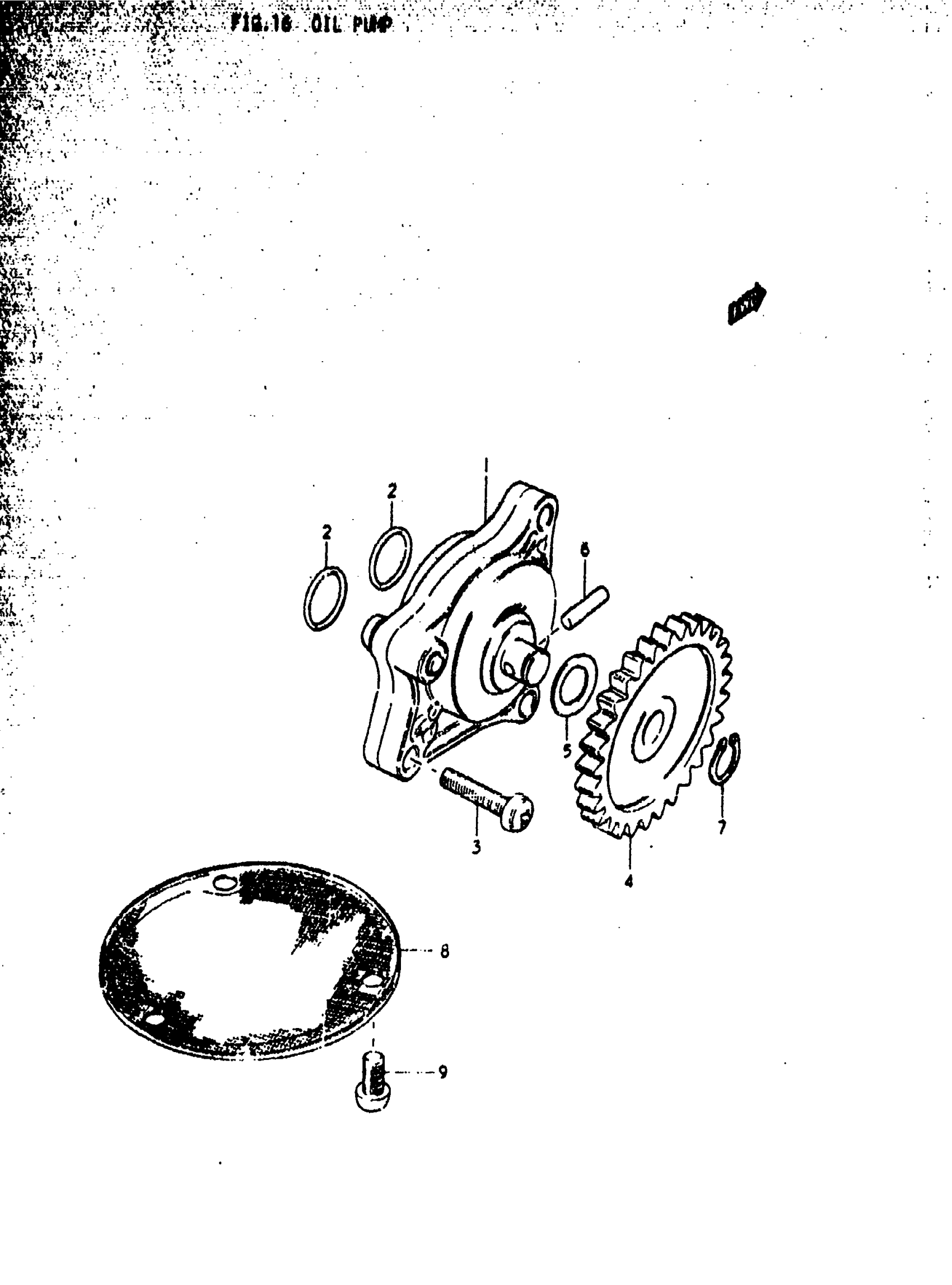

Suzuki GS1000C (1979) OIL PUMP Diagram

#

Description

Price

1

PUMP, ENGINE OIL | C&EC,N&EN This part replaces 16400-49011.

16400-49020

Unavailable

2

O RING | C&EC,N&EN

09280-13004

$2.17

3

SCREW | C&EC,N&EN This part replaces 02112-06258.

02112-06257

$1.78

4

GEAR, OIL PUMP DRIVEN | C&EC; NT:33

16331-49000

Unavailable

4

GEAR, DRIVEN (NT:33) | N&EN; NT:33 This part replaces 16331-49990.

16331-49000

Unavailable

5

WASHER | C&EC,N&EN

08221-10185

$2.15

6

PIN | C&EC,N&EN

09261-04009

$1.56

7

CIRCLIP | C&EC,N&EN

08331-31109

$1.78

8

STRAINER, ENGINE OIL | C&EC,N&EN This part replaces 16520-45000.

16520-45010

Unavailable

9

SCREW | C&EC,N&EN This part replaces 02112-06128.

02112-06127

$1.84
