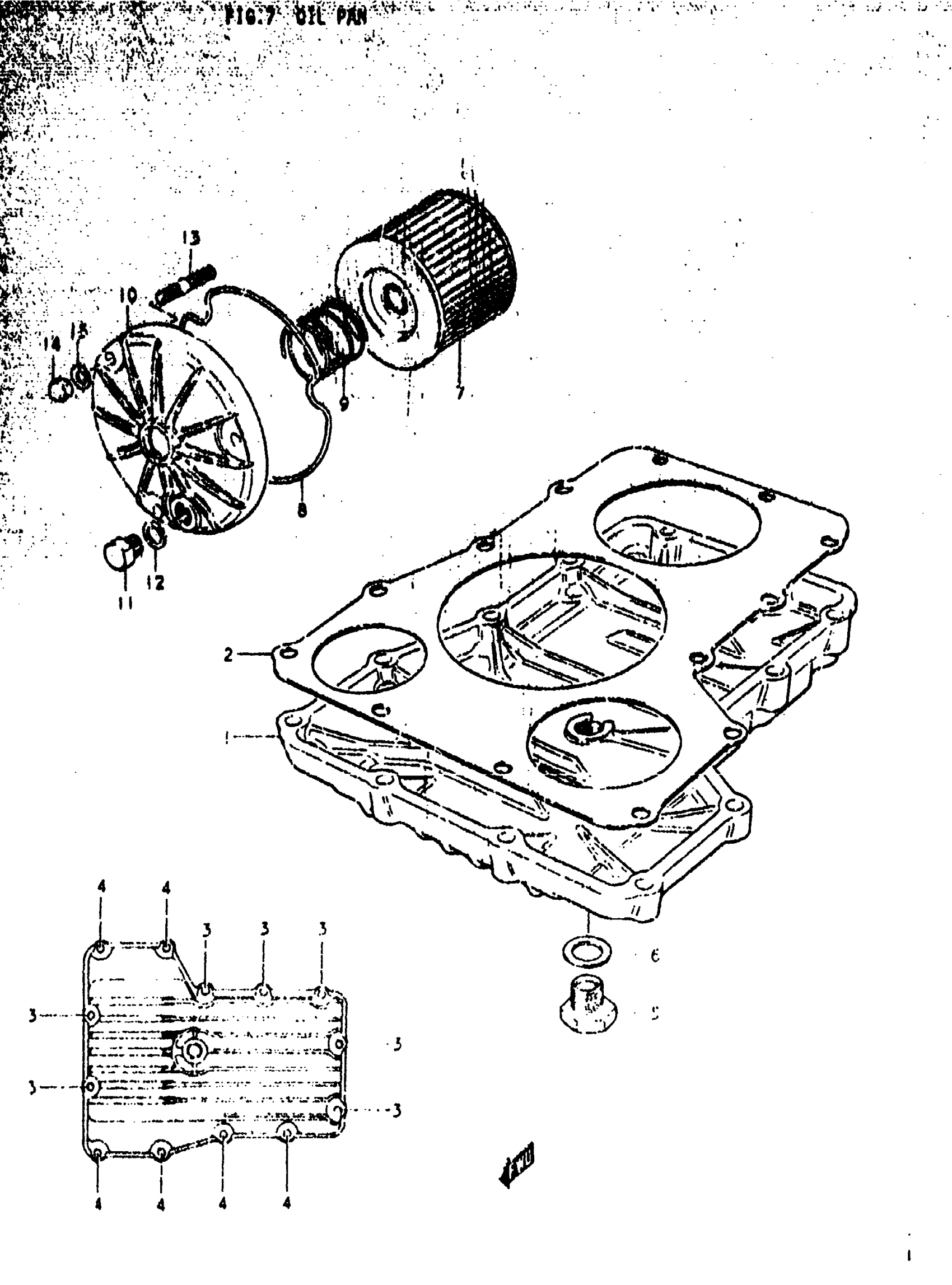

Suzuki GS1000C (1979) OIL PAN Diagram

#

Description
Price

1

PAN, OIL | C&EC,N&EN

11511-45000

Unavailable

2

GASKET,OIL PAN( | C&EC This part replaces 11489-45000.

11489-45001-H17

Unavailable

2

GASKET,OIL PAN( | N&EN This part replaces 11489-45001.

11489-45001-H17

Unavailable

3

BOLT | C&EC,N&EN This part replaces 01517-06308.

01550-06307

$2.69

4

BOLT | C&EC,N&EN This part replaces 01517-06258.

01550-06257

$2.30

5

PLUG (MAGNETO) | C&EC,N&EN This part replaces 09247-14001.

09247-14002

$5.24

6

GASKET | C&EC,N&EN

09168-14004

$1.83

7

FILTER, OIL | C&EC,N&EN

16510-45040

$5.96

8

O RING | C&EC,N&EN

16518-45000

$5.70

9

SPRING | C&EC,N&EN

09440-32004

$2.92

10

CAP, ENGINE OIL FILTER | C&EC This part replaces 16512-45000.

16512-45101

Unavailable

10

CAP, ENGINE OIL FILTER | C&EC,N&EN; NON DRAIN PLUG HOLE This part replaces 16512-45001.

16512-45101

Unavailable

11

PLUG, OIL DRAIN | C&EC

09247-10001

$2.20

12

GASKET | C&EC

09168-10002

$2.13

13

STUD BOLT | C&EC,N&EN This part replaces 01421-06208.

01421-0620A

$1.91

14

NUT, LICENSE HOLDER | C&EC,N&EN This part replaces 08313-11068.

08313-10067

$1.84

15

WASHER | C&EC,N&EN This part replaces 08322-21068.

08322-01067

$2.13
