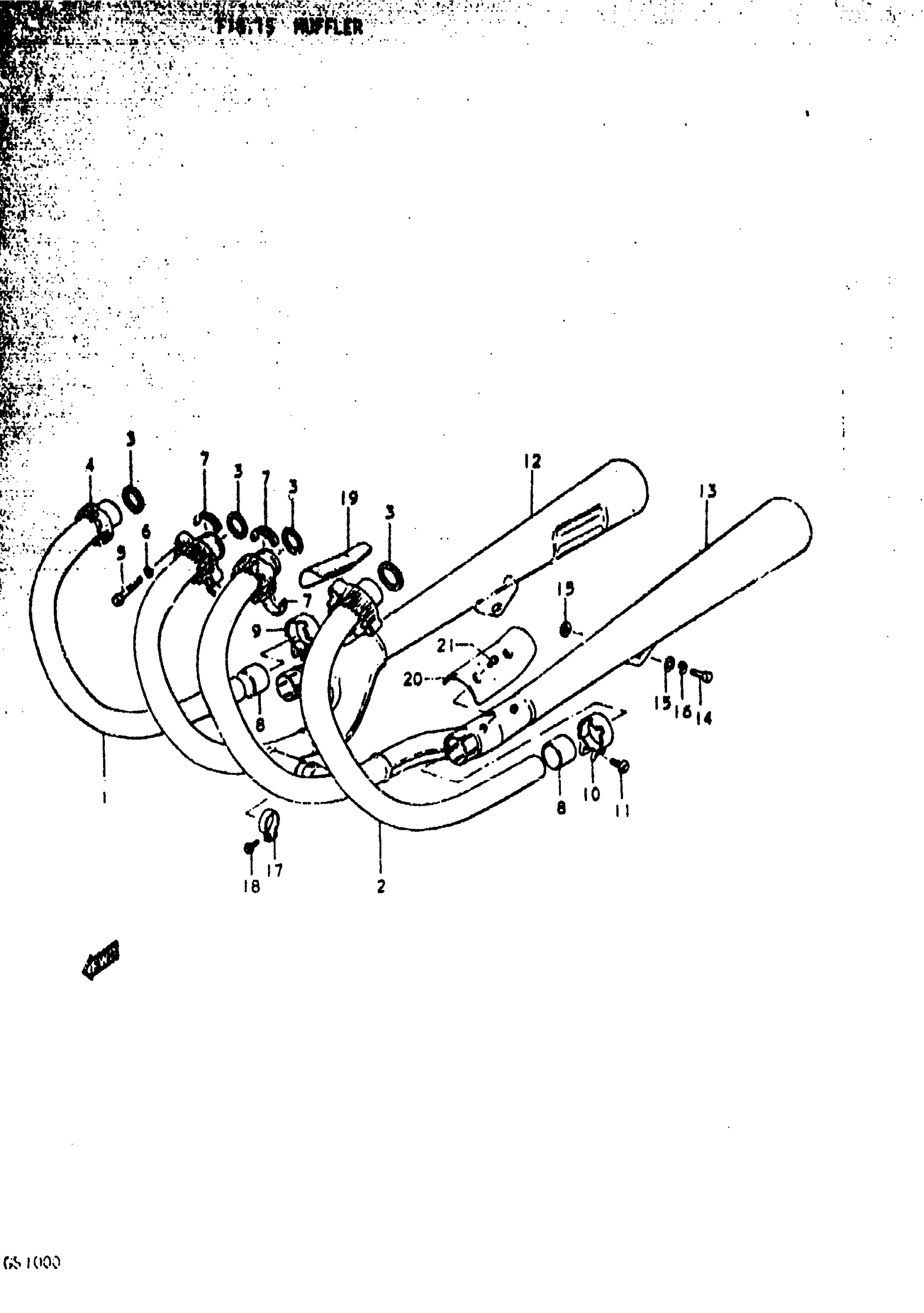

Suzuki GS1000C (1979) MUFFLER Diagram

PIPE, EXHAUST RH | C&EC,N&EN

14150-49000

Unavailable

PIPE, EXHAUST LH | C&EC,N&EN

14160-49000

Unavailable

GASKET, EXHAUST PIPE | C&EC,N&EN This part replaces 14181-11010.

14181-01D00

$7.11

CLAMP | C&EC,N&EN

14182-49000

Unavailable

BOLT | C&EC,N&EN This part replaces 01107-08358.

01500-0835B

$3.04

.LOCK WASHER | C&EC,N&EN This part replaces 08321-21088.

08321-01087

$2.13

PLATE, EXHAUST PIPE | C&EC,N&EN

14155-49000

$5.02

CONNECTOR,MUFFL | C&EC,N&EN This part replaces 14771-49000.

14771-49010

$27.48

CLAMP, CONNECTOR RH | C&EC,N&EN

14459-49000

Unavailable

CLAMP, CONNECTOR LH | C&EC,N&EN

14469-49000

Unavailable

BOLT | C&EC,N&EN This part replaces 01517-08258.

01550-08257

$2.81

NO DESCRIPTION AVAILABLE | C&EC This part replaces 14310-49000.

14305-49001-H01

Unavailable

NO DESCRIPTION AVAILABLE | N&EN This part replaces 14310-49001.

14305-49001-H01

Unavailable

NO DESCRIPTION AVAILABLE | C&EC This part replaces 14340-49000.

14306-49001-H01

Unavailable

NO DESCRIPTION AVAILABLE | N&EN This part replaces 14340-49001.

14306-49001-H01

Unavailable

BOLT | C&EC,N&EN This part replaces 01107-10308.

01500-1030A

$3.16

WASHER | C&EC,N&EN; 8.5x20x1.6 This part replaces 08322-21108.

08322-01107

$2.15

LOCK WASHER | C&EC,N&EN This part replaces 08321-21108.

08321-01107

$1.84

CLAMP, EXHAUST COUPLLER | C&EC,N&EN

09402-37601

Unavailable

BOLT | C&EC,N&EN This part replaces 01517-06258.

01550-06257

$2.30

COVER, MUFFLER RH | C&EC,N&EN

14781-49000

Unavailable

COVER, MUFFLER LH | C&EC,N&EN

14791-49000

Unavailable

SCREW | C&EC,N&EN This part replaces 02112-05068.

09125-05122

$2.06
