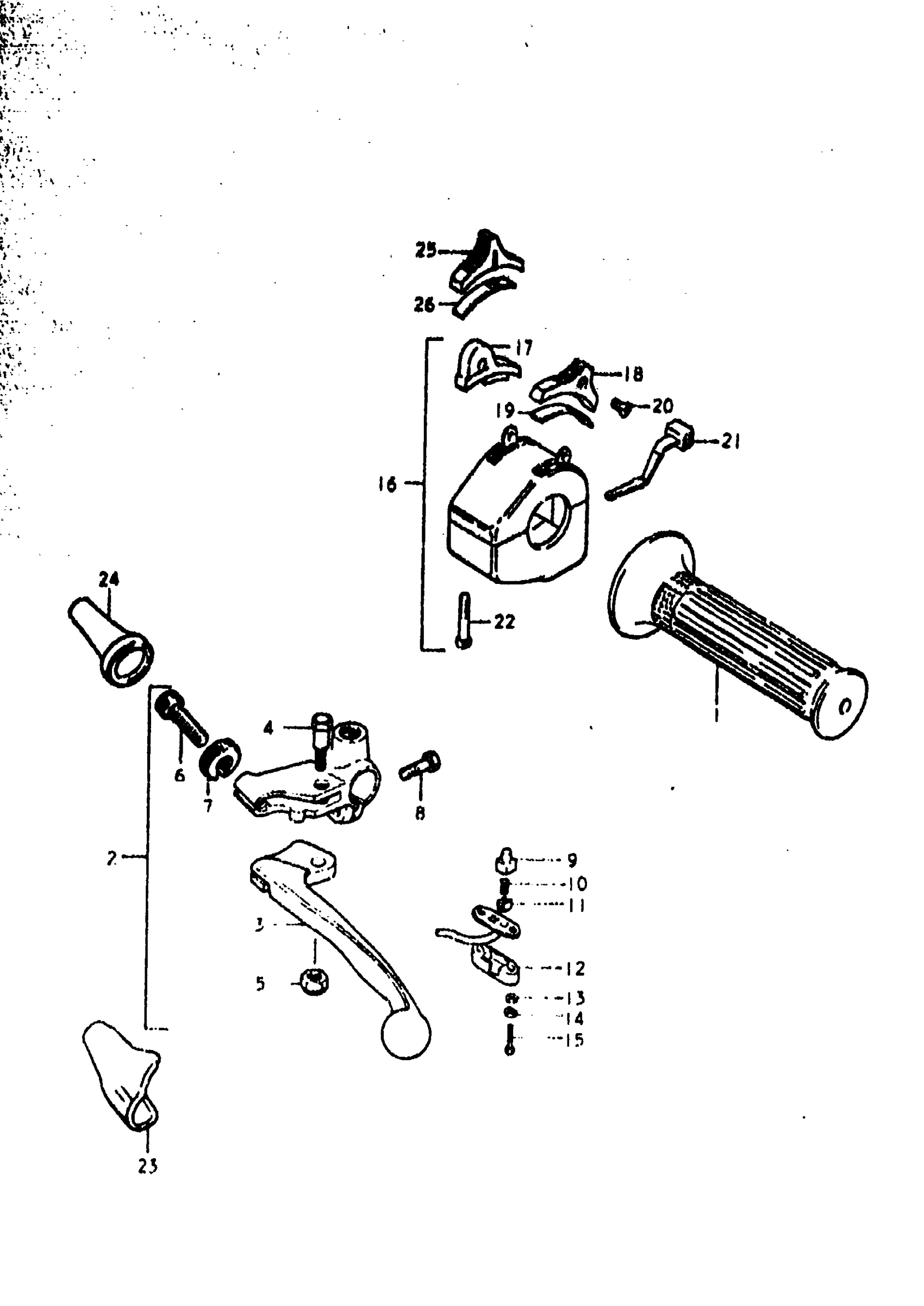

Suzuki GS1000C (1979) LH HANDLE SWITCH (GS1000N Diagram

#

Description
Price

1

GRIP, LH | N,EN This part replaces 57211-45010.

57211-49510

Unavailable

2

LEVER ASSY, CLUTCH | N,EN; Includes Item(s) 3 - 15

57500-44000

Unavailable

3

LEVER, CLUTCH | N,EN

57620-44000

$32.32

4

BOLT | N,EN This part replaces 57431-11010.

57431-11013

$5.95

5

.NUT | N,EN This part replaces 08319-21068.

08319-2106A

$1.89

6

ADJUSTER, CABLE | N,EN

57441-11010

$5.14

7

NUT | N,EN

57442-11010

$2.80

8

BOLT | N,EN This part replaces 01107-06208.

01500-06207

$1.99

9

HOLDER | N,EN This part replaces 57461-18600.

57465-18601

$3.97

10

HOLDER | N,EN This part replaces 57462-18600.

57465-18601

$3.97

11

HOLDER | N,EN This part replaces 57463-18600.

57465-18601

$3.97

12

COVER | N,EN

57481-33010

$5.50

13

WASHER | N,EN This part replaces 08322-21038.

08322-01037

$1.95

14

WASHER,LOCK | N,EN This part replaces 08321-21038.

09162-03001

$1.18

15

SCREW | N,EN This part replaces 09125-03105.

09125-03105-XC0

$2.08

16

SWITCH ASSY, HANDLE LH # | N

37400-49040

Unavailable

16

SWITCH ASSY, HANDLE LH | EN; FOR AUTO-CANCEL; Includes Item(s) 17 - 22 This part replaces 37400-49010.

37400-49011

Unavailable

17

KNOB, STOPPER | N,EN

57718-36630

Unavailable

18

KNOB, LIGHTING | N,EN This part replaces 57713-33010.

57713-33011

$4.93

18

KNOB, DIMMER SWITCH | EN

57713-34012

Unavailable

19

SPRING | N

57714-33010

$2.80

19

SPRING | EN

57715-34012

Unavailable

20

SCREW | N,EN

03121-03068

$1.63

21

KNOB, TURN SIGNAL LAMP SWITCH | N,EN

57650-33013

Unavailable

22

SCREW,5X22 | N,EN This part replaces 09125-05105.

09125-05105-XC0

$4.45

23

COVER, CLUTCH LEVER | N,EN

57661-31000

$6.83

24

BOOT, CLUTCH CABLE | N,EN This part replaces 58273-31000.

58273-31001

$2.40

25

KNOB,HANDLE SWI | N,EN; O~T This part replaces 57712-33011.

57712-33012

$6.95

26

SPRING | N,EN; O~T

57714-33010

$2.80
