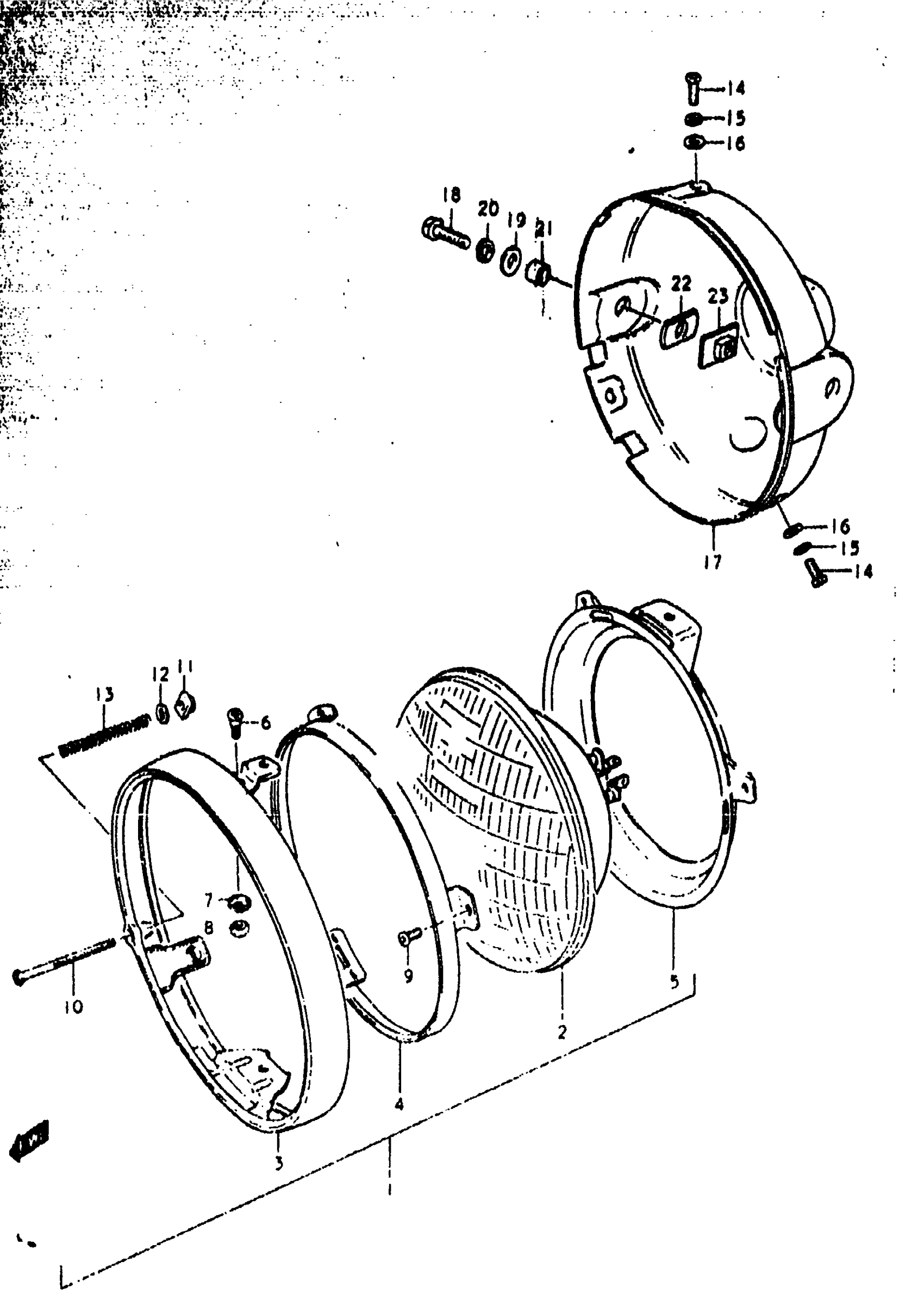

Suzuki GS1000C (1979) HEADLAMP (GS1000C) Diagram

#

Description
Price

1

HEADLAMP ASSY | Includes Item(s) 2 - 13

35100-45601

Unavailable

2

UNIT | 12V, 50/35W

35121-45601

Unavailable

3

RIM

35111-45600

Unavailable

4

RETAINER

35127-45600

$38.46

5

RING, MOUNTING

35130-45600

Unavailable

6

SCREW,HEAD LAMP This part replaces 35136-25611.

35136-35400

$4.58

7

SPACER

35133-45600

Unavailable

8

NUT This part replaces 35135-25611.

08316-1005A

$2.19

9

SCREW This part replaces 02112-03088.

02112-0308A

$1.80

10

SCREW This part replaces 35151-27630.

35151-45230

Unavailable

11

NUT

35135-45600

$3.65

12

WASHER

35157-27630

$3.25

13

SPRING

35154-45600

Unavailable

14

SCREW This part replaces 09125-05022.

09125-05115

$3.20

15

WASHER This part replaces 09162-05003.

09162-05002

$1.49

16

WASHER

09169-06021

$2.36

17

HOUSING, HENDLAMP

51811-45002-291

Unavailable

18

BOLT

01204-08257

$1.96

19

WASHER This part replaces 08322-11088.

08322-01087

$2.13

20

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

21

SPACER | 8x15.2x7 This part replaces 09180-08030.

09180-08187

$2.65

22

CUSHION This part replaces 09329-12002.

09329-12005

$2.32

23

PLATE

51860-45000

$4.43
